Side Trim (Luggage Compartment)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Side Trim (Luggage Compartment)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR093431 BOLT AND WASHER - TORX HEAD $2.38 To Order
Photo Part No Description Price (each) Stock
LR013135 CLIP - TRIM $1.75 IN STOCK
LR013135 CLIP - TRIM $1.75 IN STOCK
LR013135 CLIP - TRIM $1.75 IN STOCK
Photo Part No Description Price (each) Stock
LR000891 PIN - FASTENING $0.62 To Order
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $3.08 IN STOCK
Photo Part No Description Price (each) Stock
RYG501590 SCREW $0.99 IN STOCK
Photo Part No Description Price (each) Stock
LR005896 RETAINER - RIVET $1.46 IN STOCK
Photo Part No Description Price (each) Stock
LR093838 SUPPORT - LOAD COMPARTMENT PANELS $87.02 To Order
LR093839 SUPPORT - LOAD COMPARTMENT PANELS $83.83 To Order
LR111508 SUPPORT - LOAD COMPARTMENT PANELS $87.02 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR093831 PANEL - LOAD COMPARTMENT TRIM $374.28 To Order
LR093832 PANEL - LOAD COMPARTMENT TRIM $374.28 To Order
LR093835 PANEL - LOAD COMPARTMENT TRIM $374.28 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR093833 PANEL - LOAD COMPARTMENT TRIM $330.63 To Order
LR093834 PANEL - LOAD COMPARTMENT TRIM $337.22 To Order
LR093836 PANEL - LOAD COMPARTMENT TRIM $337.22 To Order
...and 5 more part variants. See table on right for more details.
View All

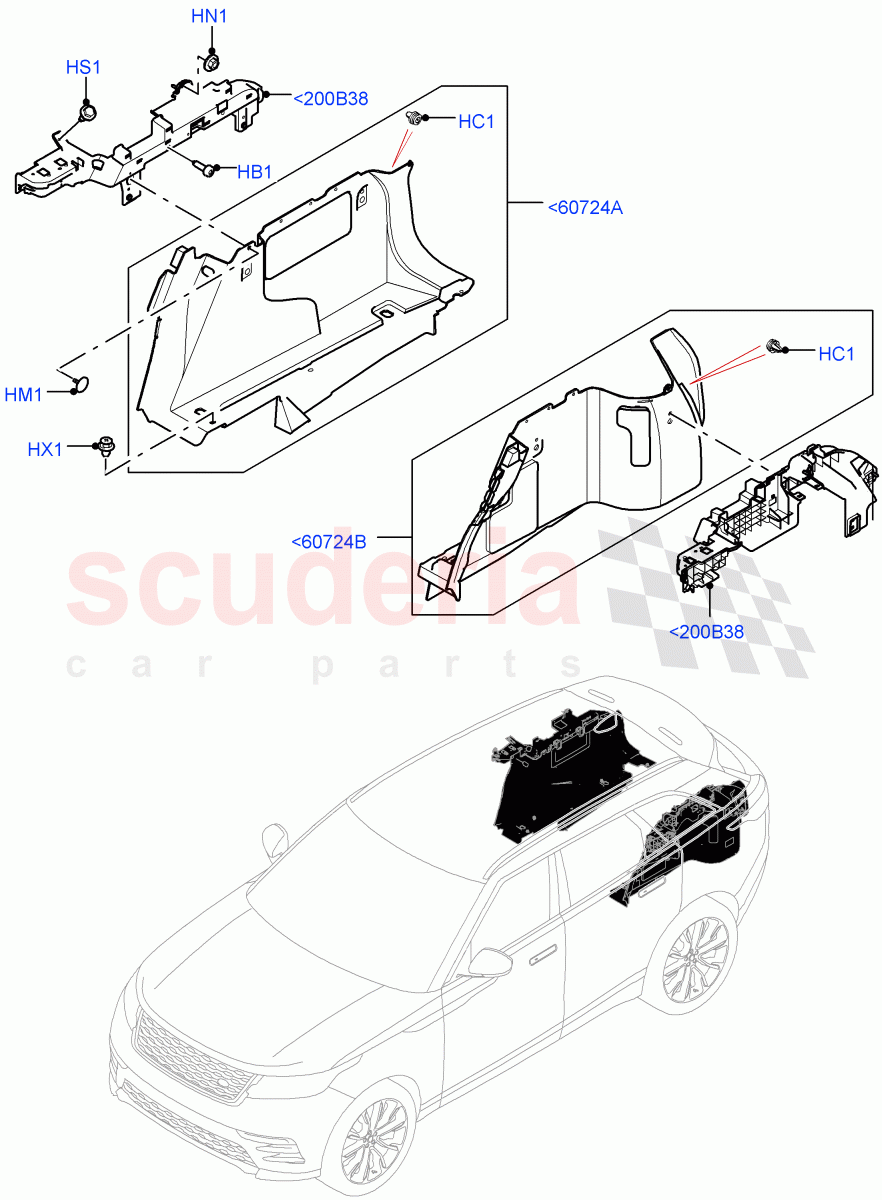

Side Trim (Luggage Compartment) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<200B38 LR093838
SUPPORT - LOAD COMPARTMENT PANELS
RH / To: JA762285 		$87.02 1
<200B38 LR093839
SUPPORT - LOAD COMPARTMENT PANELS
LH / To: JA762285 		$83.83 1
<200B38 LR111508
SUPPORT - LOAD COMPARTMENT PANELS
RH / From: JA762286 / To: KA228453 		$87.02 1
<200B38 LR111509
SUPPORT - LOAD COMPARTMENT PANELS
LH / From: JA762286 		$87.02 1
<200B38 LR128563
SUPPORT - LOAD COMPARTMENT PANELS
RH / From: KA228454 		$83.88 1
<60724A LR093831
PANEL - LOAD COMPARTMENT TRIM
Instant Mobility System - High, Less Load Retainer Luggage / RH / To: KA999999 		$374.28 1
<60724A LR093832
PANEL - LOAD COMPARTMENT TRIM
Less Load Retainer Luggage, Spare Wheel - Conventional Alloy / RH / To: JA999999 		$374.28 1
<60724A LR093835
PANEL - LOAD COMPARTMENT TRIM
Load Retainer Luggage Rails / RH / To: KA999999 		$374.28 1
<60724A LR093832
PANEL - LOAD COMPARTMENT TRIM
21" Full Size Spare Wheel, Less Load Retainer Luggage / RH / From: KA000001 / To: KA999999 		$374.28 1
<60724A LR093831
PANEL - LOAD COMPARTMENT TRIM
Spare Wheel - Reduced Section Steel / RH / From: LA000001 / To: LA999999 		$374.28 1
<60724A LR093832
PANEL - LOAD COMPARTMENT TRIM
21" Full Size Spare Wheel / RH / From: LA000001 / To: LA999999 		$374.28 1
<60724A LR140888
TRIM - LOAD COMPARTMENT - SIDE
Less Electric Engine Battery / RH / From: MA000001 		$315.74 1
<60724A LR140890
TRIM - LOAD COMPARTMENT - SIDE
Electric Engine Battery-PHEV / RH / From: MA000001 		$334.85 1
<60724B LR093833
PANEL - LOAD COMPARTMENT TRIM
Less Load Retainer Luggage, Spare Wheel - Reduced Section Steel / LH / To: KA999999 		$330.63 1
<60724B LR093834
PANEL - LOAD COMPARTMENT TRIM
Less Load Retainer Luggage, Spare Wheel - Conventional Alloy / LH / To: JA999999 		$337.22 1
<60724B LR093836
PANEL - LOAD COMPARTMENT TRIM
Load Retainer Luggage Rails / LH / To: KA999999 		$337.22 1
<60724B LR093834
PANEL - LOAD COMPARTMENT TRIM
20" Full Size Spare Wheel, Less Load Retainer Luggage / LH / From: KA000001 / To: KA999999 		$337.22 1
<60724B LR093833
PANEL - LOAD COMPARTMENT TRIM
Instant Mobility System - High / LH / From: LA000001 / To: LA999999 		$330.63 1
<60724B LR093834
PANEL - LOAD COMPARTMENT TRIM
19" Full Size Spare Wheel / LH / From: LA000001 / To: LA999999 		$337.22 1
<60724B LR140891
TRIM - LOAD COMPARTMENT - SIDE
Less Electric Engine Battery / LH / From: MA000001 		$334.85 1
<60724B LR140892
TRIM - LOAD COMPARTMENT - SIDE
Electric Engine Battery-PHEV / LH / From: MA000001 		$334.85 1
HB1 LR093431
BOLT AND WASHER - TORX HEAD
M6 X 20.5 		$2.38 4
HC1 LR013135
CLIP - TRIM
Load Retainer Luggage Rails / 8.5 X 0.8 - 2.2, Load Compartment Trim / To: KA999999
IN STOCK 		$1.75 12
HC1 LR013135
CLIP - TRIM
Spare Wheel - Reduced Section Steel / 8.5 X 0.8 - 2.2, Load Compartment Trim / From: LA000001 / To: LA999999
IN STOCK 		$1.75 12
HC1 LR013135
CLIP - TRIM
8.5 X 0.8 - 2.2, Load Compartment Trim / From: MA000001
IN STOCK 		$1.75 4
HM1 LR000891
PIN - FASTENING
15 X 6, Load Compartment Panels, Pin, Support 		$0.62 10
HN1 RYH500310
NUT AND WASHER - HEX.
Hexagonal Head, Load Compartment Panels, M6, Nut And Washer, Support
IN STOCK 		$3.08 11
HS1 RYG501590
SCREW
Hexagonal Head, M6 X 20MM
IN STOCK 		$0.99 2
HX1 LR005896
RETAINER - RIVET
10 X 4 - 5, Load Compartment Trim
IN STOCK 		$1.46 6
