Front Brake Discs And Calipers (Version - Core, Version - R-Dynamic)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Front Brake Discs And Calipers (Version - Core, Version - R-Dynamic)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR002080 BOLT $3.20 IN STOCK
LR139520 BOLT $1.72 To Order
Photo Part No Description Price (each) Stock
LR097381 BOLT $3.53 To Order
Photo Part No Description Price (each) Stock
RYP500920 SCREW $0.75 IN STOCK
RYP500920 SCREW $0.75 IN STOCK
Photo Part No Description Price (each) Stock
LR090684 DISC - BRAKE $177.65 To Order
LR090685 DISC - BRAKE $163.45 IN STOCK
LR125902 DISC - BRAKE $198.47 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR090689 BRAKE PADS - LESS SPRINGS $203.08 To Order
LR160444 BRAKE PADS - LESS SPRINGS $207.98 To Order
LR111385 KIT - BRAKE LINING $391.50 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR061377 SCREW - BLEED $13.51 To Order
Photo Part No Description Price (each) Stock
LR090821 GREASE - CHASSIS LUBRICATION $8.34 To Order
Photo Part No Description Price (each) Stock
LR090688 CALIPER - BRAKE $212.40 To Order
LR064683 CALIPER - BRAKE - LESS PADS $205.21 To Order
LR090691 CALIPER - BRAKE $220.49 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR061374 SPRING - BRAKE CALIPER $11.70 IN STOCK
LR064686 SPRING - BRAKE CALIPER $19.37 To Order
LR064686 SPRING - BRAKE CALIPER $19.37 To Order
Photo Part No Description Price (each) Stock
LR090687 BRACKET - BRAKE CALIPER $195.16 To Order
LR090690 BRACKET - BRAKE CALIPER $191.72 To Order
LR156348 BRACKET - BRAKE CALIPER $222.62 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR090694 SHIELD - BRAKE DISC SPLASH $91.23 To Order
LR090696 SHIELD - BRAKE DISC SPLASH $92.54 To Order
LR090693 SHIELD - BRAKE DISC SPLASH $91.23 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR027312 CAP - BLEED SCREW $1.32 IN STOCK
Photo Part No Description Price (each) Stock
LR061375 KIT - RETAINING PIN $26.38 IN STOCK
Photo Part No Description Price (each) Stock
LR061376 KIT - BUSH $29.23 To Order
Photo Part No Description Price (each) Stock
LR090683 WIRE - BRAKE PAD WEAR WARNING $40.84 IN STOCK
LR090683 WIRE - BRAKE PAD WEAR WARNING $40.84 IN STOCK
LR141742 WIRE - BRAKE PAD WEAR WARNING $38.89 To Order
Photo Part No Description Price (each) Stock
LR083648 CAP - PROTECTIVE $44.45 To Order
Photo Part No Description Price (each) Stock
LR090692 BRACKET - WIRING $38.50 To Order
Photo Part No Description Price (each) Stock
LR090698 BRACKET - WIRING $8.40 To Order
View All

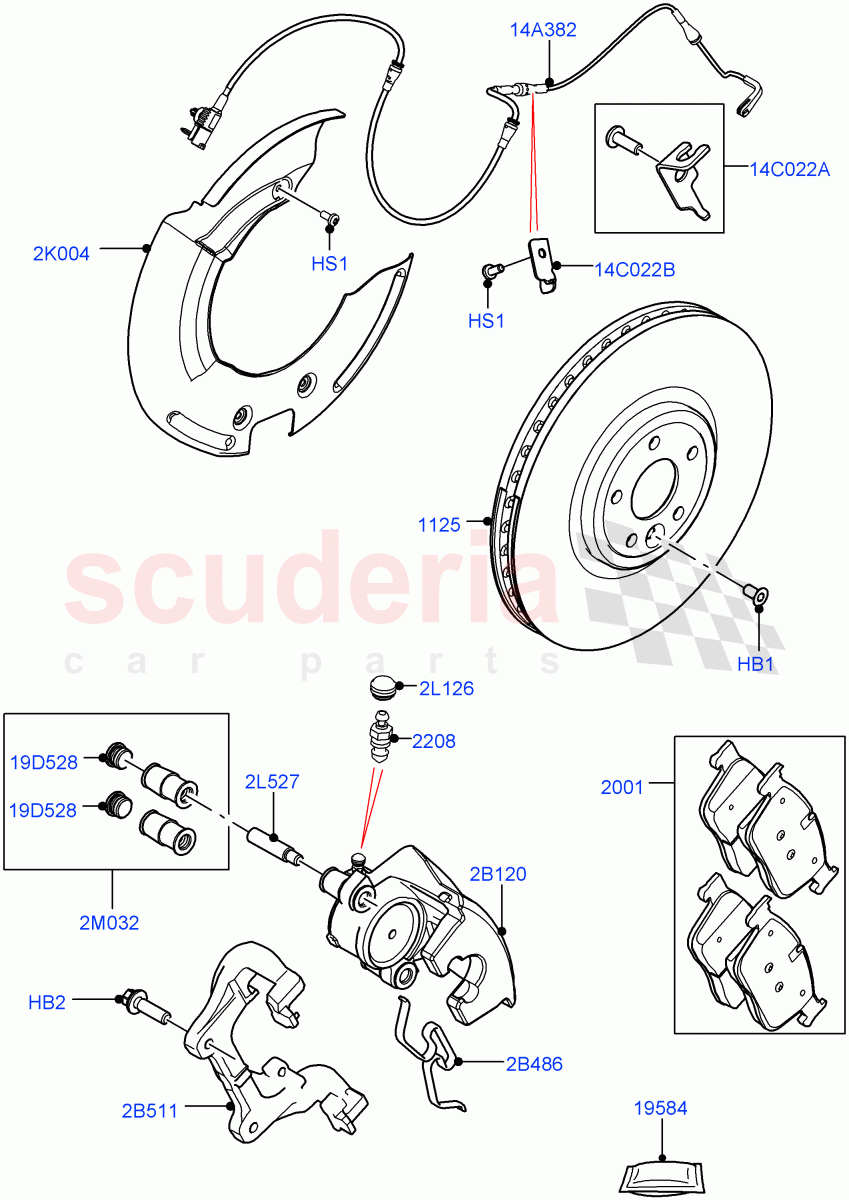

Front Brake Discs And Calipers (Version - Core, Version - R-Dynamic) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR002080
BOLT
M10 X 20MM, Torx / To: LA999999
IN STOCK 		$3.20 2
HB1 LR139520
BOLT
M8 X 12, Torx / From: MA000001 		$1.72 2
HB2 LR097381
BOLT
M14 X 43mm 		$3.53 4
HS1 RYP500920
SCREW
M6 X 14MM, Shield, Torx
IN STOCK 		$0.75 6
HS1 RYP500920
SCREW
Bracket Clamp, M6 X 14MM, Torx
IN STOCK 		$0.75 1
2B120 LR090688
CALIPER - BRAKE
Front Disc And Caliper Size 17 / RH Front / To: LA999999 		$212.40 1
2B120 LR064683
CALIPER - BRAKE - LESS PADS
Front Disc And Caliper Size 18 / RH Front / To: LA999999 		$205.21 1
2B120 LR090691
CALIPER - BRAKE
Front Disc And Caliper Size 17 / LH Front / To: LA999999 		$220.49 1
2B120 LR064684
CALIPER - BRAKE - LESS PADS
Front Disc And Caliper Size 18 / LH Front / To: LA999999 		$215.82 1
2B120 LR150625
CALIPER - BRAKE
Disc And Caliper Size-Frt 19/RR 17 / LH Front / From: MA000001 		$570.07 1
2B120 LR150624
CALIPER - BRAKE - LESS PADS
Disc And Caliper Size-Frt 19/RR 17 / RH Front / From: MA000001 		$570.07 1

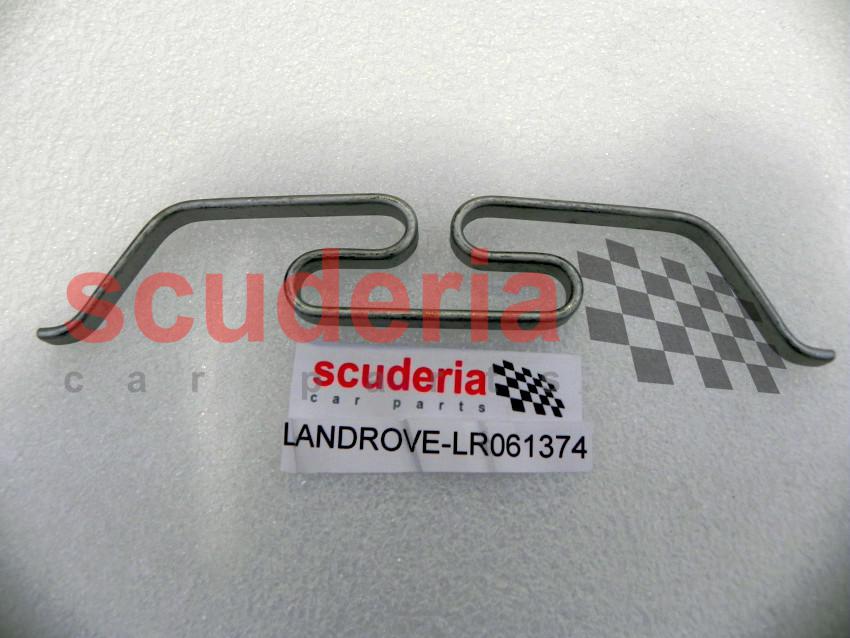

2B486 LR061374
SPRING - BRAKE CALIPER
Front Disc And Caliper Size 17 / To: LA999999
IN STOCK 		$11.70 2
2B486 LR064686
SPRING - BRAKE CALIPER
Front Disc And Caliper Size 18 / To: LA999999 		$19.37 2
2B486 LR064686
SPRING - BRAKE CALIPER
From: MA000001 		$19.37 2
2B511 LR090687
BRACKET - BRAKE CALIPER
Front Disc And Caliper Size 17 / RH/LH / To: LA999999 		$195.16 2
2B511 LR090690
BRACKET - BRAKE CALIPER
Front Disc And Caliper Size 18 / RH/LH / To: LA999999 		$191.72 2
2B511 LR156348
BRACKET - BRAKE CALIPER
Disc And Caliper Size-Frt 19/RR 17 / RH/LH / From: MA000001 		$222.62 2
2B511 LR156132
BRACKET - BRAKE CALIPER
Disc And Caliper Size-Frt 18/RR 17 / RH / From: MA000001 		$222.62 1
2B511 LR150623
BRACKET - BRAKE CALIPER
Disc And Caliper Size-Frt 18/RR 17 / LH / From: MA000001 		$171.10 1
2K004 LR090694
SHIELD - BRAKE DISC SPLASH
Front Disc And Caliper Size 17 / LH / To: LA999999 		$91.23 1
2K004 LR090696
SHIELD - BRAKE DISC SPLASH
Front Disc And Caliper Size 18 / LH / To: LA999999 		$92.54 1
2K004 LR090693
SHIELD - BRAKE DISC SPLASH
Front Disc And Caliper Size 17 / RH / To: LA999999 		$91.23 1
2K004 LR090695
SHIELD - BRAKE DISC SPLASH
Front Disc And Caliper Size 18 / RH / To: LA999999 		$92.54 1
2K004 LR090695
SHIELD - BRAKE DISC SPLASH
Disc And Caliper Size-Frt 18/RR 17 / RH / From: MA000001 / To: MA999999 		$92.54 1
2K004 LR090696
SHIELD - BRAKE DISC SPLASH
Disc And Caliper Size-Frt 18/RR 17 / LH / From: MA000001 / To: MA999999 		$92.54 1
2K004 LR149966
SHIELD - BRAKE DISC SPLASH
Disc And Caliper Size-Frt 19/RR 17 / LH / From: MA000001 / To: MA999999 		$233.35 1
2K004 LR149965
SHIELD - BRAKE DISC SPLASH
Disc And Caliper Size-Frt 19/RR 17 / RH / From: MA000001 / To: MA999999 		$233.35 1
2K004 LR161042
SHIELD - BRAKE DISC SPLASH
RH / From: NA000001 		$92.54 1
2K004 LR161043
SHIELD - BRAKE DISC SPLASH
LH / From: NA000001 		$92.54 1
2L126 LR027312
CAP - BLEED SCREW
IN STOCK 		$1.32 2

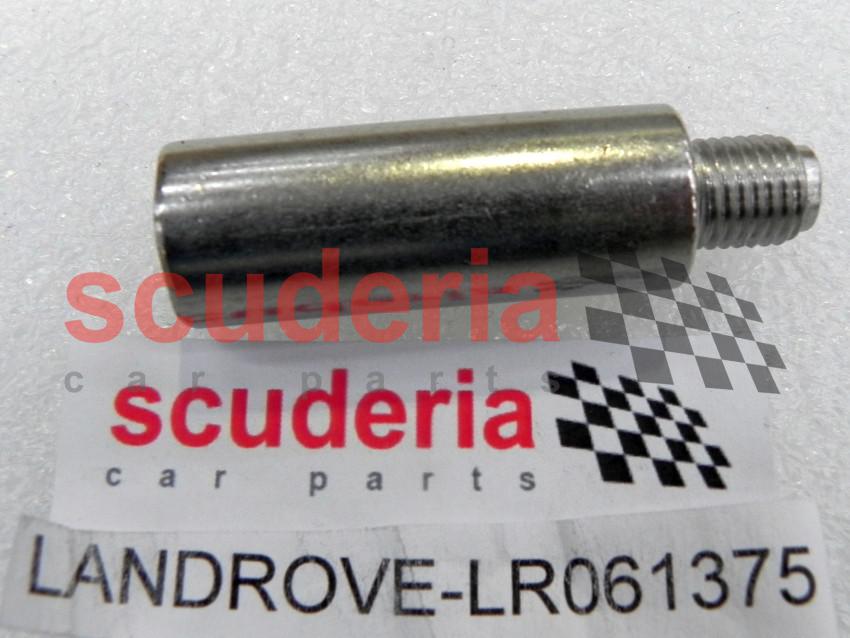

2L527 LR061375
KIT - RETAINING PIN
Pin - Slide
IN STOCK 		$26.38 4
2M032 LR061376
KIT - BUSH 		$29.23 2

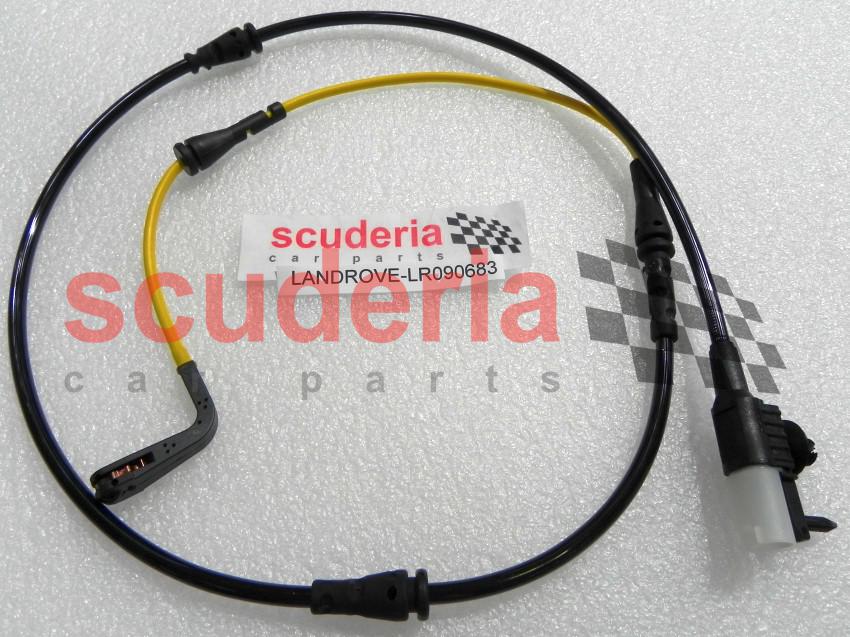

14A382 LR090683
WIRE - BRAKE PAD WEAR WARNING
To: LA999999
IN STOCK 		$40.84 1
14A382 LR090683
WIRE - BRAKE PAD WEAR WARNING
Disc And Caliper Size-Frt 18/RR 17 / From: MA000001
IN STOCK 		$40.84 1
14A382 LR141742
WIRE - BRAKE PAD WEAR WARNING
Disc And Caliper Size-Frt 19/RR 17 / From: MA000001 		$38.89 1
14C022A LR090692
BRACKET - WIRING 		$38.50 1
14C022B LR090698
BRACKET - WIRING 		$8.40 1
19D528 LR083648
CAP - PROTECTIVE 		$44.45 4
1125 LR090684
DISC - BRAKE
Front Disc And Caliper Size 17 / To: KA208211 		$177.65 2

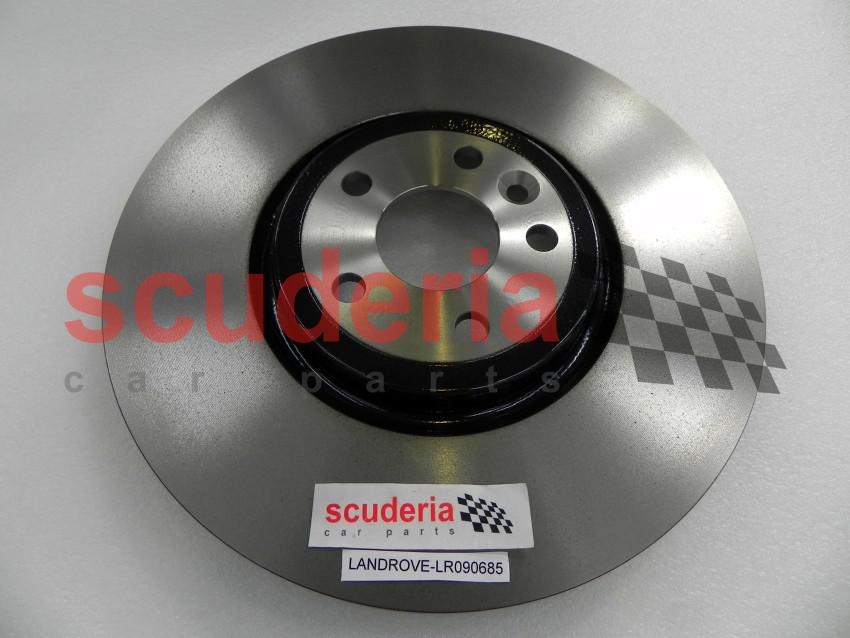

1125 LR090685
DISC - BRAKE
Front Disc And Caliper Size 18 / To: LA999999
IN STOCK 		$163.45 2
1125 LR125902
DISC - BRAKE
Front Disc And Caliper Size 17 / From: KA208212 / To: LA999999 		$198.47 2
1125 LR141754
DISC - BRAKE
Disc And Caliper Size-Frt 19/RR 17 / From: MA000001 / To: MA324992 		$331.13 2
1125 LR141755
DISC - BRAKE
Disc And Caliper Size-Frt 18/RR 17 / From: MA000001 / To: MA318962 		$279.86 2
1125 LR161916
DISC - BRAKE
Disc And Caliper Size-Frt 18/RR 17 / From: MA318963 		$279.86 2
1125 LR161917
DISC - BRAKE
Disc And Caliper Size-Frt 19/RR 17 / From: MA324993 		$331.13 2
2001 LR090689
BRAKE PADS - LESS SPRINGS
Front Disc And Caliper Size 17 / RH/LH / To: LA291858 		$203.08 1
2001 LR160444
BRAKE PADS - LESS SPRINGS
Front Disc And Caliper Size 18 / RH/LH, Standard Performance / To: LA291858 		$207.98 1
2001 LR111385
KIT - BRAKE LINING
Front Disc And Caliper Size 18 / Dealer Fit Only, European Markets Only, High Performance, RH/LH / To: LA999999 		$391.50 1
2001 LR141734
BRAKE PADS - LESS SPRINGS
Disc And Caliper Size-Frt 18/RR 17, Low Copper Frt/Zero Copper Nao RR P / RH/LH, Standard Performance / From: MA000001 / To: MA319517 		$240.06 1
2001 LR137301
BRAKE PADS - WITH SPRINGS
Disc And Caliper Size-Frt 18/RR 17 / Dealer Fit Only, European Markets Only, High Performance, RH/LH / From: MA000001 		$253.29 1
2001 LR150620
BRAKE PADS - LESS SPRINGS
Disc And Caliper Size-Frt 19/RR 17, NA Front Brake Pads/Low Metal Rear / RH/LH / From: MA000001 / To: MA318862 		$224.54 1
2001 LR160438
BRAKE PADS - LESS SPRINGS
Front Disc And Caliper Size 17 / RH/LH / From: LA291859 / To: LA999999 		$198.03 1
2001 LR160444
BRAKE PADS - LESS SPRINGS
Front Disc And Caliper Size 18 / RH/LH, Standard Performance / From: LA291859 / To: LA999999 		$207.98 1
2001 LR160437
BRAKE PADS - LESS SPRINGS
Disc And Caliper Size-Frt 19/RR 17, NA Front Brake Pads/Low Metal Rear / RH/LH / From: MA318863 		$224.54 1
2001 LR160511
BRAKE PADS - LESS SPRINGS
Disc And Caliper Size-Frt 18/RR 17, Low Copper Frt/Zero Copper Nao RR P / RH/LH, Standard Performance / From: MA319518 		$240.06 1
2208 LR061377
SCREW - BLEED
With Cap 		$13.51 2
19584 LR090821
GREASE - CHASSIS LUBRICATION 		$8.34 1
