Front Door Lock Controls

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Front Door Lock Controls

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR038526 BOLT $1.40 To Order
Photo Part No Description Price (each) Stock
LR066254 BOLT AND WASHER - HEX.HEAD $1.87 IN STOCK
Photo Part No Description Price (each) Stock
LR058114 PLUG - BLANKING $8.72 To Order
Photo Part No Description Price (each) Stock
LR036842 PLUG - BLANKING $2.02 To Order
LR124815 PLUG - BLANKING $1.14 To Order
Photo Part No Description Price (each) Stock
LR042467 BOLT $1.93 To Order
Photo Part No Description Price (each) Stock
LR059989 PLUG - BLANKING $5.07 To Order
Photo Part No Description Price (each) Stock
LR172460 RIVET - BLIND $4.48 To Order
Photo Part No Description Price (each) Stock
LR070434 LATCH - FRONT DOOR $180.68 To Order
LR070435 LATCH - FRONT DOOR $169.79 To Order
LR070436 LATCH - FRONT DOOR $188.76 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR086606 STRIKER - DOOR LOCKING MECHANISM $26.38 To Order
Photo Part No Description Price (each) Stock
LR093372 HANDLE - DOOR - OUTER $181.67 To Order
LR093373 HANDLE - DOOR - OUTER $181.67 To Order
LR106951 HANDLE - DOOR - OUTER $143.46 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR124746 SHIELD - DOOR LOCK $27.33 To Order
LR124747 SHIELD - DOOR LOCK $28.62 To Order
Photo Part No Description Price (each) Stock
LR093368 ESCUTCHEON - DOOR LOCK $11.64 To Order
LR093369 ESCUTCHEON - DOOR LOCK $10.89 To Order
Photo Part No Description Price (each) Stock
LR095126 HANDLE - COVER $26.26 To Order
LR095127 HANDLE - COVER $23.59 To Order
LR111380 HANDLE - COVER $25.86 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR093358 CABLE - DOOR LATCH $18.47 To Order
Photo Part No Description Price (each) Stock
LR093359 CABLE - DOOR LATCH $20.34 To Order
Photo Part No Description Price (each) Stock
LR093360 CABLE - DOOR LATCH $21.68 To Order
Photo Part No Description Price (each) Stock
LR070443 COVER - LATCH $36.31 To Order
LR070459 COVER - LATCH $36.31 To Order
Photo Part No Description Price (each) Stock
LR070444 COVER - LATCH $36.31 To Order
LR070460 COVER - LATCH $36.31 To Order
View All

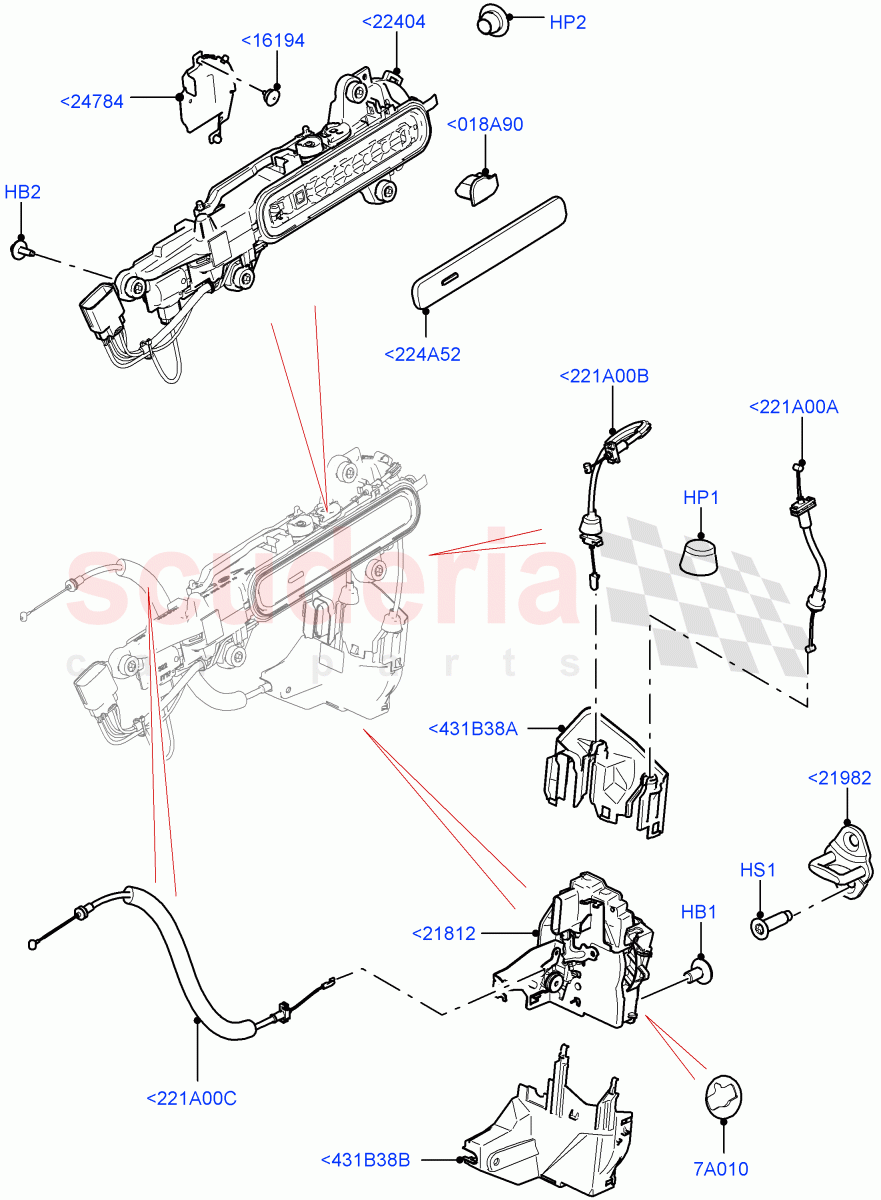

Front Door Lock Controls of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<018A90 LR093368
ESCUTCHEON - DOOR LOCK
LHD / RH 		$11.64 1
<018A90 LR093369
ESCUTCHEON - DOOR LOCK
RHD / LH 		$10.89 1
<221A00A LR093358
CABLE - DOOR LATCH
For Drivers Side, Lock Cylinder To Latch 		$18.47 2
<221A00B LR093359
CABLE - DOOR LATCH
Outside Door Release Handle To Latch, RH/LH 		$20.34 2
<221A00C LR093360
CABLE - DOOR LATCH
Handle, Inner, RH/LH 		$21.68 2
<224A52 LR095126
HANDLE - COVER
RH / To: JA760515 		$26.26 1
<224A52 LR095127
HANDLE - COVER
LH / To: JA760515 		$23.59 1
<224A52 LR111380
HANDLE - COVER
RH / From: JA760516 / To: JA767266 		$25.86 1
<224A52 LR111382
HANDLE - COVER
LH / From: JA760516 / To: JA767266 		$22.24 1
<224A52 LR125209
HANDLE - COVER
RH / From: JA767267 / To: LA241754 		$25.23 1
<224A52 LR135269
HANDLE - COVER
RH / From: LA241755 		$29.48 1
<224A52 LR135273
HANDLE - COVER
LH / From: JA767267 / To: LA241754 		$29.48 1
<224A52 LR135273
HANDLE - COVER
LH / From: LA241755 		$29.48 1
<431B38A LR070443
COVER - LATCH
RH, Upper 		$36.31 1
<431B38A LR070459
COVER - LATCH
LH, Upper 		$36.31 1
<431B38B LR070444
COVER - LATCH
RH, Lower 		$36.31 1
<431B38B LR070460
COVER - LATCH
LH, Lower 		$36.31 1
<16194 LR172460
RIVET - BLIND
4.8 x 15MM, Shield 		$4.48 2
<21812 LR070434
LATCH - FRONT DOOR
Double Locking Power Lock Latch, RHD / RH 		$180.68 1
<21812 LR070435
LATCH - FRONT DOOR
Central Locking Power Lock Latch, RHD / RH 		$169.79 1
<21812 LR070436
LATCH - FRONT DOOR
Double Locking Power Lock Latch, LHD / RH 		$188.76 1
<21812 LR070437
LATCH - FRONT DOOR
Central Locking Power Lock Latch, LHD / RH 		$166.43 1
<21812 LR070438
LATCH - FRONT DOOR
Double Locking Power Lock Latch, LHD / LH 		$181.86 1
<21812 LR070440
LATCH - FRONT DOOR
Central Locking Power Lock Latch, LHD / LH 		$163.59 1
<21812 LR070441
LATCH - FRONT DOOR
Double Locking Power Lock Latch, RHD / LH 		$190.61 1
<21812 LR070442
LATCH - FRONT DOOR
Central Locking Power Lock Latch, RHD / LH 		$152.46 1
<21982 LR086606
STRIKER - DOOR LOCKING MECHANISM
RH/LH 		$26.38 2
<22404 LR093372
HANDLE - DOOR - OUTER
RH / To: JA275190 		$181.67 1
<22404 LR093373
HANDLE - DOOR - OUTER
LH / To: JA275190 		$181.67 1
<22404 LR106951
HANDLE - DOOR - OUTER
RH / From: JA275191 / To: LA253109 		$143.46 1
<22404 LR178958
HANDLE - DOOR - OUTER
LH / From: JA275191 / To: LA253109 		$184.91 1
<22404 LR135300
HANDLE - DOOR - OUTER
RH / From: LA253110 / To: LA285922 		$164.67 1
<22404 LR135309
HANDLE - DOOR - OUTER
LH / From: LA253110 / To: LA285922 		$154.91 1
<22404 LR144887
HANDLE - DOOR - OUTER
LH / From: LA285923 / To: NA330711 		$140.36 1
<22404 LR144883
HANDLE - DOOR - OUTER
RH / From: LA285923 / To: NA330711 		$149.24 1
<22404 LR168642
HANDLE - DOOR - OUTER
RH / From: NA330712 		$168.01 1
<22404 LR168643
HANDLE - DOOR - OUTER
LH / From: NA330712 		$171.23 1
<24784 LR124746
SHIELD - DOOR LOCK
Double Locking Power Lock Latch, RHD / RH 		$27.33 1
<24784 LR124747
SHIELD - DOOR LOCK
Double Locking Power Lock Latch, LHD / LH 		$28.62 1
HB1 LR038526
BOLT
M6 X 11MM 		$1.40 6
HB2 LR066254
BOLT AND WASHER - HEX.HEAD
M6 x 35MM
IN STOCK 		$1.87 8
HP1 LR058114
PLUG - BLANKING
Seal 		$8.72 1
HP2 LR036842
PLUG - BLANKING
Access Hole Cover, On Door, RH/LH / To: KA999999 		$2.02 2
HP2 LR124815
PLUG - BLANKING
Access Hole Cover, M11 X 0.7 - 4, On Door, RH/LH / From: LA000001 		$1.14 4
HS1 LR042467
BOLT
M8 X 25MM 		$1.93 2
7A010 LR059989
PLUG - BLANKING
RH/LH 		$5.07 2
