Name: Front Axle Case ((V) FROMMA000001)
Rating: 4.4 (1 reviews)

View All

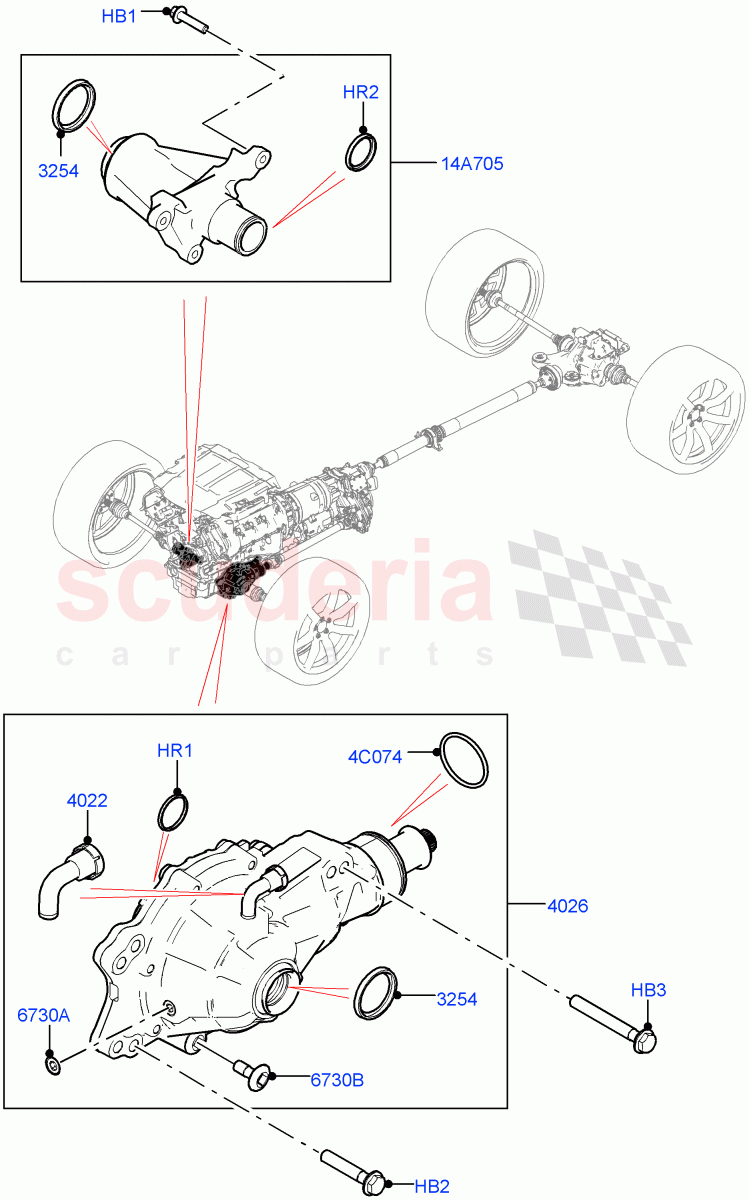

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB108076	BOLT	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093039	BOLT	$3.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093755	BOLT	$5.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092839	SEAL - OIL	$4.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101450	O-RING	$3.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101425	SEAL - OIL	$50.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019450	VALVE - VENT	$21.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106165	KIT - SEAL	$45.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123709	PLUG - OIL DRAIN	$6.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096012	PLUG - OIL	$5.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113963	BRACKET - SUPPORT	$118.07	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FB108076	BOLT	FB108076 BOLT M8 X 35MM / From: MA000001	$0.63	3
HB2	LR093039	BOLT	LR093039 BOLT Bolt And Washer, M12 X 1.5 X 69 / From: MA000001	$3.75	3
HB3	LR093755	BOLT	LR093755 BOLT Bolt And Washer, M12 X 1.5 X 99 / From: MA000001	$5.08	3
HR1	LR092839	SEAL - OIL	LR092839 SEAL - OIL Driveshaft / From: MA000001	$4.44	1
HR2	LR101450	O-RING	LR101450 O-RING Support Bracket / From: MA000001	$3.47	1
4C074	LR106165	KIT - SEAL	LR106165 KIT - SEAL Seal / From: MA000001	$45.57	1
14A705	LR113963	BRACKET - SUPPORT	LR113963 BRACKET - SUPPORT Driveshaft, Support / From: MA000001	$118.07	1
3254	LR101425	SEAL - OIL	LR101425 SEAL - OIL Driveshaft, RH/LH / From: MA000001	$50.16	2
4022	LR019450	VALVE - VENT	LR019450 VALVE - VENT From: MA000001	$21.42	1
4026	LR141867	DIFFERENTIAL - FRONT	LR141867 DIFFERENTIAL - FRONT 2.0L AJ21D4 Diesel Mid / From: MA000001	$2,805.35	1
4026	LR141868	DIFFERENTIAL - FRONT	LR141868 DIFFERENTIAL - FRONT 3.0L AJ20P6 Petrol High / From: MA000001	$2,549.99	1
4026	LR118209	AXLE - FRONT	LR118209 AXLE - FRONT 5.0L P AJ133 DOHC CDA S/C Enhanced / From: MA000001	$2,805.72	1
6730A	LR123709	PLUG - OIL DRAIN	LR123709 PLUG - OIL DRAIN Filler Plug / From: MA000001	$6.84	1
6730B	LR096012	PLUG - OIL	LR096012 PLUG - OIL Plug - Oil Drain / From: MA000001	$5.13	1

Front Axle Case ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]
