Name: Transmission Cooling Systems (2.0L I4 DSL MID DOHC AJ200, 8 Speed Auto Trans ZF 8HP45, 2.0L I4 DSL HIGH DOHC AJ200)
Rating: 4.3 (1 reviews)

Transmission Cooling Systems (2.0L I4 DSL MID DOHC AJ200, 8 Speed Auto Trans ZF 8HP45, 2.0L I4 DSL HIGH DOHC AJ200) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Transmission Cooling Systems (2.0L I4 DSL MID DOHC AJ200, 8 Speed Auto Trans ZF 8HP45, 2.0L I4 DSL...

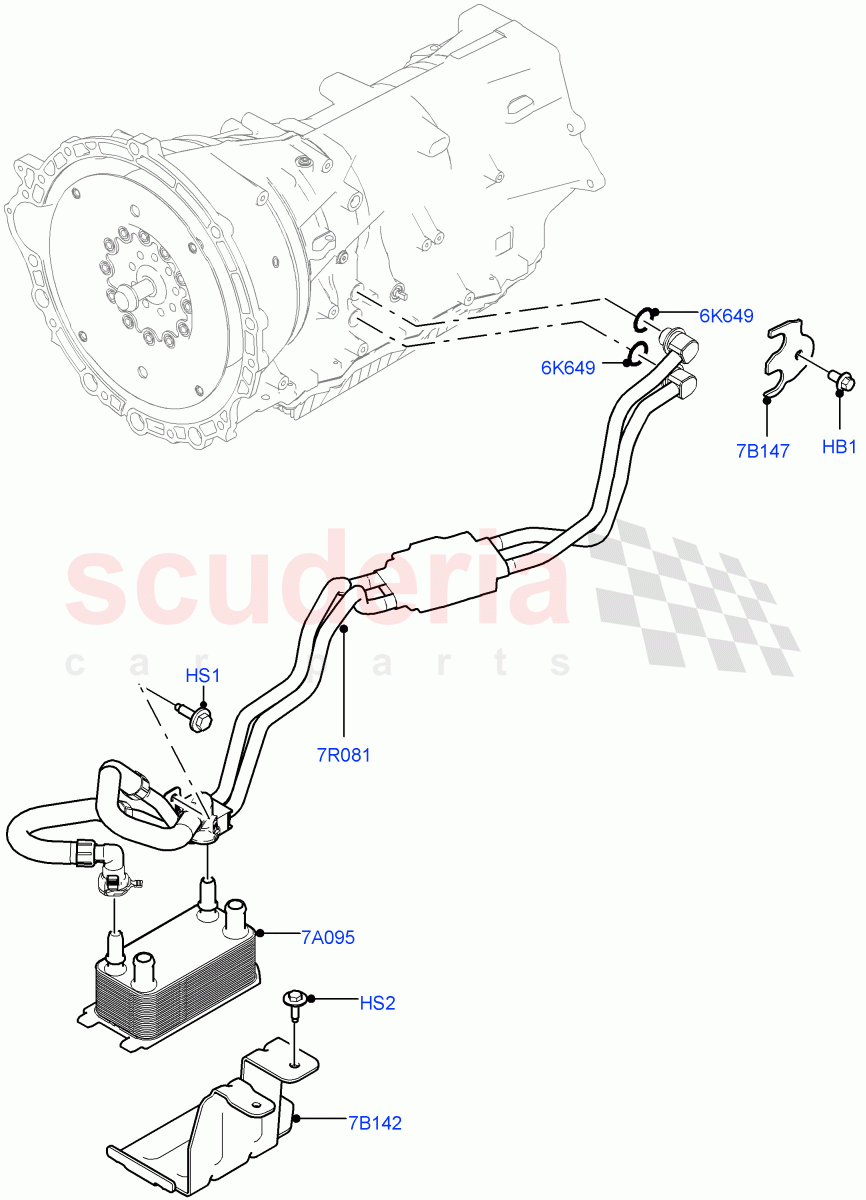

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500160	SCREW	$0.62	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	$0.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR049457	O-RING	$3.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036354	OIL COOLER	$245.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092823	BRACKET - OIL COOLER	$21.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092826	BRACKET - OIL HOSES	$12.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136443	TUBE - OIL COOLER	$413.49	To Order
	LR113362	TUBE - OIL COOLER	$163.57	To Order
	LR136443	TUBE - OIL COOLER	$413.49	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108166	BOLT IN STOCK	FS108166 BOLT Hexagonal Head, M8 X 16MM, To Transmission IN STOCK	$0.68	1
HS1	RYG500160	SCREW	RYG500160 SCREW Hexagonal Head, M6 X 14MM, Tube - Transmission Oil Cooler	$0.62	1
HS2	AYP500110	SCREW IN STOCK	AYP500110 SCREW Bolt And Washer, Bracket, Hexagonal Head, M6 X 20MM IN STOCK	$0.96	3
6K649	LR049457	O-RING	LR049457 O-RING	$3.28	2
7A095	LR036354	OIL COOLER	LR036354 OIL COOLER	$245.65	1
7B142	LR092823	BRACKET - OIL COOLER	LR092823 BRACKET - OIL COOLER Oil Cooler	$21.25	1
7B147	LR092826	BRACKET - OIL HOSES	LR092826 BRACKET - OIL HOSES	$12.88	1
7R081	LR136443	TUBE - OIL COOLER	LR136443 TUBE - OIL COOLER To: JA770189	$413.49	1
7R081	LR113362	TUBE - OIL COOLER	LR113362 TUBE - OIL COOLER From: JA770190 / To: LA279960	$163.57	1
7R081	LR136443	TUBE - OIL COOLER	LR136443 TUBE - OIL COOLER From: LA279961	$413.49	1
