Cylinder Head Cover (2.0L Aj21D4 Diesel Mid) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Cylinder Head Cover (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR074133 BOLT $2.26 To Order
Photo Part No Description Price (each) Stock
LR075631 O-RING $4.83 To Order
Photo Part No Description Price (each) Stock
LR073781 O-RING $5.08 IN STOCK
Photo Part No Description Price (each) Stock
LR154827 O-RING $5.58 To Order
Photo Part No Description Price (each) Stock
LR073649 SCREW $2.51 To Order
Photo Part No Description Price (each) Stock
LR074137 SCREW $1.94 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.60 IN STOCK
Photo Part No Description Price (each) Stock
LR073720 SCREW $1.58 To Order
Photo Part No Description Price (each) Stock
LR073648 SCREW $2.66 IN STOCK
Photo Part No Description Price (each) Stock
LR000335 DOWEL - PIN $12.22 To Order
Photo Part No Description Price (each) Stock
LR139771 COVER - CYLINDER HEAD $336.75 To Order
Photo Part No Description Price (each) Stock
LR073784 GASKET - CAMSHAFT COVER $59.22 To Order
Photo Part No Description Price (each) Stock
LR141355 PIPE - OIL INLET $21.70 To Order
Photo Part No Description Price (each) Stock
LR073782 CAP - OIL FILLER $39.17 To Order
Photo Part No Description Price (each) Stock
LR141288 COVER - INSULATOR $209.37 To Order
Photo Part No Description Price (each) Stock
LR139669 INSULATOR PAD $35.06 To Order
Photo Part No Description Price (each) Stock
LR139691 SENSOR - CAMSHAFT POSITION $150.04 To Order
View All

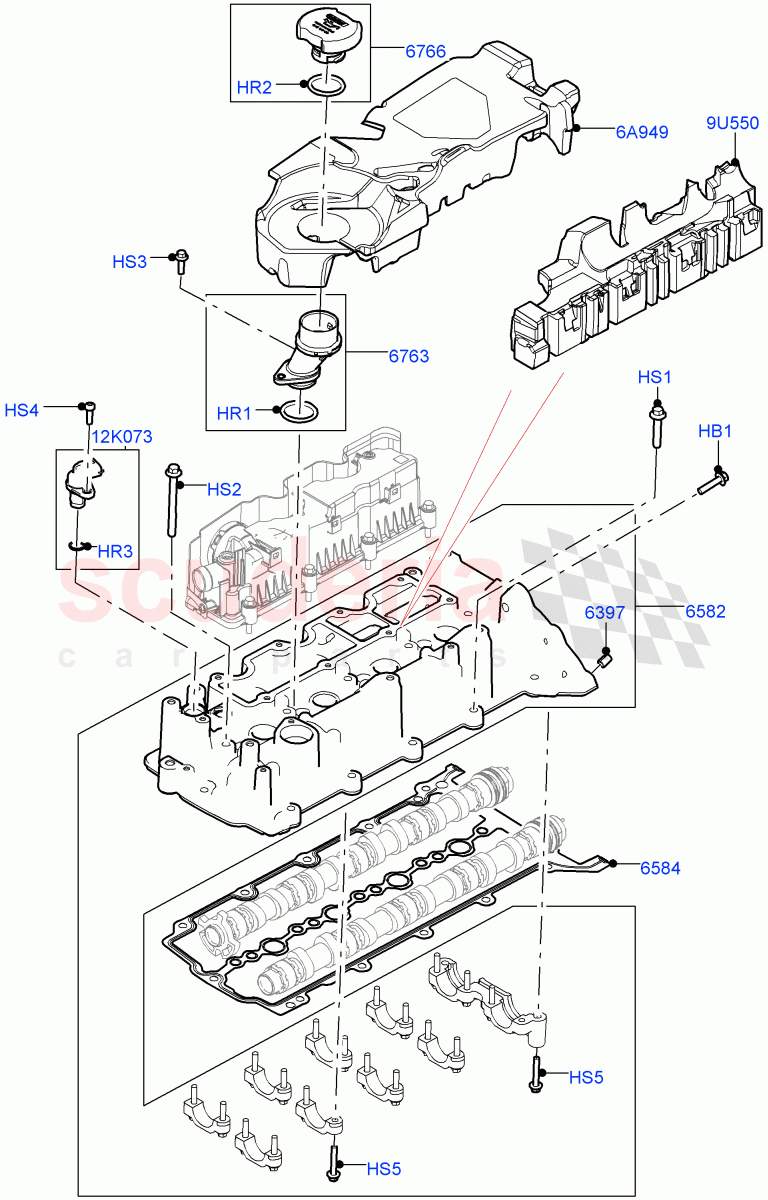

Cylinder Head Cover (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR074133
BOLT
Lifting Eye, M10 X 30MM / From: MA000001 		$2.26 3
HR1 LR075631
O-RING
FILLER, 		$4.83 1
HR2 LR073781
O-RING
Filler Cap,
IN STOCK 		$5.08 1
HR3 LR154827
O-RING
Camshaft Position Sensor, 		$5.58 1
HS1 LR073649
SCREW
2.0L AJ21D4 Diesel Mid / M8 x 40MM / From: MA000001 		$2.51 11
HS2 LR074137
SCREW
2.0L AJ21D4 Diesel Mid / M8 x 60mm / From: MA000001 		$1.94 5
HS3 LR073655
SCREW
Hexagonal Head, M6 X 20MM / From: MA000001
IN STOCK 		$1.60 1
HS4 LR073720
SCREW
M6 X 20MM / From: MA000001 		$1.58 1
HS5 LR073648
SCREW
Hexagonal Head, M6 x 30MM / From: MA000001
IN STOCK 		$2.66 20
6A949 LR141288
COVER - INSULATOR
From: MA000001 		$209.37 1
9U550 LR139669
INSULATOR PAD
Camshaft Cover / From: MA000001 		$35.06 1
12K073 LR139691
SENSOR - CAMSHAFT POSITION
Camshaft Position Sensor / From: MA000001 		$150.04 1
6397 LR000335
DOWEL - PIN 		$12.22 2
6582 LR139771
COVER - CYLINDER HEAD
From: MA000001 		$336.75 1
6584 LR073784
GASKET - CAMSHAFT COVER
From: MA000001 		$59.22 1
6763 LR141355
PIPE - OIL INLET
From: MA000001 		$21.70 1
6766 LR073782
CAP - OIL FILLER
From: MA000001 		$39.17 1
