Radiator/Coolant Overflow Container (2.0L Aj21D4 Diesel Mid) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Radiator/Coolant Overflow Container (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR141748 BOLT $0.57 To Order
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED $1.63 IN STOCK
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
LR092461 RADIATOR - MAIN $642.58 To Order
Photo Part No Description Price (each) Stock
LR176860 CAP - OVERFLOW CONTAINER $16.87 IN STOCK
Photo Part No Description Price (each) Stock
LR166141 PLUG - RADIATOR DRAIN $7.70 To Order
Photo Part No Description Price (each) Stock
LR092467 INSULATOR - RADIATOR SUPPORT $16.33 To Order
Photo Part No Description Price (each) Stock
LR092462 DEFLECTOR - AIR - RADIATOR $46.49 To Order
Photo Part No Description Price (each) Stock
LR141170 FRAME - RADIATOR SUPPORT $158.06 To Order
Photo Part No Description Price (each) Stock
LR092456 BRACKET - CONDENSER SUPPORT $39.78 To Order
Photo Part No Description Price (each) Stock
LR128194 TANK - RADIATOR OVERFLOW $134.80 To Order
Photo Part No Description Price (each) Stock
LR141330 MOTOR AND FAN - ENGINE COOLING $645.32 To Order
LR141172 MOTOR AND FAN - ENGINE COOLING $720.66 To Order
Photo Part No Description Price (each) Stock
LR130628 BRACKET - CONDENSER SUPPORT $21.47 To Order
Photo Part No Description Price (each) Stock
PCJ500030 SENSOR - COOLANT LEVEL $25.03 IN STOCK
Photo Part No Description Price (each) Stock
LR128753 BRACKET - CONDENSER SUPPORT $25.75 To Order
Photo Part No Description Price (each) Stock
LR128756 BRACKET - RADIATOR UPPER $25.48 To Order
View All

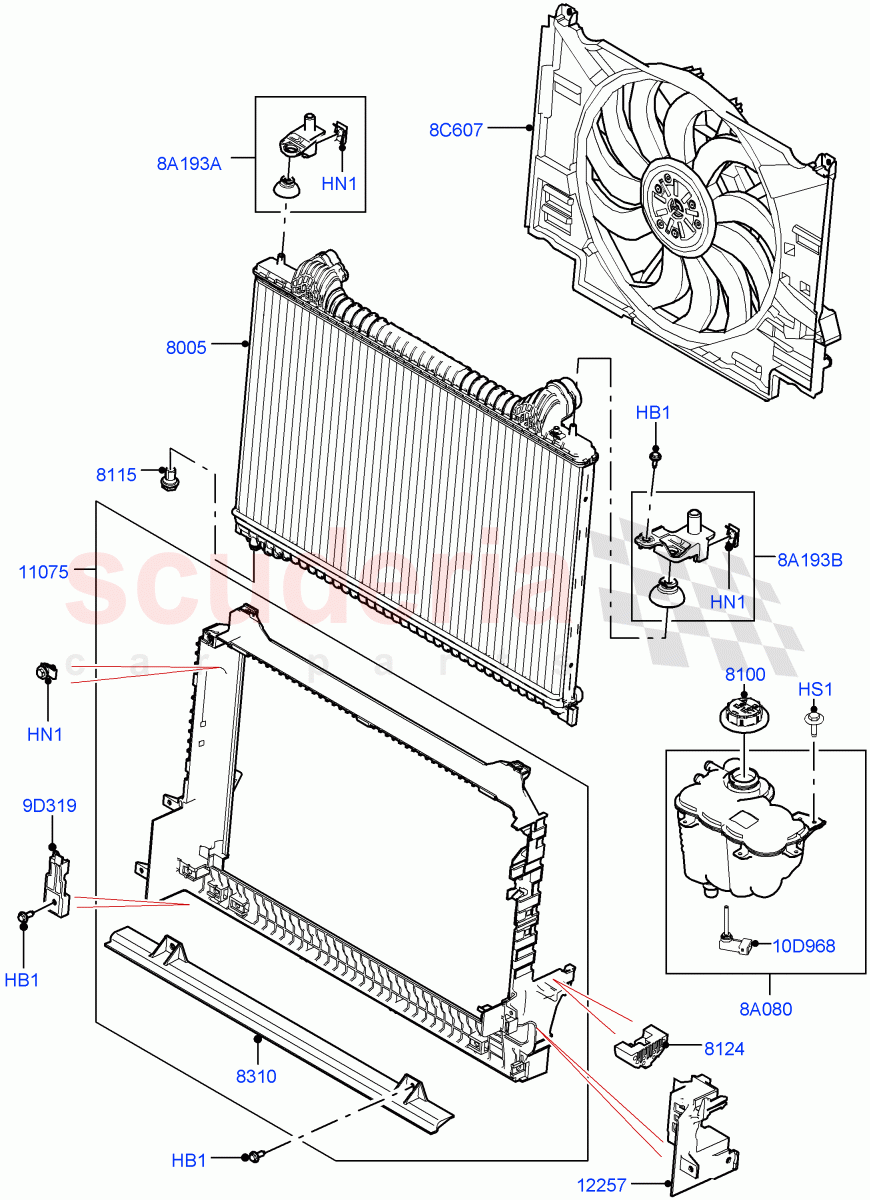

Radiator/Coolant Overflow Container (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR141748
BOLT
M6 X 25MM, Radiator / From: MA000001 		$0.57 6
HN1 LR000053
NUT - FLANGED
M6 / From: MA000001
IN STOCK 		$1.63 9
HS1 AYP500110
SCREW
Bolt And Washer, Expansion Tank, Hexagonal Head, M6 X 20MM / From: MA000001
IN STOCK 		$0.96 1
8A080 LR128194
TANK - RADIATOR OVERFLOW
With Sensor / From: MA000001 		$134.80 1
8A193A LR128753
BRACKET - CONDENSER SUPPORT
RH Upper / From: MA000001 		$25.75 1
8A193B LR128756
BRACKET - RADIATOR UPPER
LH Upper / From: MA000001 		$25.48 1
8C607 LR141330
MOTOR AND FAN - ENGINE COOLING
Engine Cooling Fan 400W / From: MA000001 		$645.32 1
8C607 LR141172
MOTOR AND FAN - ENGINE COOLING
Engine Cooling Fan 650W / From: MA000001 		$720.66 1
9D319 LR130628
BRACKET - CONDENSER SUPPORT
RH, Lower / From: MA000001 		$21.47 1
10D968 PCJ500030
SENSOR - COOLANT LEVEL
From: MA000001
IN STOCK 		$25.03 1
8005 LR092461
RADIATOR - MAIN
From: MA000001 		$642.58 1
8100 LR176860
CAP - OVERFLOW CONTAINER
From: MA000001
IN STOCK 		$16.87 1
8115 LR166141
PLUG - RADIATOR DRAIN
From: MA000001 		$7.70 1
8124 LR092467
INSULATOR - RADIATOR SUPPORT
RH And LH / From: MA000001 		$16.33 2
8310 LR092462
DEFLECTOR - AIR - RADIATOR
Bottom / From: MA000001 		$46.49 1
11075 LR141170
FRAME - RADIATOR SUPPORT
Main / From: MA000001 		$158.06 1
12257 LR092456
BRACKET - CONDENSER SUPPORT
LH, Lower / From: MA000001 		$39.78 1
