Balance Shafts And Drive (2.0L Aj21D4 Diesel Mid) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Balance Shafts And Drive (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR074130 BOLT $4.71 To Order
Photo Part No Description Price (each) Stock
LR074132 NUT $3.06 To Order
Photo Part No Description Price (each) Stock
LR071842 SCREW AND WASHER - HEX HEAD $1.34 To Order
Photo Part No Description Price (each) Stock
LR073762 PIN - SPECIAL $3.01 To Order
Photo Part No Description Price (each) Stock
LR074083 CUP - BEARING $42.99 IN STOCK
Photo Part No Description Price (each) Stock
LR074084 CUP - BEARING $45.05 IN STOCK
Photo Part No Description Price (each) Stock
LR139266 SHAFT - BALANCE $172.20 To Order
LR167443 SHAFT - BALANCE $197.41 To Order
Photo Part No Description Price (each) Stock
LR125268 WASHER - THRUST $3.98 To Order
Photo Part No Description Price (each) Stock
LR139687 GEAR - IDLER $134.19 To Order
Photo Part No Description Price (each) Stock
LR074080 BUSHING - INTERMEDIATE BEARING $26.95 IN STOCK
Photo Part No Description Price (each) Stock
LR154600 COLLAR - THRUST $36.94 IN STOCK
LR154600 COLLAR - THRUST $36.94 IN STOCK
Photo Part No Description Price (each) Stock
112123459 BEARING $36.98 To Order
Photo Part No Description Price (each) Stock
LR139692 GEAR - BALANCE SHAFT $76.48 To Order
Photo Part No Description Price (each) Stock
LR139694 GEAR - BALANCE SHAFT $76.48 To Order
View All

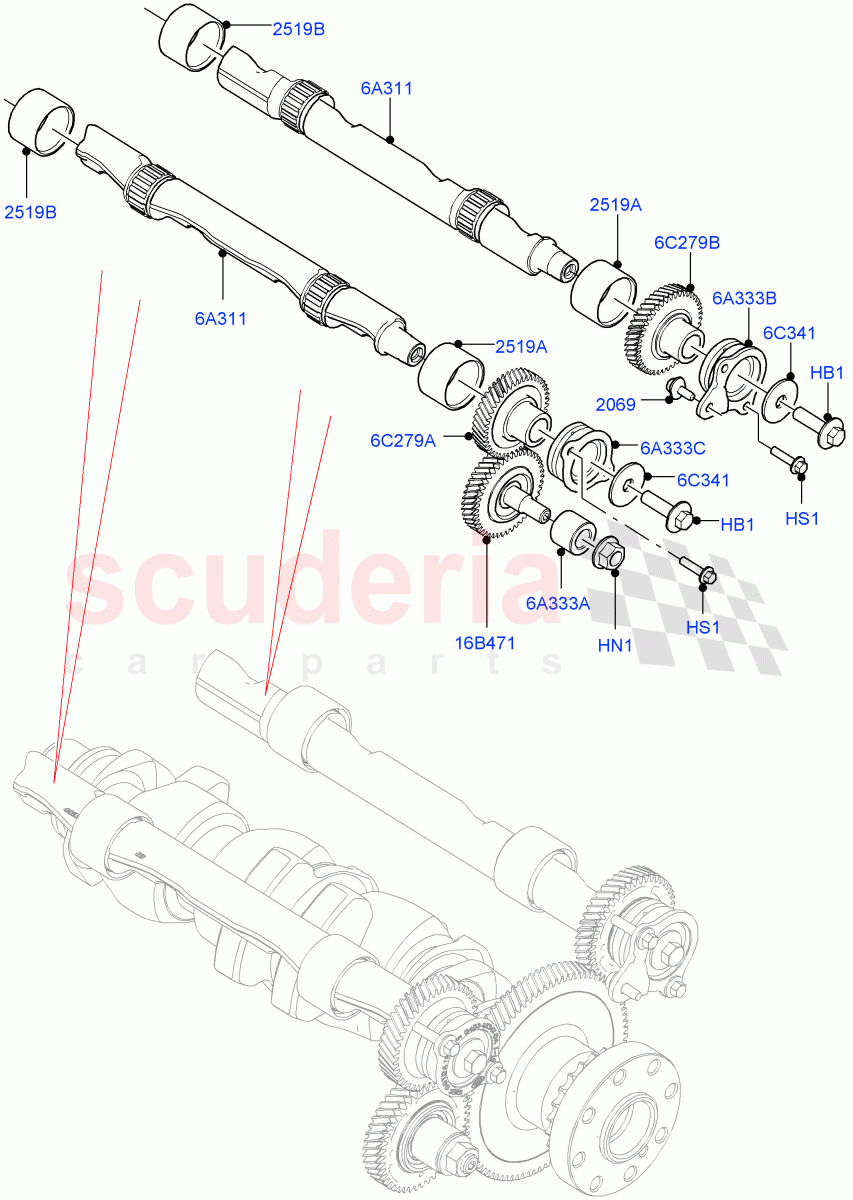

Balance Shafts And Drive (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR074130
BOLT
Gear To Balance Shaft, M10 x 35MM / From: MA000001 		$4.71 2
HN1 LR074132
NUT
Balancer Idler Gear, M12 / From: MA000001 		$3.06 1
HS1 LR071842
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 25MM / From: MA000001 		$1.34 4
6A311 LR139266
SHAFT - BALANCE
From: MA000001 / To: MA325460 		$172.20 2
6A311 LR167443
SHAFT - BALANCE
From: MA325461 		$197.41 2
6A333A LR074080
BUSHING - INTERMEDIATE BEARING
Bushing - Balancer Idler Gear / From: MA000001
IN STOCK 		$26.95 1
6A333B LR154600
COLLAR - THRUST
EXHAUST SIDE, With Collar Thrust / From: MA000001 / To: MA300161
IN STOCK 		$36.94 1
6A333B LR154600
COLLAR - THRUST
EXHAUST SIDE, With Collar Thrust / From: MA300162
IN STOCK 		$36.94 1
6A333C 112123459
BEARING
Intake Side, With Collar Thrust / From: MA000001 		$36.98 1
6C279A LR139692
GEAR - BALANCE SHAFT
Intake Side / From: MA000001 		$76.48 1
6C279B LR139694
GEAR - BALANCE SHAFT
EXHAUST SIDE / From: MA000001 		$76.48 1
6C341 LR125268
WASHER - THRUST
Balancer Drive, Thrust Washer / From: MA000001 		$3.98 2
16B471 LR139687
GEAR - IDLER
Balancer Drive / From: MA000001 		$134.19 1
2069 LR073762
PIN - SPECIAL
PIVOT / From: MA000001 		$3.01 1
2519A LR074083
CUP - BEARING
Engine Rear / From: MA000001
IN STOCK 		$42.99 2
2519B LR074084
CUP - BEARING
Engine Front / From: MA000001
IN STOCK 		$45.05 2
