Name: Fuel Tank & Related Parts (2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL HIGH DOHC AJ200)
Rating: 5.0 (1 reviews)

Fuel Tank & Related Parts (2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL HIGH DOHC AJ200) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Fuel Tank & Related Parts (2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL HIGH DOHC AJ200)

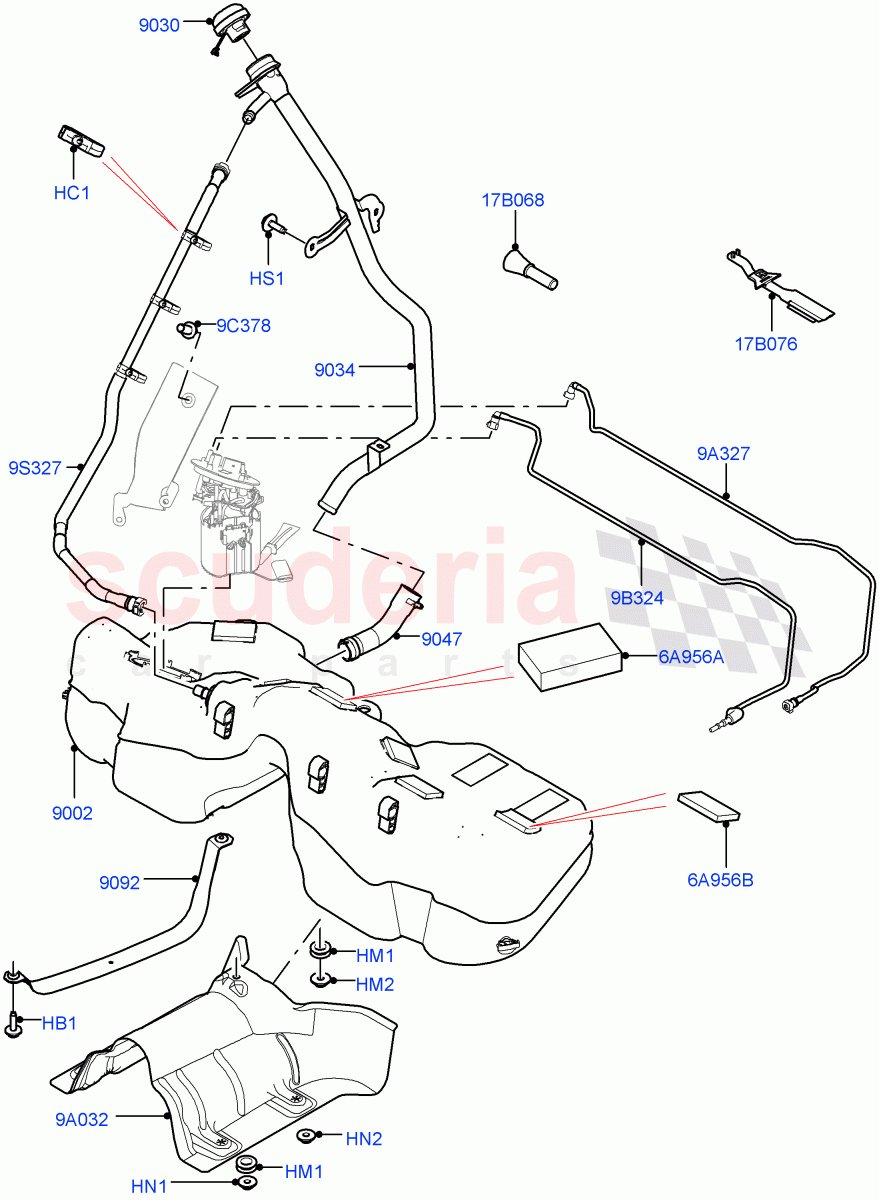

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR078393	BOLT AND WASHER - HEX.HEAD	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060351	CLIP - HOSE	$4.44	To Order

Photo	Part No	Description	Price (each)	Stock
	WYD000020	GROMMET	$3.96	To Order

Photo	Part No	Description	Price (each)	Stock
	WYF000020	SPACER	$3.71	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500370	NUT AND WASHER - HEX.	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000893	NUT	$1.04	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FYP500550	SCREW	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092903	TANK - FUEL	$1,057.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053666	CAP - FUEL TANK FILLER	$28.02	To Order
	LR112190	CAP - FUEL TANK FILLER	$35.19	To Order
	LR138861	CAP - FUEL TANK FILLER	$39.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093116	PIPE - FUEL FILLER	$230.82	To Order
	LR093118	PIPE - FUEL FILLER	$240.28	To Order
	LR093120	PIPE - FUEL FILLER	$248.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093122	HOSE - FILLER PIPE	$55.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095379	STRAP - FUEL TANK	$59.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092966	SHIELD - FUEL TANK	$66.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092958	TUBE - FUEL RETURN	$62.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092962	TUBE - FUEL RETURN	$40.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093968	RETAINER	$4.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092974	TUBE - FUEL VAPOUR	$98.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073691	FUNNEL - FUEL FILLER	$6.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014047	RESTRICTOR - FUEL	$26.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125431	FOAM PAD - ENERGY ABSORBING	$16.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133219	FOAM PAD - ENERGY ABSORBING	$9.43	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR078393	BOLT AND WASHER - HEX.HEAD	LR078393 BOLT AND WASHER - HEX.HEAD M8 x 40MM, To Body	$1.55	4
HC1	LR060351	CLIP - HOSE	LR060351 CLIP - HOSE Vapour Line	$4.44	3
HM1	WYD000020	GROMMET	WYD000020 GROMMET	$3.96	1
HM2	WYF000020	SPACER	WYF000020 SPACER	$3.71	1
HN1	RYH500370	NUT AND WASHER - HEX.	RYH500370 NUT AND WASHER - HEX. M8 Hex, Nut And Washer	$0.67	1
HN2	LR000893	NUT IN STOCK	LR000893 NUT "Spring", Heat Shield IN STOCK	$1.04	4
HS1	FYP500550	SCREW	FYP500550 SCREW Hexagonal Head, M6 X 20MM	$1.05	2
6A956A	LR125431	FOAM PAD - ENERGY ABSORBING	LR125431 FOAM PAD - ENERGY ABSORBING 80mm x 50mm x 20mm	$16.02	4
6A956B	LR133219	FOAM PAD - ENERGY ABSORBING	LR133219 FOAM PAD - ENERGY ABSORBING 80mm x 50mm x 35mm	$9.43	6
9A032	LR092966	SHIELD - FUEL TANK	LR092966 SHIELD - FUEL TANK	$66.44	1
9A327	LR092958	TUBE - FUEL RETURN	LR092958 TUBE - FUEL RETURN	$62.46	1
9B324	LR092962	TUBE - FUEL RETURN	LR092962 TUBE - FUEL RETURN Return	$40.78	1
9C378	LR093968	RETAINER	LR093968 RETAINER Bracket, Vapour Line	$4.05	1
9S327	LR092974	TUBE - FUEL VAPOUR	LR092974 TUBE - FUEL VAPOUR	$98.41	1
17B068	LR073691	FUNNEL - FUEL FILLER	LR073691 FUNNEL - FUEL FILLER Fuel Tank Filler Neck With Inhibit	$6.28	1
17B076	LR014047	RESTRICTOR - FUEL	LR014047 RESTRICTOR - FUEL Fuel Tank Filler Neck - Diesel	$26.26	1
9002	LR092903	TANK - FUEL	LR092903 TANK - FUEL	$1,057.44	1
9030	LR053666	CAP - FUEL TANK FILLER	LR053666 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - All Nozzles / To: LA292888	$28.02	1
9030	LR112190	CAP - FUEL TANK FILLER	LR112190 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Japan / From: KA000001	$35.19	1
9030	LR138861	CAP - FUEL TANK FILLER	LR138861 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - All Nozzles / From: LA292889	$39.31	1
9034	LR093116	PIPE - FUEL FILLER	LR093116 PIPE - FUEL FILLER Fuel Tank Filler Neck - Diesel	$230.82	1
9034	LR093118	PIPE - FUEL FILLER	LR093118 PIPE - FUEL FILLER Fuel Tank Filler Neck - All Nozzles	$240.28	1
9034	LR093120	PIPE - FUEL FILLER	LR093120 PIPE - FUEL FILLER Fuel Tank Filler Neck With Inhibit	$248.02	1
9047	LR093122	HOSE - FILLER PIPE	LR093122 HOSE - FILLER PIPE	$55.95	1
9092	LR095379	STRAP - FUEL TANK	LR095379 STRAP - FUEL TANK	$59.81	2

Fuel Tank & Related Parts (2.0L I4 Dsl Mid Dohc Aj200, 2.0L I4 Dsl High Dohc Aj200)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Fuel Tank & Related Parts (2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL HIGH DOHC AJ200)
