Turbocharger (Turbocharger Related Parts) (2.0L I4 Dsl High Dohc Aj200)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Turbocharger (Turbocharger Related Parts) (2.0L I4 DSL HIGH DOHC AJ200)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR078918 BOLT - HEX. HEAD - FLANGED $0.94 To Order
Photo Part No Description Price (each) Stock
LR073686 SCREW $2.49 To Order
Photo Part No Description Price (each) Stock
LR081625 GASKET - EXHAUST MANIFOLD $35.48 To Order
LR112664 GASKET - EXHAUST MANIFOLD $26.72 To Order
Photo Part No Description Price (each) Stock
LR122973 HEAT SHIELD - SENSOR $20.68 To Order
Photo Part No Description Price (each) Stock
LR082481 SENSOR - EXHAUST GAS - TEMPERATURE $154.68 To Order
Photo Part No Description Price (each) Stock
LR082495 SENSOR - EXHAUST GAS PRESSURE $145.84 To Order
LR112670 SENSOR - EXHAUST GAS PRESSURE $203.88 To Order
Photo Part No Description Price (each) Stock
LR081623 HEAT SHIELD - TURBOCHARGER $50.91 To Order
LR117877 HEAT SHIELD - TURBOCHARGER $58.79 To Order
Photo Part No Description Price (each) Stock
LR081620 HEAT SHIELD - TURBOCHARGER $42.15 To Order
Photo Part No Description Price (each) Stock
LR081622 HEAT SHIELD - TURBOCHARGER $37.11 To Order
Photo Part No Description Price (each) Stock
LR081629 SHIELD - EXHAUST MANIFOLD HEAT $34.35 To Order
Photo Part No Description Price (each) Stock
LR081628 SHIELD - EXHAUST MANIFOLD HEAT $34.62 To Order
Photo Part No Description Price (each) Stock
LR104408 BRACKET $17.53 To Order
LR146479 BRACKET $107.32 To Order
Photo Part No Description Price (each) Stock
LR124570 BRACKET - CABLE SUPPORT $14.28 To Order
View All

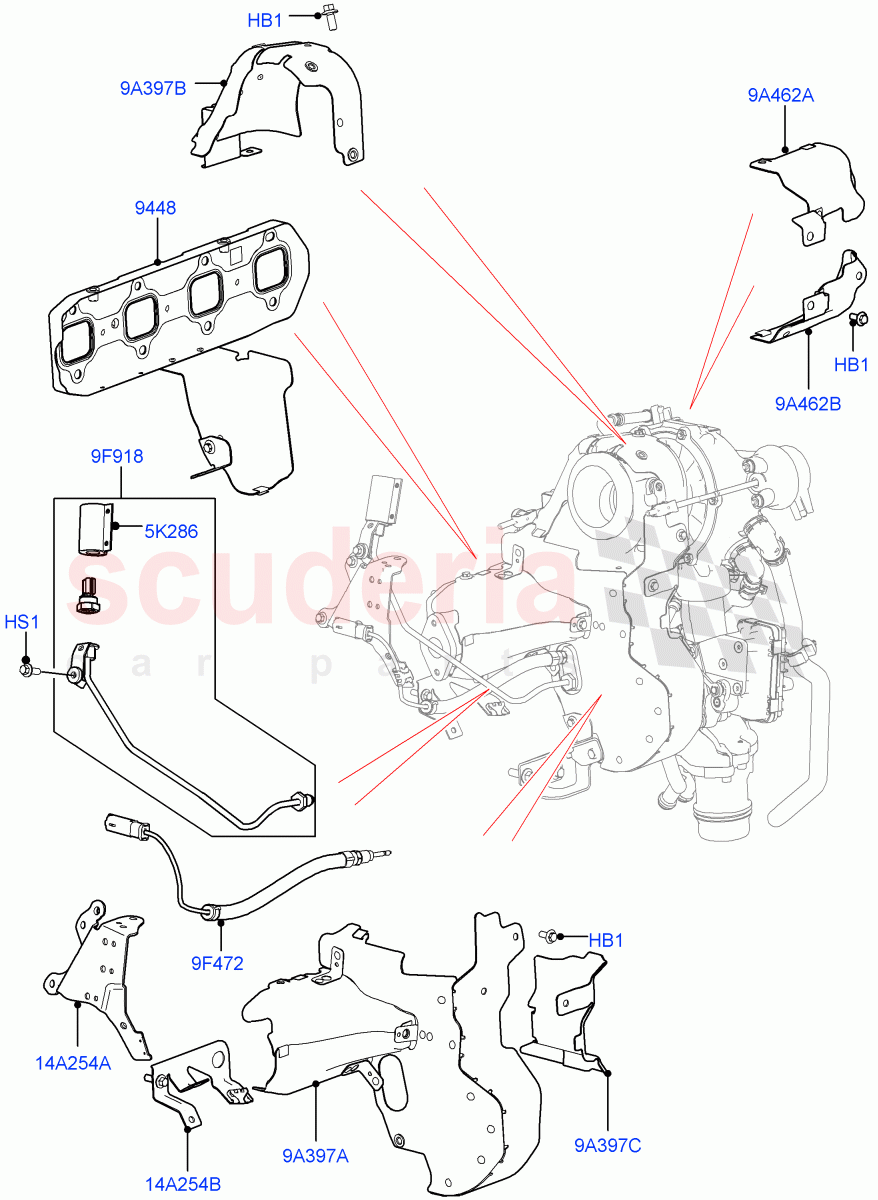

Turbocharger (Turbocharger Related Parts) (2.0L I4 DSL HIGH DOHC AJ200) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR078918
BOLT - HEX. HEAD - FLANGED
Heat Shield, M6 X 14MM 		$0.94 9
HS1 LR073686
SCREW
M6 X 16MM, Sensor 		$2.49 1
5K286 LR122973
HEAT SHIELD - SENSOR
Pressure Sensor 		$20.68 1
9A397A LR081623
HEAT SHIELD - TURBOCHARGER
Bottom, Centre / To: JA770446 		$50.91 1
9A397A LR117877
HEAT SHIELD - TURBOCHARGER
Bottom, Centre / From: JA770447 		$58.79 1
9A397B LR081620
HEAT SHIELD - TURBOCHARGER
Upper 		$42.15 1
9A397C LR081622
HEAT SHIELD - TURBOCHARGER
Centre 		$37.11 1
9A462A LR081629
SHIELD - EXHAUST MANIFOLD HEAT
RH Upper 		$34.35 1
9A462B LR081628
SHIELD - EXHAUST MANIFOLD HEAT
RH Lower 		$34.62 1
9F472 LR082481
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature 		$154.68 1
9F918 LR082495
SENSOR - EXHAUST GAS PRESSURE
Complete Assembly, For Engine Serial Number Earlier Than ESN 180130W0734204DTA 		$145.84 1
9F918 LR112670
SENSOR - EXHAUST GAS PRESSURE
Complete Assembly, For Engine Serial Number Later Than ESN 180130W0734204DTA 		$203.88 1
14A254A LR104408
BRACKET
Sensor Cable / To: LA285523 		$17.53 1
14A254A LR146479
BRACKET
Sensor Cable / From: LA285524 		$107.32 1
14A254B LR124570
BRACKET - CABLE SUPPORT
Sensor Cable 		$14.28 1
9448 LR081625
GASKET - EXHAUST MANIFOLD
Heat Shield, Manifold To Cylinder Head / To: JA736257 		$35.48 1
9448 LR112664
GASKET - EXHAUST MANIFOLD
Heat Shield, Manifold To Cylinder Head / From: JA736258 		$26.72 1
