Vacuum Control And Air Injection (2.0L I4 Dsl Mid Dohc Aj200, Rhd)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Vacuum Control And Air Injection (2.0L I4 DSL MID DOHC AJ200, RHD)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR073666 SCREW $1.42 To Order
Photo Part No Description Price (each) Stock
LR087668 PUMP - OIL & VACUUM $555.27 To Order
LR110501 PUMP - OIL & VACUUM $606.49 To Order
Photo Part No Description Price (each) Stock
LR090848 GROMMET $5.08 To Order
Photo Part No Description Price (each) Stock
LR082319 HOSE - VACUUM CONTROL HARNESS $49.87 To Order
LR091633 HOSE - VACUUM $262.29 To Order
LR082319 HOSE - VACUUM CONTROL HARNESS $49.87 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR093608 SENSOR - VACUUM $75.64 To Order
Photo Part No Description Price (each) Stock
LR090851 HOSE - VACUUM $120.27 To Order
Photo Part No Description Price (each) Stock
LR148195 CONNECTOR - VACUUM TUBE $27.88 To Order
LR148195 CONNECTOR - VACUUM TUBE $27.88 To Order
View All

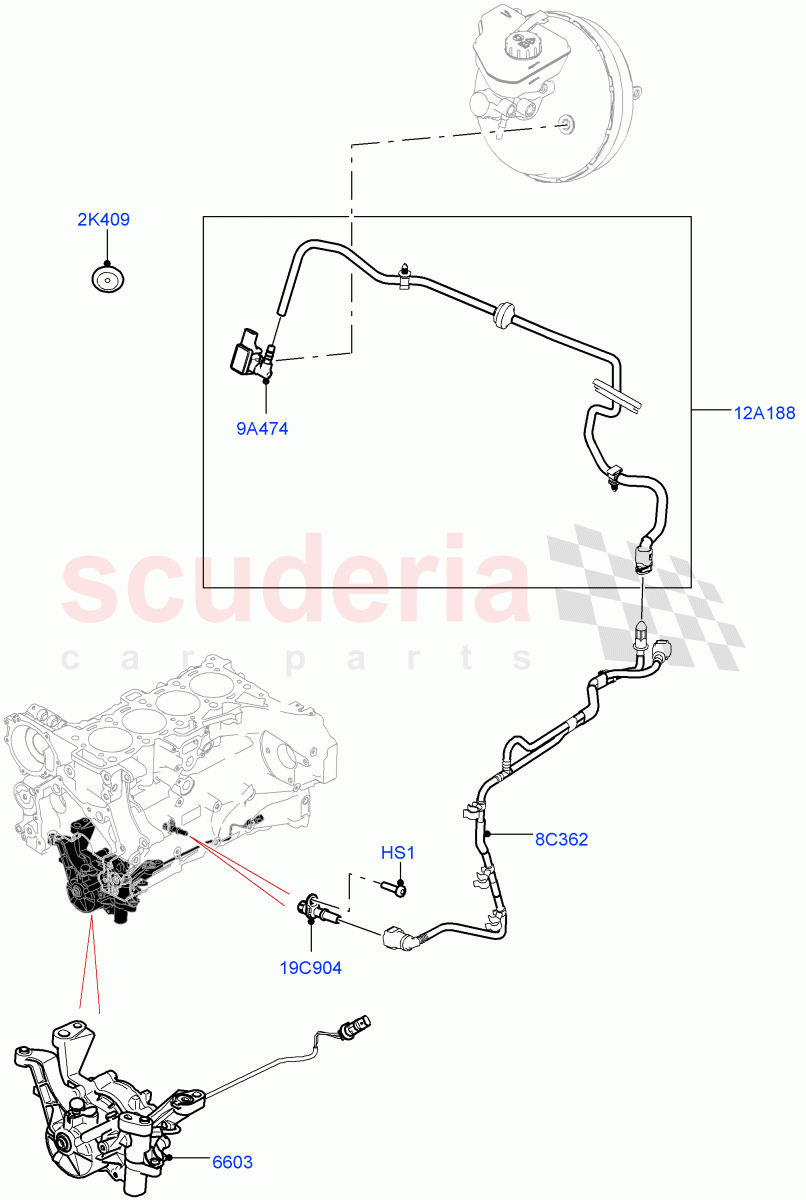

Vacuum Control And Air Injection (2.0L I4 DSL MID DOHC AJ200, RHD) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR073666
SCREW
M5 x 20MM, Vacuum Connector 		$1.42 1
2K409 LR090848
GROMMET 		$5.08 1
8C362 LR082319
HOSE - VACUUM CONTROL HARNESS
EU6 + DPF Emissions / To Vacuum Pump / To: JA999999 		$49.87 1
8C362 LR091633
HOSE - VACUUM
LEV 160 / To Vacuum Pump / To: JA999999 		$262.29 1
8C362 LR082319
HOSE - VACUUM CONTROL HARNESS
Stage V Plus DPF / To Vacuum Pump / From: KA000001 		$49.87 1
8C362 LR091633
HOSE - VACUUM
EU6D Diesel + DPF Emissions / To Vacuum Pump / From: KA000001 		$262.29 1
9A474 LR093608
SENSOR - VACUUM 		$75.64 1
12A188 LR090851
HOSE - VACUUM
To Brake Booster 		$120.27 1
19C904 LR148195
CONNECTOR - VACUUM TUBE
Cylinder Block, Pump - Vacuum / To: LA292815 		$27.88 1
19C904 LR148195
CONNECTOR - VACUUM TUBE
Cylinder Block, Pump - Vacuum / From: LA292816 		$27.88 1
6603 LR087668
PUMP - OIL & VACUUM
To: JA742843 		$555.27 1
6603 LR110501
PUMP - OIL & VACUUM
From: JA742844 		$606.49 1
