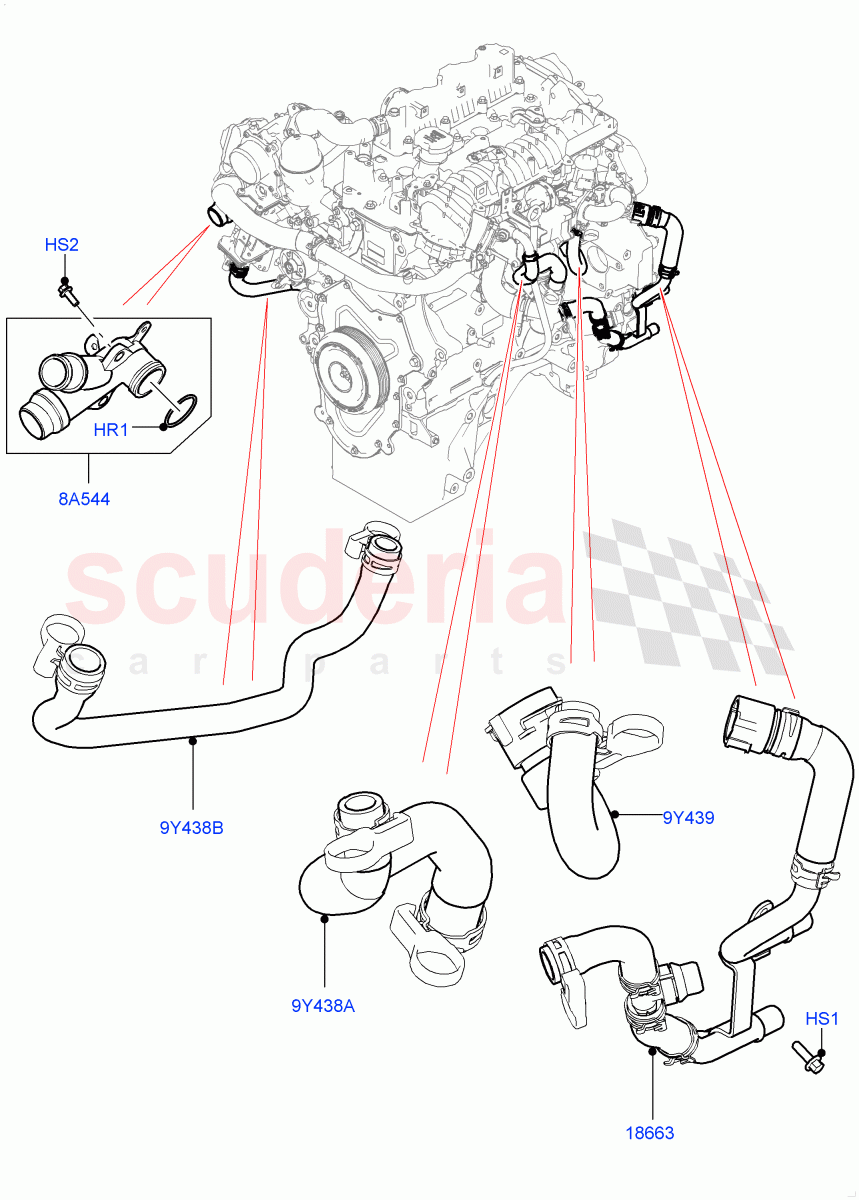

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR097266	O-RING	$13.92	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	$0.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073736	SCREW	$1.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107718	TUBE - HEATER WATER	$214.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085514	CONNECTION - WATER OUTLET	$29.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092115	HOSE - WATER OUTLET	$48.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092134	HOSE - EGR COOLER	$58.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082239	HOSE - EGR COOLER	$51.80	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR097266	O-RING	LR097266 O-RING From: KA000001	$13.92	1
HS1	FS106206	SCREW IN STOCK	FS106206 SCREW Hexagonal Head, M6 X 20MM / From: KA000001 IN STOCK	$0.96	2
HS2	LR073736	SCREW	LR073736 SCREW M8 X 30MM / From: KA000001	$1.70	2
8A544	LR085514	CONNECTION - WATER OUTLET	LR085514 CONNECTION - WATER OUTLET EGR Cooler / From: KA000001	$29.32	1
9Y438A	LR092134	HOSE - EGR COOLER	LR092134 HOSE - EGR COOLER EGR Cooler Inlet / From: KA000001	$58.92	1
9Y438B	LR082239	HOSE - EGR COOLER	LR082239 HOSE - EGR COOLER From EGR Cooler To Oil Cooler / From: KA000001	$51.80	1
9Y439	LR092115	HOSE - WATER OUTLET	LR092115 HOSE - WATER OUTLET EGR Cooler Outlet / From: KA000001	$48.60	1
18663	LR107718	TUBE - HEATER WATER	LR107718 TUBE - HEATER WATER From: KA000001	$214.17	1
