Transfer Drive Components (6 Speed Auto Zf 6Hp26 Steptronic, 6 Speed Man Zf S6-53, 8 Speed Auto...

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Transfer Drive Components (6 Speed Auto ZF 6HP26 Steptronic, 6 Speed Man ZF S6-53, 8 Speed Auto...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
IZB500040 RING - SEALING $18.60 To Order
Photo Part No Description Price (each) Stock
IZB500050 RING - SEALING $23.14 To Order
Photo Part No Description Price (each) Stock
IYP500080 SCREW $2.76 To Order
Photo Part No Description Price (each) Stock
LR011888 SCREW $3.88 To Order
Photo Part No Description Price (each) Stock
LR037019 BRACKET - ELECTRICAL UNIT $99.39 To Order
Photo Part No Description Price (each) Stock
IYB500020 PLUG - OIL DRAIN $5.17 To Order
Photo Part No Description Price (each) Stock
IYX500050 KIT - GREASE AND ORING $25.34 To Order
Photo Part No Description Price (each) Stock
LR011132 COVER - MODULE $84.80 To Order
Photo Part No Description Price (each) Stock
LR022936 MODULE - TRANSFER SHIFT CONTROL $423.58 To Order
LR022936 MODULE - TRANSFER SHIFT CONTROL $423.58 To Order
Photo Part No Description Price (each) Stock
LR094511 DAMPER - VIBRATION $78.42 To Order
Photo Part No Description Price (each) Stock
LR044897 CHAIN - TRANSFER DRIVE $252.88 To Order
Photo Part No Description Price (each) Stock
IGH500040 MOTOR - TRANSFER CASE $743.09 To Order
Photo Part No Description Price (each) Stock
IGF500011 SOLENOID - ELECTRONIC PRESSURE CTL $188.14 To Order
Photo Part No Description Price (each) Stock
IZB500030 SEAL - TRANSFER BOX $31.30 To Order
Photo Part No Description Price (each) Stock
IYF500030 WASHER $1.04 To Order
Photo Part No Description Price (each) Stock
IAB500191 SENSOR - TRIPMINDER $182.69 To Order
Photo Part No Description Price (each) Stock
LR086059 FLANGE - PROPSHAFT $218.04 To Order
LR086059 FLANGE - PROPSHAFT $218.04 To Order
Photo Part No Description Price (each) Stock
IEA500041 FLANGE $219.66 To Order
LR039528 KIT - TRANSFER BOX FLANGE $272.20 To Order
LR086048 FLANGE - COUPLING $198.92 To Order
View All

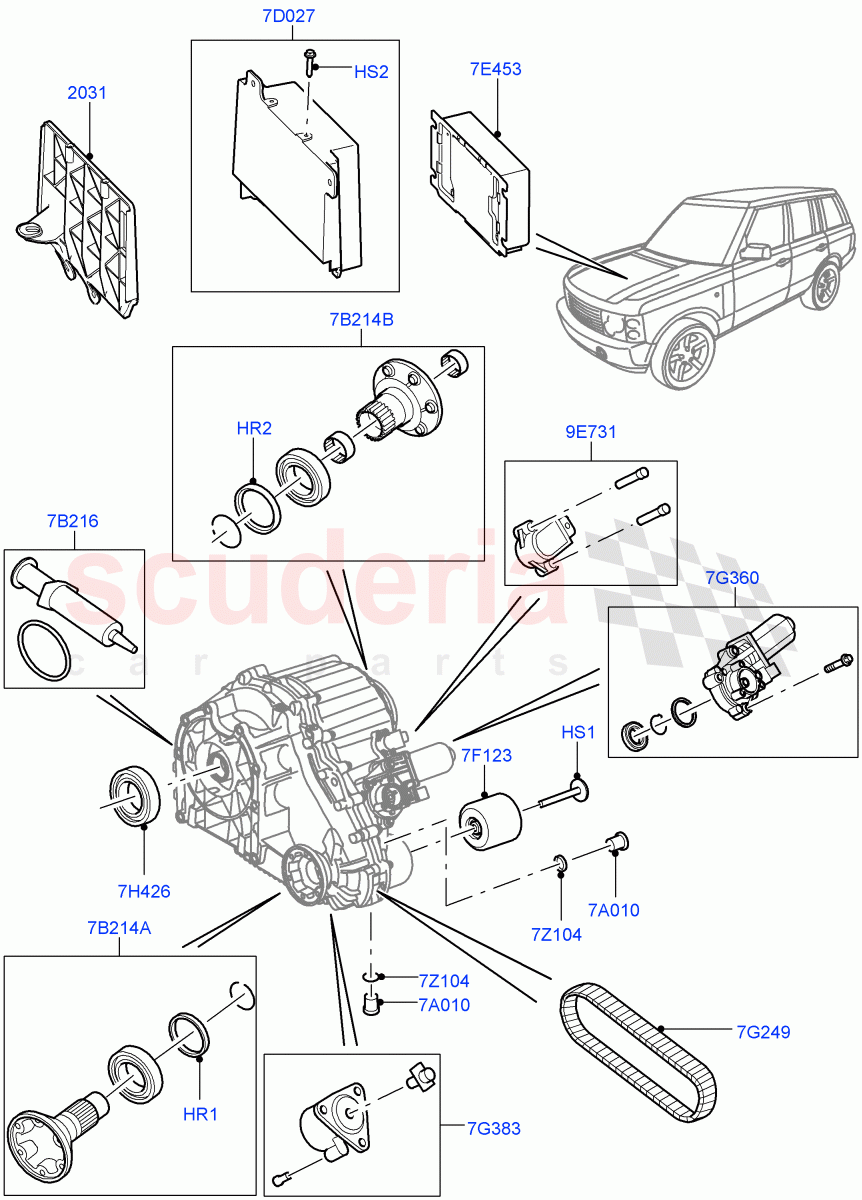

Transfer Drive Components (6 Speed Auto ZF 6HP26 Steptronic, 6 Speed Man ZF S6-53, 8 Speed Auto Trans ZF 8HP70 4WD, 6 Speed Auto Transmission ZF 6HP28) ((V) FROMAA000001, (V) TODA999999) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 IZB500040
RING - SEALING
Front Output, Seal / From: AA000001 		$18.60 1
HR2 IZB500050
RING - SEALING
Rear Output, Seal / From: AA000001 		$23.14 1
HS1 IYP500080
SCREW
3.6L V8 32V DOHC EFi Diesel Lion / Bolt And Washer, HEX Flange, M10 X 80MM / From: AA000001 / To: AA999999 		$2.76 1
HS2 LR011888
SCREW
4 x 20MM / From: AA000001 		$3.88 2
7A010 IYB500020
PLUG - OIL DRAIN
Filler Plug, M16, Plug - Oil Drain / From: AA000001 		$5.17 2
7B214A LR086059
FLANGE - PROPSHAFT
Front, Propshaft / From: AA000001 / To: CA999999 		$218.04 1
7B214A LR086059
FLANGE - PROPSHAFT
Front, Propshaft / From: DA000001 		$218.04 1
7B214B IEA500041
FLANGE
Propshaft, Rear / From: AA000001 / To: BA999999 		$219.66 1
7B214B LR039528
KIT - TRANSFER BOX FLANGE
Propshaft, Rear / From: CA649539 		$272.20 1
7B214B LR086048
FLANGE - COUPLING
Propshaft, Rear / From: CA000001 / To: CA649538 		$198.92 1
7B216 IYX500050
KIT - GREASE AND ORING
Input Shaft, Kit / From: AA000001 		$25.34 1
7D027 LR011132
COVER - MODULE
Module - Transfer Case Shift Control / From: AA000001 		$84.80 1
7E453 LR022936
MODULE - TRANSFER SHIFT CONTROL
From: AA000001 / To: AA262641 		$423.58 1
7E453 LR022936
MODULE - TRANSFER SHIFT CONTROL
From: BA262642 		$423.58 1
7F123 LR094511
DAMPER - VIBRATION
3.6L V8 32V DOHC EFi Diesel Lion / From: AA000001 / To: AA999999 		$78.42 1
7G249 LR044897
CHAIN - TRANSFER DRIVE
For Vehicles With Transfer Case Unit Serial Number A0711997 To A0936980, Please Refer To Technical Service Bulletin LTB00498 / From: BA288059 / To: DA784343 		$252.88 1
7G360 IGH500040
MOTOR - TRANSFER CASE
Transfer Case Shifter / From: AA000001 		$743.09 1
7G383 IGF500011
SOLENOID - ELECTRONIC PRESSURE CTL
Transfer Box / From: AA000001 		$188.14 1
7H426 IZB500030
SEAL - TRANSFER BOX
Input Shaft / From: AA000001 		$31.30 1
7Z104 IYF500030
WASHER
M16, Plug - Oil Drain / From: AA000001 		$1.04 2
9E731 IAB500191
SENSOR - TRIPMINDER
High/Low Position Sensor / From: AA000001 		$182.69 1
2031 LR037019
BRACKET - ELECTRICAL UNIT
Module - Transfer Case Shift Control / From: AA000001 		$99.39 1
