Auxiliary Fuel Fired Pre-Heater (Page B) (With Fuel Fired Heater) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Auxiliary Fuel Fired Pre-Heater (Page B) (With Fuel Fired Heater) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
ALU1844L BOLT $1.21 To Order
Photo Part No Description Price (each) Stock
RYP501130 BOLT $1.37 To Order
Photo Part No Description Price (each) Stock
FS106122 BOLT $4.08 To Order
Photo Part No Description Price (each) Stock
PYC101890 CLIP $2.96 To Order
Photo Part No Description Price (each) Stock
AWR6715 NUT - SPECIAL $4.44 IN STOCK
Photo Part No Description Price (each) Stock
FN106041 Nut $1.00 To Order
Photo Part No Description Price (each) Stock
JYP500020 SCREW - PAN HEAD - SELF-TAPPING $5.64 To Order
Photo Part No Description Price (each) Stock
LR018305 TUBE - AUXILIARY HEATER SUPPLY $116.58 To Order
Photo Part No Description Price (each) Stock
JEZ500050 PIPE - EXHAUST $38.17 To Order
Photo Part No Description Price (each) Stock
JHB000420 HOSE $13.78 IN STOCK
Photo Part No Description Price (each) Stock
JEX000030 PUMP - WATER $168.45 To Order
Photo Part No Description Price (each) Stock
MAN500020 CLIP - FUEL PIPE SECURING $6.41 To Order
Photo Part No Description Price (each) Stock
JEX500020 PUMP - FUEL $378.34 To Order
LR061887 Pump - Fuel Enquire To Order
LR068412 PUMP - FUEL $263.41 To Order
Photo Part No Description Price (each) Stock
LR013840 PIPE - FUEL $56.02 To Order
Photo Part No Description Price (each) Stock
LR013937 HEATER - AUXILIARY $1,870.44 To Order
LR021638 HEATER - AUXILIARY $2,020.07 To Order
LR030843 HEATER - AUXILIARY $2,020.07 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR018306 HEATER - AUXILIARY $1,461.71 To Order
LR021632 HEATER - AUXILIARY $1,578.68 To Order
LR030840 HEATER - AUXILIARY $1,652.36 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR014459 PIPE - AIR INLET $53.36 To Order
Photo Part No Description Price (each) Stock
LR013836 BRACKET $45.89 To Order
Photo Part No Description Price (each) Stock
JEU500010 BRACKET $44.57 To Order
Photo Part No Description Price (each) Stock
JEU500040 BRACKET $12.40 To Order
Photo Part No Description Price (each) Stock
JEG500070 CLIP $9.24 To Order
Photo Part No Description Price (each) Stock
LR013935 CLIP $1.71 To Order
View All

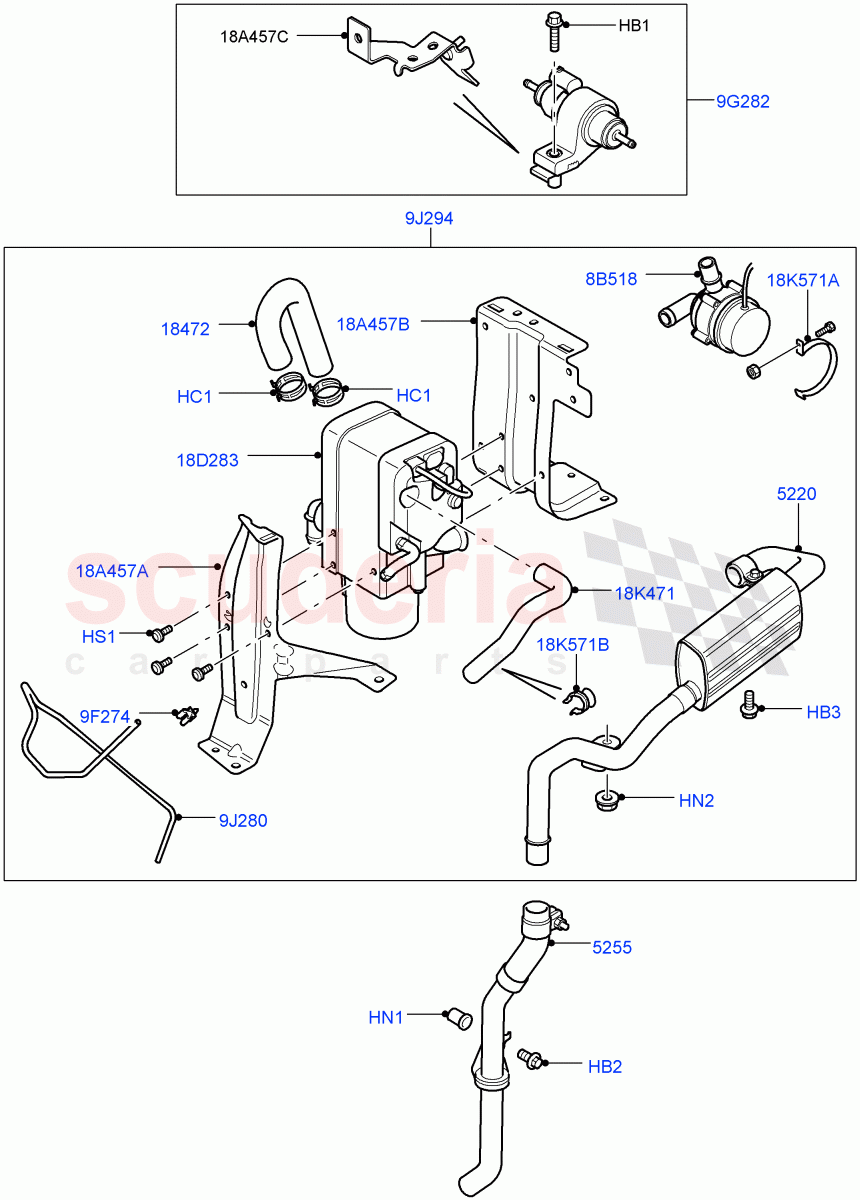

Auxiliary Fuel Fired Pre-Heater (Page B) (With Fuel Fired Heater) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 ALU1844L
BOLT
M6 x 25MM / From: AA000001 		$1.21 1
HB2 RYP501130
BOLT
M6 x 12MM / From: AA000001 		$1.37 1
HB3 FS106122
BOLT
M6 x 12MM / From: AA000001 		$4.08 1
HC1 PYC101890
CLIP
Hose / From: AA000001 		$2.96 2
HN1 AWR6715
NUT - SPECIAL
M6 / From: AA000001
IN STOCK 		$4.44 1
HN2 FN106041
Nut
M6 / From: AA000001 		$1.00 1
HS1 JYP500020
SCREW - PAN HEAD - SELF-TAPPING
Fuel Burning Heater / From: AA000001 		$5.64 6
8B518 JEX000030
PUMP - WATER
From: AA000001 		$168.45 1
9F274 MAN500020
CLIP - FUEL PIPE SECURING
For Fuel Tube / From: AA000001 		$6.41 1
9G282 JEX500020
PUMP - FUEL
Connects To Fuel Tank, Rear / From: AA000001 / To: AA999999 		$378.34 1
9G282 LR061887
Pump - Fuel
Connects To Fuel Tank, Rear / From: BA000001 / To: BA999999 		- 1 Enquire
9G282 LR068412
PUMP - FUEL
Connects To Fuel Tank, Rear / From: CA000001 		$263.41 1
9J280 LR013840
PIPE - FUEL
Fuel Supply / From: AA000001 		$56.02 1
9J294 LR013937
HEATER - AUXILIARY
Complete Assembly / From: AA000001 / To: AA233964 		$1,870.44 1
9J294 LR021638
HEATER - AUXILIARY
Complete Assembly / From: AA233965 / To: BA296395 		$2,020.07 1
9J294 LR030843
HEATER - AUXILIARY
Complete Assembly / From: BA296396 / To: DA760919 		$2,020.07 1
9J294 LR043111
HEATER - AUXILIARY
Complete Assembly / From: DA760920 		$2,208.36 1
18A457A LR013836
BRACKET
From: AA000001 		$45.89 1
18A457B JEU500010
BRACKET
From: AA000001 		$44.57 1
18A457C JEU500040
BRACKET
For Fuel Pump / From: AA000001 		$12.40 1
18D283 LR018306
HEATER - AUXILIARY
Heater Main Unit / From: AA000001 / To: AA233964 		$1,461.71 1
18D283 LR021632
HEATER - AUXILIARY
Heater Main Unit / From: AA233965 / To: BA298807 		$1,578.68 1
18D283 LR030840
HEATER - AUXILIARY
Heater Main Unit / From: BA298808 / To: CA742877 		$1,652.36 1
18D283 LR041675
HEATER - AUXILIARY
Heater Main Unit / From: CA742878 / To: CA743877 		$1,625.73 1
18D283 LR066870
HEATER - AUXILIARY
Heater Main Unit / From: CA743878 		$1,625.73 1
18K471 LR014459
PIPE - AIR INLET
From: AA000001 		$53.36 1
18K571A JEG500070
CLIP
Attaches To Water Pump / From: AA000001 		$9.24 1
18K571B LR013935
CLIP
From: AA000001 		$1.71 1
5220 LR018305
TUBE - AUXILIARY HEATER SUPPLY
Fuel Burning Heater / From: AA000001 		$116.58 1
5255 JEZ500050
PIPE - EXHAUST
Fuel Burning Heater / From: AA000001 		$38.17 1
18472 JHB000420
HOSE
Attaches To Water Pump / From: AA000001
IN STOCK 		$13.78 1
