Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Electrical Wiring - Engine And Dash (Case Assy / Transmission) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
YYP500100 BOLT $2.11 To Order
Photo Part No Description Price (each) Stock
LR015857 WIRE $378.94 To Order
LR015859 WIRE $378.94 To Order
LR015867 WIRE $447.20 To Order
...and 19 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR015904 WIRE $59.74 To Order
LR020074 WIRE $59.74 To Order
View All

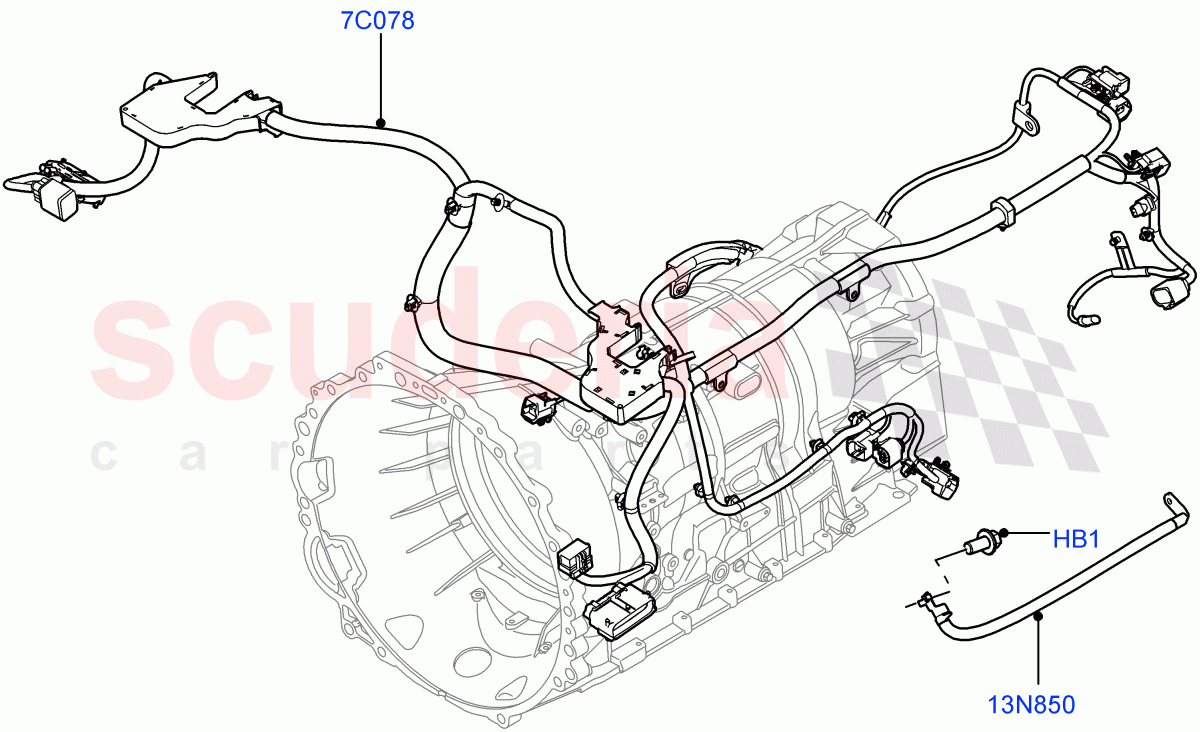

Electrical Wiring - Engine And Dash (Case Assy / Transmission) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 YYP500100
BOLT
M8 X 16MM / From: AA000001 		$2.11 1
7C078 LR015857
WIRE
5.0L OHC SGDI SC V8 Petrol - AJ133, LHD / From: AA000001 / To: AA262641 		$378.94 1
7C078 LR015859
WIRE
5.0L OHC SGDI NA V8 Petrol - AJ133, RHD / From: AA000001 / To: AA262641 		$378.94 1
7C078 LR015867
WIRE
3.0L 24V DOHC V6 TC Diesel, LHD, Stage V Plus DPF / From: AA000001 / To: AA262641 		$447.20 1
7C078 LR015868
WIRE
3.0L 24V DOHC V6 TC Diesel, RHD, Stage V Plus DPF / From: AA000001 / To: AA262641 		$444.60 1
7C078 LR015928
WIRE
3.0L 24V DOHC V6 TC Diesel, Euro Stage 4 Emissions, LHD / From: AA000001 / To: AA262641 		$378.94 1
7C078 LR015929
WIRE
3.0L 24V DOHC V6 TC Diesel, Euro Stage 4 Emissions, RHD / From: AA000001 / To: AA262641 		$449.75 1
7C078 LR016107
WIRE
3.6L V8 32V DOHC EFi Diesel Lion, LHD, Stage IV + DPF Emissions / From: AA000001 / To: AA262641 		$378.94 1
7C078 LR016108
WIRE
3.6L V8 32V DOHC EFi Diesel Lion, RHD, Stage IV + DPF Emissions / From: AA000001 / To: AA262641 		$378.94 1
7C078 LR016109
WIRE
3.6L V8 32V DOHC EFi Diesel Lion, Euro Stage 4 Emissions, LHD / From: AA000001 / To: AA262641 		$378.94 1
7C078 LR016110
WIRE
3.6L V8 32V DOHC EFi Diesel Lion, Euro Stage 4 Emissions, RHD / From: AA000001 / To: AA262641 		$378.94 1
7C078 LR021153
WIRE
5.0L OHC SGDI SC V8 Petrol - AJ133, LHD / From: BA262642 		$378.94 1
7C078 LR021154
WIRE
5.0L OHC SGDI NA V8 Petrol - AJ133, RHD / From: BA262642 		$397.90 1
7C078 LR021155
WIRE
3.0L 24V DOHC V6 TC Diesel, LHD, Stage V Plus DPF / From: BA262642 / To: BA999999 		$597.46 1
7C078 LR021156
WIRE
3.0L 24V DOHC V6 TC Diesel, RHD, Stage V Plus DPF / From: BA262642 / To: BA999999 		$637.15 1
7C078 LR021157
WIRE
3.0L 24V DOHC V6 TC Diesel, Euro Stage 4 Emissions, LHD / From: BA262642 / To: BA999999 		$599.89 1
7C078 LR021158
WIRE
3.0L 24V DOHC V6 TC Diesel, Euro Stage 4 Emissions, RHD / From: BA262642 / To: BA999999 		$592.49 1
7C078 LR030279
WIRING - TRANSMISSION
3.0L 24V DOHC V6 TC Diesel, 6 Speed Auto Transmission ZF 6HP28, LHD, Stage V Plus DPF / From: CA000001 		$280.66 1
7C078 LR030280
WIRING - TRANSMISSION
3.0L 24V DOHC V6 TC Diesel, 6 Speed Auto Transmission ZF 6HP28, RHD, Stage V Plus DPF / From: CA000001 		$290.44 1
7C078 LR030281
WIRING - TRANSMISSION
3.0L 24V DOHC V6 TC Diesel, 6 Speed Auto Transmission ZF 6HP28, Euro Stage 4 Emissions, LHD / From: CA000001 		$295.33 1
7C078 LR030282
WIRING - TRANSMISSION
3.0L 24V DOHC V6 TC Diesel, 6 Speed Auto Transmission ZF 6HP28, Euro Stage 4 Emissions, RHD / From: CA000001 		$278.58 1
7C078 LR030283
WIRING - TRANSMISSION
3.0L 24V DOHC V6 TC Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, LHD, Stage V Plus DPF / From: CA000001 		$267.31 1
7C078 LR030284
WIRING - TRANSMISSION
3.0L 24V DOHC V6 TC Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, RHD, Stage V Plus DPF / From: CA000001 		$385.64 1
13N850 LR015904
WIRE
5.0L OHC SGDI SC V8 Petrol - AJ133 / From: AA000001 / To: AA218729 		$59.74 1
13N850 LR020074
WIRE
3.6L V8 32V DOHC EFi Diesel Lion / From: AA218730 		$59.74 1
