Vacuum Control And Air Injection (5.0L Ohc Sgdi Sc V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Vacuum Control And Air Injection (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR009660 CLIP $1.79 IN STOCK
Photo Part No Description Price (each) Stock
LR000395 CLIP - DOUBLE $1.11 To Order
Photo Part No Description Price (each) Stock
LR011273 SCREW $3.55 IN STOCK
Photo Part No Description Price (each) Stock
LR010690 PUMP - VACUUM $614.49 To Order
LR048796 PUMP - VACUUM $466.99 To Order
LR060475 PUMP - VACUUM $441.62 To Order
Photo Part No Description Price (each) Stock
LR012685 SEAL - VACUUM PUMP $20.94 To Order
Photo Part No Description Price (each) Stock
LR011974 CLIP - HOSE $651.46 To Order
Photo Part No Description Price (each) Stock
LR011982 VALVE - VACUUM CONTROL $166.58 To Order
Photo Part No Description Price (each) Stock
LR015539 HOSE - VACUUM $127.27 To Order
LR015540 HOSE - VACUUM $127.27 To Order
LR020553 HOSE - VACUUM $121.32 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR015541 HOSE - VACUUM $127.27 To Order
LR020554 HOSE - VACUUM $157.03 To Order
LR048231 HOSE - VACUUM $60.75 To Order
Photo Part No Description Price (each) Stock
LR011356 HOSE - VACUUM $94.88 To Order
LR020514 HOSE - VACUUM $100.16 To Order
LR088580 HOSE - VACUUM $113.00 To Order
View All

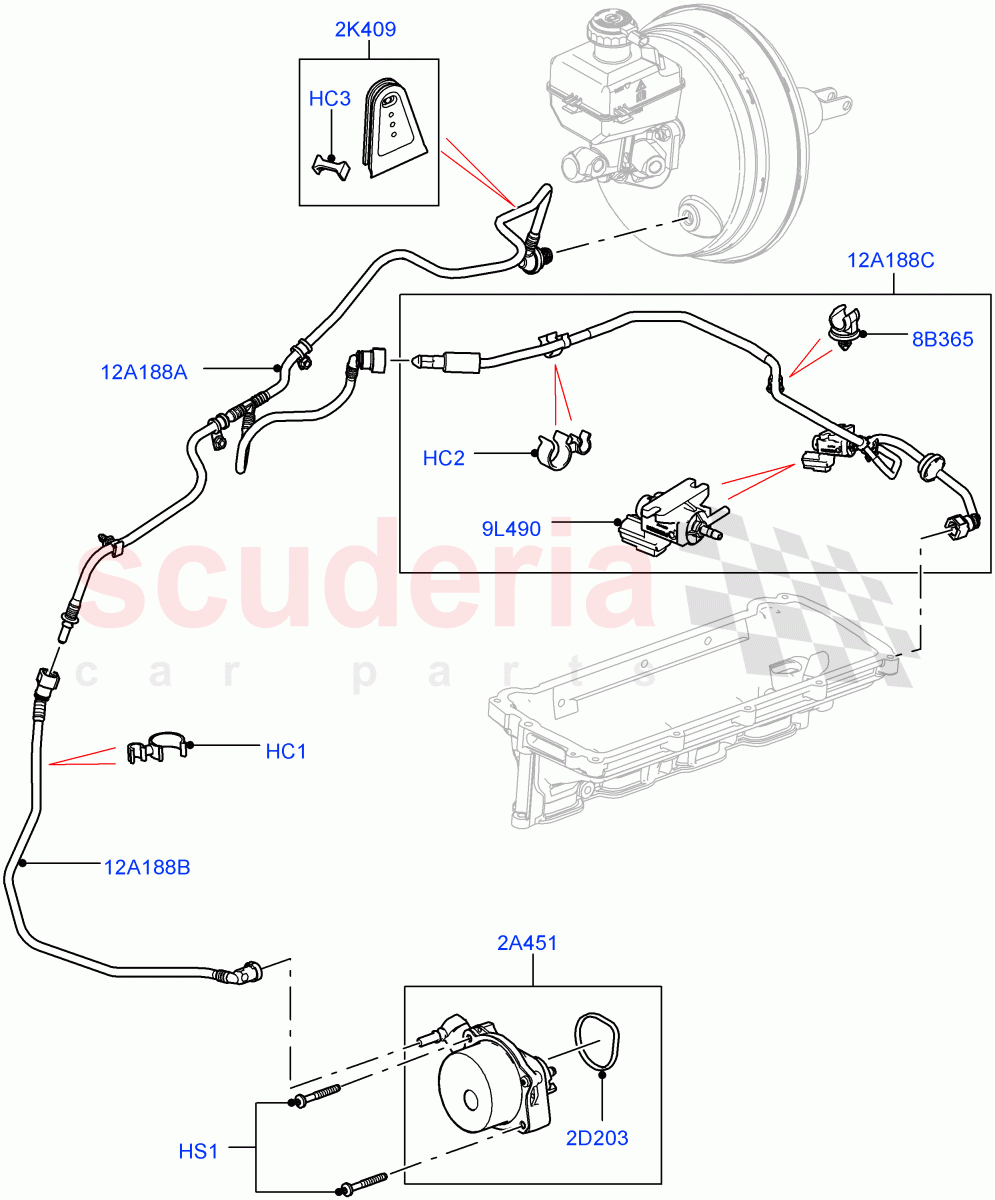

Vacuum Control And Air Injection (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR009660
CLIP
Double, Vacuum Pump Hose / From: AA000001
IN STOCK 		$1.79 2
HC2 LR000395
CLIP - DOUBLE
Hose Assy / From: AA000001 		$1.11 1
HS1 LR011273
SCREW
M6 X 45MM, Pump - Vacuum / From: AA000001
IN STOCK 		$3.55 2
2A451 LR010690
PUMP - VACUUM
From: AA000001 / To: DA814631 		$614.49 1
2A451 LR048796
PUMP - VACUUM
From: DA814632 / To: DA999999 		$466.99 1
2A451 LR060475
PUMP - VACUUM
From: EA000001 		$441.62 1
2D203 LR012685
SEAL - VACUUM PUMP
From: AA000001 		$20.94 1
8B365 LR011974
CLIP - HOSE
From: AA000001 		$651.46 2
9L490 LR011982
VALVE - VACUUM CONTROL
Symposer (Resonator) / From: AA000001 		$166.58 1
12A188A LR015539
HOSE - VACUUM
LHD / Brake Vacuum Booster / From: AA000001 / To: AA237065 		$127.27 1
12A188A LR015540
HOSE - VACUUM
RHD / Brake Vacuum Booster / From: AA000001 / To: DA763777 		$127.27 1
12A188A LR020553
HOSE - VACUUM
LHD / Brake Vacuum Booster / From: AA237066 / To: CA753330 		$121.32 1
12A188A LR038330
HOSE - VACUUM
LHD / Brake Vacuum Booster / From: CA753331 / To: DA787598 		$126.60 1
12A188A LR038331
HOSE - VACUUM
RHD / Brake Vacuum Booster / From: DA763778 / To: DA813052 		$153.31 1
12A188A LR048230
HOSE - VACUUM
RHD / Brake Vacuum Booster / From: DA813053 		$157.42 1
12A188A LR046111
HOSE - VACUUM
LHD / Brake Vacuum Booster / From: DA787599 		$127.22 1
12A188B LR015541
HOSE - VACUUM
Pump - Vacuum / From: AA000001 / To: AA241656 		$127.27 1
12A188B LR020554
HOSE - VACUUM
Pump - Vacuum / From: AA241657 / To: DA794959 		$157.03 1
12A188B LR048231
HOSE - VACUUM
Pump - Vacuum / From: DA794960 		$60.75 1
12A188C LR011356
HOSE - VACUUM
From: AA000001 / To: AA231299 		$94.88 1
12A188C LR020514
HOSE - VACUUM
From: AA231300 / To: AA999999 		$100.16 1
12A188C LR088580
HOSE - VACUUM
From: BA000001 		$113.00 1
