Cooling System Pipes And Hoses (5.0L Ohc Sgdi Sc V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Cooling System Pipes And Hoses (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR017360 CLIP $3.05 To Order
Photo Part No Description Price (each) Stock
LR013723 HOSE - OIL COOLER $87.96 To Order
Photo Part No Description Price (each) Stock
LR013684 HOSE - RADIATOR $114.58 To Order
Photo Part No Description Price (each) Stock
LR014313 BRACKET - COOLING HOSE $21.51 To Order
Photo Part No Description Price (each) Stock
LR013810 TUBE $84.97 To Order
Photo Part No Description Price (each) Stock
LR018998 HOSE $48.26 To Order
Photo Part No Description Price (each) Stock
LR013693 HOSE $148.18 To Order
Photo Part No Description Price (each) Stock
LR018959 HOSE - OVERFLOW $44.69 To Order
Photo Part No Description Price (each) Stock
LR014567 HOSE $72.39 To Order
Photo Part No Description Price (each) Stock
4346360 SENSOR - ENGINE COOLANT TEMPERATURE $59.77 To Order
LR041442 SENSOR - ENGINE COOLANT TEMPERATURE $49.04 To Order
Photo Part No Description Price (each) Stock
LR018997 HOSE - WATER $48.26 To Order
Photo Part No Description Price (each) Stock
LR019008 HOSE $72.58 To Order
Photo Part No Description Price (each) Stock
LR019007 HOSE $72.58 To Order
View All

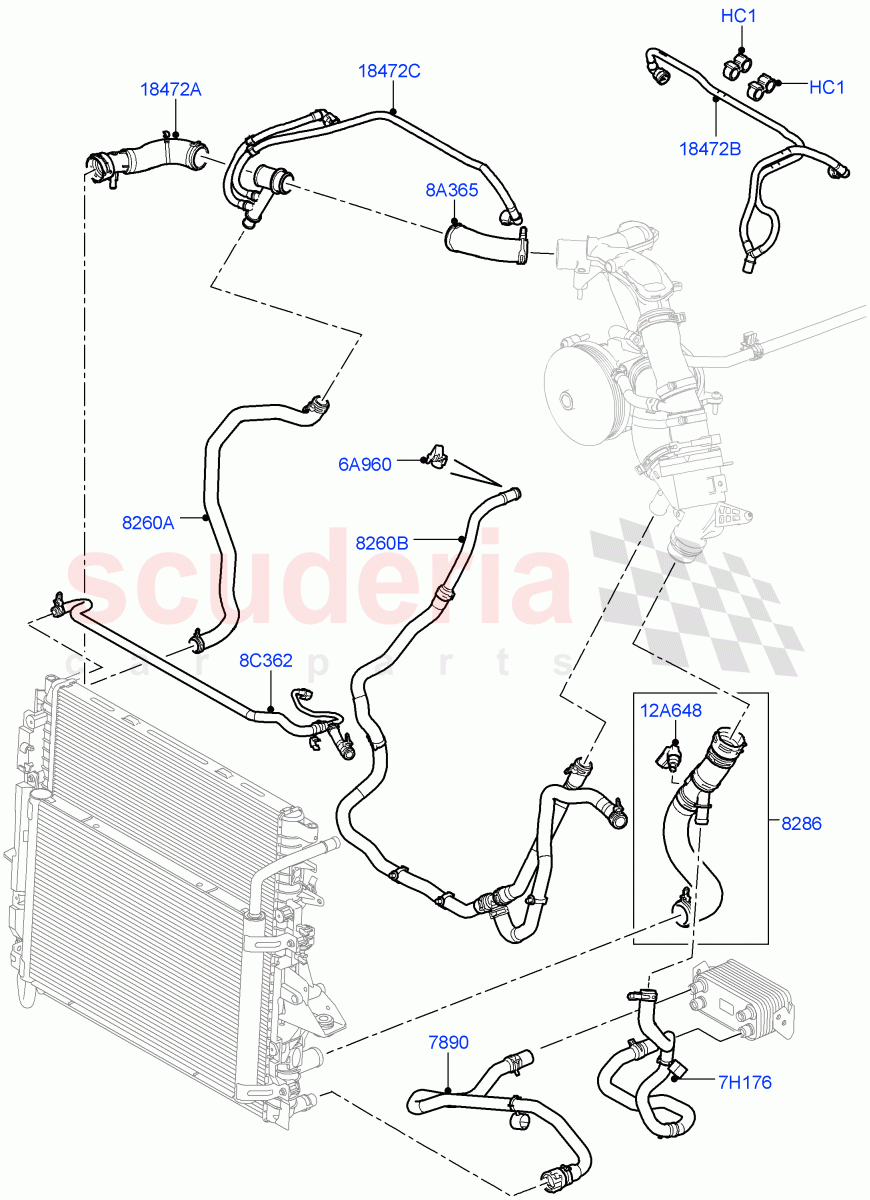

Cooling System Pipes And Hoses (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR017360
CLIP
Double, Upper / From: AA000001 		$3.05 2
6A960 LR014313
BRACKET - COOLING HOSE
RH, To Body, Upper / From: AA000001 		$21.51 1
7H176 LR013810
TUBE
Return, Transmission Cooler Line / From: AA000001 		$84.97 1
8A365 LR018959
HOSE - OVERFLOW
To Engine, Top, With Clamps / From: AA000001 		$44.69 1
8C362 LR014567
HOSE
Radiator To Expansion Tank Bleed, Top, With Clips / From: AA000001 		$72.39 1
12A648 4346360
SENSOR - ENGINE COOLANT TEMPERATURE
From: AA000001 / To: CA999999 		$59.77 1
12A648 LR041442
SENSOR - ENGINE COOLANT TEMPERATURE
From: DA000001 		$49.04 1
7890 LR013723
HOSE - OIL COOLER
Feed, Transmission Cooler Line / From: AA000001 		$87.96 1
8260A LR018998
HOSE
Auxiliary cooler, To Top Hose / From: AA000001 		$48.26 1
8260B LR013693
HOSE
To Expansion Tank, To Heater Hoses, To Thermostat, With Clips / From: AA000001 		$148.18 1
8286 LR013684
HOSE - RADIATOR
Attaches To Bottom Of Radiator, Radiator To Thermostat, With Sensor / From: AA000001 		$114.58 1
18472A LR018997
HOSE - WATER
Engine To Radiator, Top / From: AA000001 		$48.26 1
18472B LR019008
HOSE
Intercooler Inlet, Supply From Pump, With Auxiliary Coolant Pump / From: AA000001 		$72.58 1
18472C LR019007
HOSE
Intercooler, Outlet, To Top Hose / From: AA000001 		$72.58 1
