Inlet Manifold (Manifolds, Intercooler And Cover) (5.0L Ohc Sgdi Sc V8 Petrol - Aj133) ((V)...

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Inlet Manifold (Manifolds, Intercooler And Cover) (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR008883 BOLT - HEX.HEAD $4.35 To Order
Photo Part No Description Price (each) Stock
FS106126 BOLT $0.52 IN STOCK
Photo Part No Description Price (each) Stock
4567977 BOLT $3.91 IN STOCK
Photo Part No Description Price (each) Stock
LR010917 SCREW $1.16 IN STOCK
Photo Part No Description Price (each) Stock
LR011363 SCREW $1.97 IN STOCK
Photo Part No Description Price (each) Stock
LR011065 SCREW $2.47 To Order
Photo Part No Description Price (each) Stock
LR011067 SCREW $1.32 IN STOCK
Photo Part No Description Price (each) Stock
LR011264 SCREW $1.09 IN STOCK
LR044772 SCREW $0.53 To Order
Photo Part No Description Price (each) Stock
LR073675 PLUG - OIL DRAIN $8.33 To Order
Photo Part No Description Price (each) Stock
LR010874 COVER $406.09 To Order
LR046912 COVER - ENGINE TOP $507.03 To Order
Photo Part No Description Price (each) Stock
LR010871 STUD - BALL $7.08 To Order
Photo Part No Description Price (each) Stock
LR010730 INSULATOR - INTAKE MANIFOLD $11.15 To Order
LR042119 INSULATOR - INTAKE MANIFOLD $19.20 IN STOCK
Photo Part No Description Price (each) Stock
LR011564 BRACKET - ENGINE COVER $24.59 To Order
Photo Part No Description Price (each) Stock
LR011309 MANIFOLD - INLET $126.31 To Order
LR042173 MANIFOLD - INLET $251.51 To Order
Photo Part No Description Price (each) Stock
LR011310 MANIFOLD - INLET $126.15 To Order
LR042186 MANIFOLD - INLET $257.79 To Order
Photo Part No Description Price (each) Stock
LR010870 MANIFOLD - INLET $1,356.12 To Order
LR035519 INLET MANIFOLD WITH INTERCOOLER $1,297.08 To Order
LR083608 INLET MANIFOLD WITH INTERCOOLER $1,743.24 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR011585 GASKET - INTAKE MANIFOLD $12.21 IN STOCK
Photo Part No Description Price (each) Stock
LR011586 GASKET - INTAKE MANIFOLD $12.61 IN STOCK
Photo Part No Description Price (each) Stock
LR011343 GASKET - INTAKE MANIFOLD $109.01 IN STOCK
Photo Part No Description Price (each) Stock
LR008887 SENSOR - AIR CHARGE $116.37 To Order
LR021587 SENSOR - AIR TEMPERATURE & PRESSURE $64.93 To Order
View All

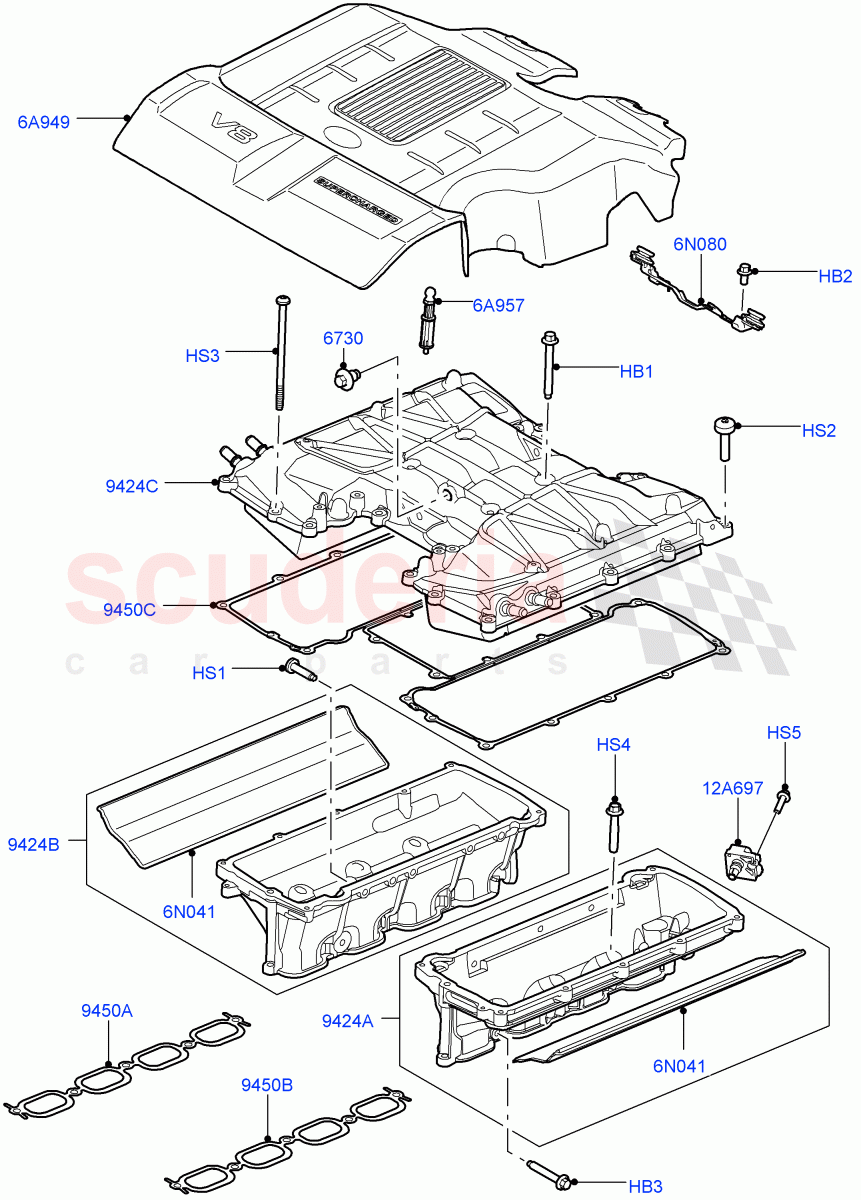

Inlet Manifold (Manifolds, Intercooler And Cover) (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR008883
BOLT - HEX.HEAD
Intercooler, M8 x 65MM / From: AA000001 		$4.35 4
HB2 FS106126
BOLT
Bracket, Hexagonal Head, M6 x 12MM / From: AA000001
IN STOCK 		$0.52 2
HB3 4567977
BOLT
M8 X 50, Manifold To Supercharger / From: AA000001
IN STOCK 		$3.91 2
HS1 LR010917
SCREW
M8 x 30MM, Manifold To Supercharger / From: AA000001
IN STOCK 		$1.16 6
HS2 LR011363
SCREW
Intercooler To Manifold, M8 X 35MM / From: AA000001
IN STOCK 		$1.97 19
HS3 LR011065
SCREW
Intercooler To Cylinder Head, M8 X 150MM / From: AA000001 		$2.47 2
HS4 LR011067
SCREW
M8 X 45MM, Manifold To Cylinder Head / From: AA000001
IN STOCK 		$1.32 8
HS5 LR011264
SCREW
M5 x 25MM, MAP Sensor / From: AA000001 / To: CA999999
IN STOCK 		$1.09 1
HS5 LR044772
SCREW
M5 x 20MM, MAP Sensor / From: DA000001 		$0.53 1
6A949 LR010874
COVER
Engine / From: AA000001 / To: DA814796 		$406.09 1
6A949 LR046912
COVER - ENGINE TOP
Engine / From: DA814797 		$507.03 1
6A957 LR010871
STUD - BALL
Cover / From: AA000001 		$7.08 2
6N041 LR010730
INSULATOR - INTAKE MANIFOLD
Attaches to intake manifold / From: AA000001 / To: CA739136 		$11.15 2
6N041 LR042119
INSULATOR - INTAKE MANIFOLD
Attaches to intake manifold / From: CA739137
IN STOCK 		$19.20 2
6N080 LR011564
BRACKET - ENGINE COVER
Engine Cover / From: AA000001 		$24.59 1
12A697 LR008887
SENSOR - AIR CHARGE
Sensor - Manifold Absolute Pressure (MAP) / From: AA000001 / To: AA231299 		$116.37 1
12A697 LR021587
SENSOR - AIR TEMPERATURE & PRESSURE
Sensor - Air Temperature And Pressure / From: AA231300 		$64.93 1
6730 LR073675
PLUG - OIL DRAIN
M14 X 1.5, Plug Blanking To Fill SCOT Sensor Hole Of Intercooler - For Vehicles Less Sensor / From: DA773154 		$8.33 1
9424A LR011309
MANIFOLD - INLET
LH / From: AA000001 / To: CA739136 		$126.31 1
9424A LR042173
MANIFOLD - INLET
LH / From: CA739137 		$251.51 1
9424B LR011310
MANIFOLD - INLET
RH / From: AA000001 / To: CA739136 		$126.15 1
9424B LR042186
MANIFOLD - INLET
RH / From: CA739137 		$257.79 1
9424C LR010870
MANIFOLD - INLET
Upper, With Intercooler / From: AA000001 / To: BA295628 		$1,356.12 1
9424C LR035519
INLET MANIFOLD WITH INTERCOOLER
Upper, With Intercooler / From: BA295629 / To: DA773154 		$1,297.08 1
9424C LR083608
INLET MANIFOLD WITH INTERCOOLER
Upper, With Intercooler / From: DA773154 / To: DA792241 		$1,743.24 1
9424C LR107284
INLET MANIFOLD WITH INTERCOOLER
Upper, With Intercooler / From: DA792242 		$1,793.11 1
9450A LR011585
GASKET - INTAKE MANIFOLD
RH, Manifold To Cylinder Head / From: AA000001
IN STOCK 		$12.21 1
9450B LR011586
GASKET - INTAKE MANIFOLD
LH, Manifold To Cylinder Head / From: AA000001
IN STOCK 		$12.61 1
9450C LR011343
GASKET - INTAKE MANIFOLD
Intercooler To Manifold / From: AA000001
IN STOCK 		$109.01 1
