Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] - Rear Seat Frame ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
HYG500200 BOLT $5.48 To Order
Photo Part No Description Price (each) Stock
HYG500160 BOLT $4.02 To Order
Photo Part No Description Price (each) Stock
HYA000020 GROMMET $1.14 To Order
Photo Part No Description Price (each) Stock
HZT500020 BUSH $2.77 To Order
Photo Part No Description Price (each) Stock
HYG500270 BOLT $1.04 To Order
Photo Part No Description Price (each) Stock
HYG500280 SCREW $0.77 To Order
Photo Part No Description Price (each) Stock
HYG500380 SCREW $6.06 To Order
Photo Part No Description Price (each) Stock
HYP500370 SCREW $1.81 To Order
Photo Part No Description Price (each) Stock
HYP500150 SCREW $0.76 To Order
Photo Part No Description Price (each) Stock
HZT500030 BUSH $2.75 To Order
Photo Part No Description Price (each) Stock
HLM500100 MOULDING - SEAT BACK $5.50 To Order
HLM500110 MOULDING - SEAT BACK $5.50 To Order
Photo Part No Description Price (each) Stock
HXG500290NUG HANDLE - SEAT BACK ADJUSTING $38.80 To Order
HXG500290PVJ HANDLE - SEAT BACK ADJUSTING $58.97 To Order
LR016506 HANDLE - SEAT BACK ADJUSTING $58.97 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
ERG500011PVJ COVER - REAR SEAT BRACKET $177.02 To Order
LR008586 COVER - REAR SEAT BRACKET $207.04 To Order
LR016489 COVER - REAR SEAT BRACKET $130.04 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HYH500020 BRACKET - SEAT MOUNTING $9.07 To Order
Photo Part No Description Price (each) Stock
HYH500030 BRACKET $8.04 To Order
Photo Part No Description Price (each) Stock
LR008682 PANEL - REAR SEAT ARMREST $35.90 To Order
HXE500060PVJ PANEL - REAR SEAT ARMREST $26.51 To Order
HXE500060NUG PANEL - REAR SEAT ARMREST $5.37 To Order
...and 17 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HJQ500180NUG SLEEVE - HEADREST GUIDE $5.88 To Order
HJQ500180PVJ SLEEVE - HEADREST GUIDE $5.88 To Order
LR008695 SLEEVE - HEADREST GUIDE $6.69 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
YWU500090 BRACKET $79.57 To Order
Photo Part No Description Price (each) Stock
HTG500270 FRAME $763.87 To Order
Photo Part No Description Price (each) Stock
HTA500250 FRAME $2,946.54 To Order
Photo Part No Description Price (each) Stock
HPH500180PVJ STRAP - RELEASE $4.81 To Order
LR008699 STRAP - SECURING $4.21 To Order
LR016511 STRAP - SECURING $3.40 To Order
Photo Part No Description Price (each) Stock
HPH500110NUG STRAP - RELEASE $2.49 To Order
HPH500110PVJ STRAP - RELEASE $2.94 To Order
LR008700 STRAP - RELEASE $7.50 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HPH500240PVJ STRAP - SECURING $12.64 To Order
View All

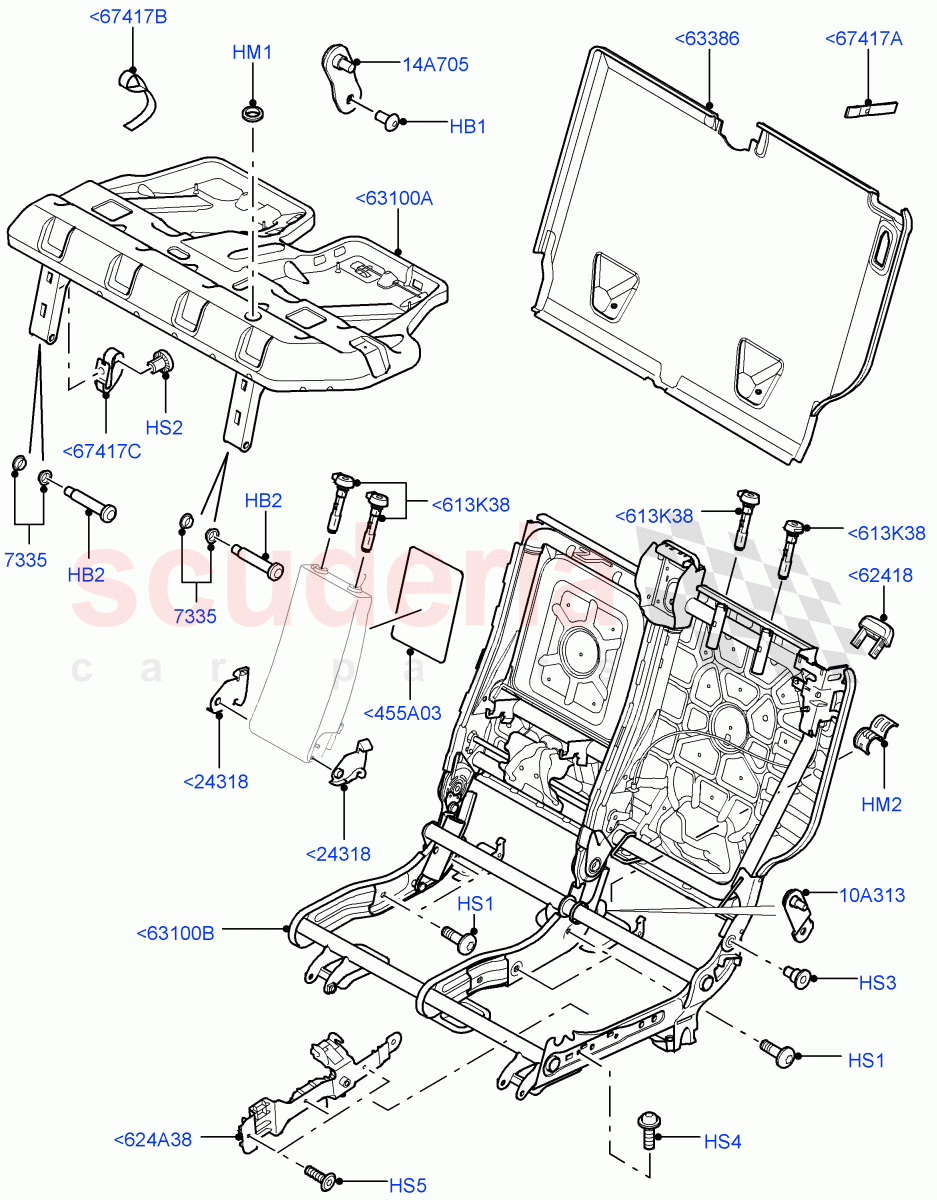

Rear Seat Frame ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<455A03 LR008682
PANEL - REAR SEAT ARMREST
Almond/Nutmeg / Centre Armrest / From: AA000001 		$35.90 1
<455A03 HXE500060PVJ
PANEL - REAR SEAT ARMREST
Ebony Black/Ebony Black Interior / Centre Armrest / From: AA000001 		$26.51 1
<455A03 HXE500060NUG
PANEL - REAR SEAT ARMREST
Ivory/Lunar / Centre Armrest / From: AA000001 / To: BA999999 		$5.37 1
<455A03 LR016519
PANEL - REAR SEAT ARMREST
Ocean / Centre Armrest / From: AA000001 / To: BA999999 		$33.68 1
<455A03 LR016520
PANEL - REAR SEAT ARMREST
Arabica / Centre Armrest / From: AA000001 / To: BA999999 		$34.94 1
<455A03 HXE500050NUG
PANEL - REAR SEAT ARMREST
Ivory/Ocean, Windsor (M-L) / Centre Armrest / From: AA000001 		$24.97 1
<455A03 HXE500050PVJ
PANEL - REAR SEAT ARMREST
Ebony/Pimento Red, Windsor (M-L) / Centre Armrest / From: AA000001 		$35.90 1
<455A03 LR008683
PANEL - REAR SEAT ARMREST
Almond/Arabica, Windsor (M-L) / Centre Armrest / From: AA000001 		$35.90 1
<455A03 LR020385
PANEL - REAR SEAT ARMREST
Cloth Seat Fabric, Ebony Black/Ebony Black Interior / Centre Armrest / From: AA000001 		$37.24 1
<455A03 HXE500050PVJ
PANEL - REAR SEAT ARMREST
Ebony/Lunar, Less DVD Screen, Windsor (M-L) / Centre Armrest / From: CA000001 		$35.90 1
<455A03 LR016520
PANEL - REAR SEAT ARMREST
Arabica/Almond, Less DVD Screen, Windsor (M-L) / Centre Armrest / From: CA000001 		$34.94 1
<455A03 LR016519
PANEL - REAR SEAT ARMREST
Less DVD Screen, Ocean, Taurus Leather/PVC (M-L) / Centre Armrest / From: CA000001 		$33.68 1
<455A03 HXE500060NUG
PANEL - REAR SEAT ARMREST
Ivory/Ocean, Leather/Alcantara, Less DVD Screen / Centre Armrest / From: CA000001 		$5.37 1
<455A03 HXE500050SBB
PANEL - BACK
Extended Windsor, Less DVD Screen, Tan / Centre Armrest / From: CA000001 		$35.90 1
<455A03 LR030203
PANEL - REAR SEAT ARMREST
Ocean, Taurus Leather/PVC (M-L), With Provision For DVD Screen / Centre Armrest / From: CA000001 		$32.43 1
<455A03 LR030204
PANEL - REAR SEAT ARMREST
Extended Windsor, Tan, With Provision For DVD Screen / Centre Armrest / From: CA000001 		$51.92 1
<455A03 LR030210
PANEL - REAR SEAT ARMREST
Ivory, Leather/Alcantara, With Provision For DVD Screen / Centre Armrest / From: CA000001 		$64.83 1
<455A03 LR029967
PANEL - REAR SEAT ARMREST
Almond, Leather/Alcantara, With Provision For DVD Screen / Centre Armrest / From: CA000001 		$32.43 1
<455A03 LR029416
PANEL - REAR SEAT ARMREST
Arabica, Windsor (M-L), With Provision For DVD Screen / Centre Armrest / From: CA000001 		$51.92 1
<455A03 LR029418
PANEL - REAR SEAT ARMREST
Ebony/Pimento Red, Leather/Alcantara, With Provision For DVD Screen / Centre Armrest / From: CA000001 		$81.04 1
<613K38 HJQ500180NUG
SLEEVE - HEADREST GUIDE
Ivory/Ocean / Non Locking / From: AA000001 		$5.88 1
<613K38 HJQ500180PVJ
SLEEVE - HEADREST GUIDE
Ebony / Ivory Interior / Non Locking / From: AA000001 		$5.88 1
<613K38 LR008695
SLEEVE - HEADREST GUIDE
Almond/Nutmeg / Non Locking / From: AA000001 		$6.69 1
<613K38 LR016523
SLEEVE - HEADREST GUIDE
Arabica / Non Locking / From: AA000001 		$3.30 1
<613K38 LR016524
SLEEVE - HEADREST GUIDE
Ocean / Non Locking / From: AA000001 		$3.30 1
<613K38 LR016525
SLEEVE - HEADREST GUIDE
Arabica / Locking Type / From: AA000001 		$3.30 1
<613K38 LR016526
SLEEVE - HEADREST GUIDE
Ocean / Locking Type / From: AA000001 		$32.84 1
<613K38 LR008696
SLEEVE - HEADREST GUIDE
Almond/Nutmeg / Locking Type / From: AA000001 		$6.69 1
<613K38 HJQ500190NUG
SLEEVE - HEADREST GUIDE
Ivory/Ocean / Locking Type / From: AA000001 		$5.88 1
<613K38 HJQ500190PVJ
SLEEVE - HEADREST GUIDE
Ebony / Ivory Interior / Locking Type / From: AA000001 		$5.88 1
<613K38 LR016523
SLEEVE - HEADREST GUIDE
Arabica/Almond / Non Locking / From: BA717000 		$3.30 2
<613K38 LR016525
SLEEVE - HEADREST GUIDE
Arabica/Almond / Locking Type / From: BA717000 		$3.30 2
<624A38 YWU500090
BRACKET
With Heated Seats - Front/Rear / ECU / From: AA000001 		$79.57 1
<24318 HLM500100
MOULDING - SEAT BACK
RH, Centre Armrest / From: AA000001 		$5.50 1
<24318 HLM500110
MOULDING - SEAT BACK
LH, Centre Armrest / From: AA000001 		$5.50 1
<62418 HXG500290NUG
HANDLE - SEAT BACK ADJUSTING
Ivory/Ocean / From: AA000001 		$38.80 1
<62418 HXG500290PVJ
HANDLE - SEAT BACK ADJUSTING
Ebony / Ivory Interior / From: AA000001 		$58.97 1
<62418 LR016506
HANDLE - SEAT BACK ADJUSTING
Arabica / From: AA000001 		$58.97 1
<62418 LR016507
HANDLE - SEAT BACK ADJUSTING
Ocean / From: AA000001 		$33.92 1
<62418 LR008691
HANDLE - SEAT BACK ADJUSTING
Almond/Nutmeg / From: AA000001 		$61.22 1
<63100A HTG500270
FRAME
Large / From: AA000001 		$763.87 1
<63100B HTA500250
FRAME
Large / From: AA000001 		$2,946.54 1
<63386 ERG500011PVJ
COVER - REAR SEAT BRACKET
Int Ebony Carpet / For Seat Back, Large / From: AA000001 / To: AA257641 		$177.02 1
<63386 LR008586
COVER - REAR SEAT BRACKET
Interior Nutmeg Carpet - LR / For Seat Back, Large / From: AA000001 / To: AA257641 		$207.04 1
<63386 LR016489
COVER - REAR SEAT BRACKET
Interior Ocean Carpet / For Seat Back, Large / From: AA000001 / To: AA257641 		$130.04 1
<63386 LR021543
COVER - REAR SEAT BRACKET
Interior Ocean Carpet / For Seat Back, Large / From: AA257642 		$141.74 1
<63386 LR021545
COVER - REAR SEAT BRACKET
Interior Nutmeg Carpet - LR / For Seat Back, Large / From: AA257642 		$141.74 1
<63386 LR021544
COVER - REAR SEAT BRACKET
Int Ebony Carpet / For Seat Back, Large / From: AA257642 		$141.74 1
<67417A HPH500180PVJ
STRAP - RELEASE
Int Ebony Carpet / From: AA000001 		$4.81 1
<67417A LR008699
STRAP - SECURING
Interior Nutmeg Carpet - LR / From: AA000001 		$4.21 1
<67417A LR016511
STRAP - SECURING
Interior Ocean Carpet / From: AA000001 		$3.40 1
<67417B HPH500110NUG
STRAP - RELEASE
Ivory/Ocean / For Seat Cushion / From: AA000001 		$2.49 1
<67417B HPH500110PVJ
STRAP - RELEASE
Ebony / Ivory Interior / For Seat Cushion / From: AA000001 		$2.94 1
<67417B LR008700
STRAP - RELEASE
Almond/Nutmeg / For Seat Cushion / From: AA000001 		$7.50 1
<67417B LR016512
STRAP - RELEASE
Arabica / For Seat Cushion / From: AA000001 		$3.51 1
<67417B LR016513
STRAP - RELEASE
Ocean / For Seat Cushion / From: AA000001 		$3.51 1
<67417C HPH500240PVJ
STRAP - SECURING
From: AA000001 		$12.64 1
HB1 HYG500200
BOLT
M10, Torx / From: AA000001 		$5.48 1
HB2 HYG500160
BOLT
M10, Torx / From: AA000001 		$4.02 4
HM1 HYA000020
GROMMET
With Heated Seats - Front/Rear / Grommet / From: AA000001 		$1.14 1
HM2 HZT500020
BUSH
Rear Bush / From: AA000001 		$2.77 1
HS1 HYG500270
BOLT
M10 X 25MM, Torx / From: AA000001 		$1.04 5
HS2 HYG500280
SCREW
M8, Torx / From: AA000001 		$0.77 1
HS3 HYG500380
SCREW
M10 / From: AA000001 		$6.06 1
HS4 HYP500370
SCREW
M10 X 1.5, Torx / From: AA000001 		$1.81 7
HS5 HYP500150
SCREW
16MM, Torx / From: AA000001 		$0.76 4
10A313 HYH500020
BRACKET - SEAT MOUNTING
Bracket to frame / From: AA000001 		$9.07 1
14A705 HYH500030
BRACKET
Seat Belt Anchor / From: AA000001 		$8.04 1
7335 HZT500030
BUSH
From: AA000001 		$2.75 8
