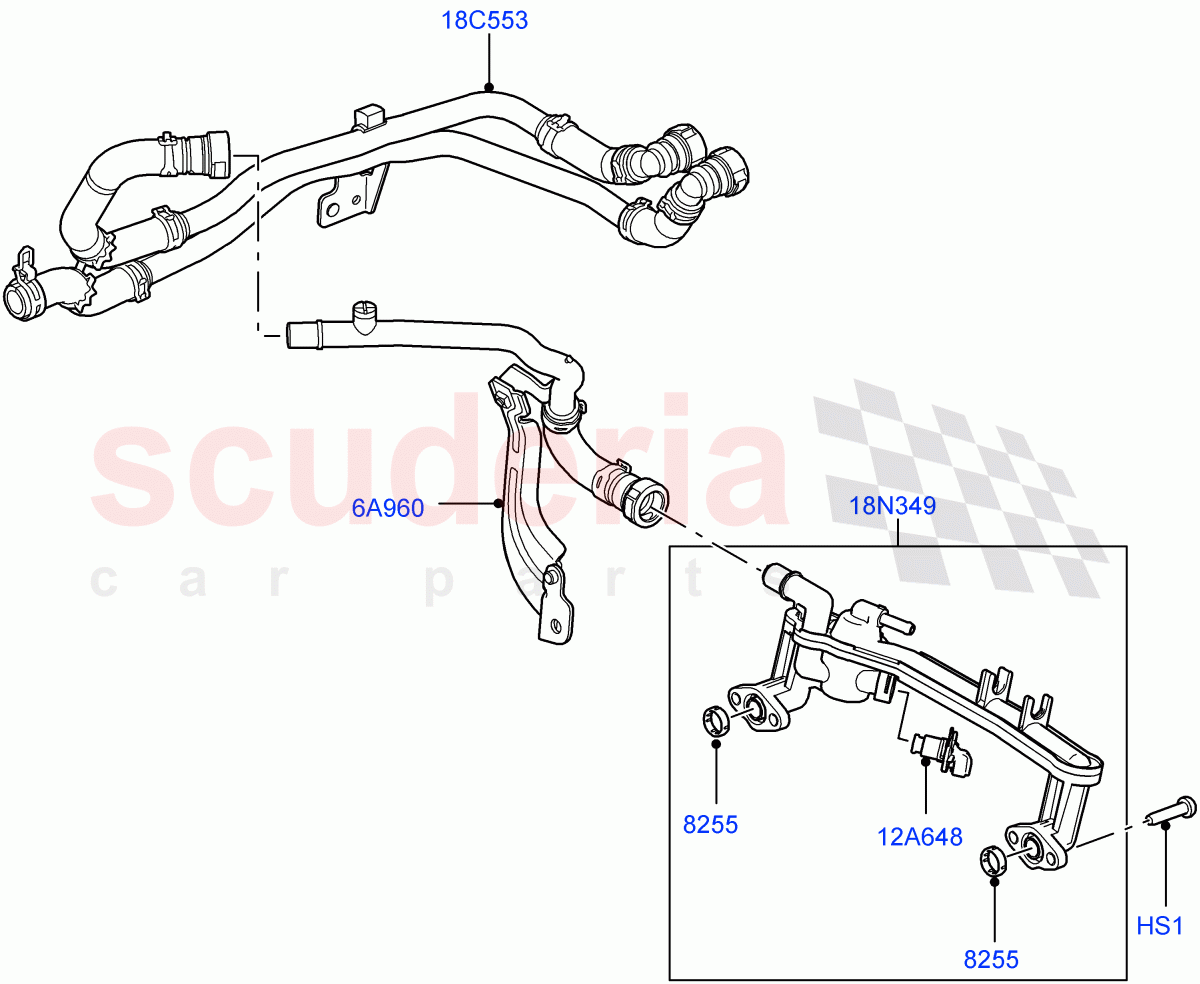

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011270	SCREW	$1.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010793	GASKET - WATER MANIFOLD	$9.74	To Order

Photo	Part No	Description	Price (each)	Stock
	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	$64.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013670	HOSE	$136.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122709	MANIFOLD - HEATER	$143.95	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR011270	SCREW IN STOCK	LR011270 SCREW M6 x 25MM, To Engine, Torx / From: AA000001 IN STOCK	$1.26	4
6A960	LR017802	HOSE AND BRACKET	LR017802 HOSE AND BRACKET Includes Hose, To Engine, To Heater Hoses / From: AA000001 / To: CA737803	$131.27	1
6A960	LR031393	HOSE AND BRACKET	LR031393 HOSE AND BRACKET Includes Hose, To Engine, To Heater Hoses / From: CA737804	$121.13	1
12A648	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	4346360 SENSOR - ENGINE COOLANT TEMPERATURE From: AA000001 / To: CA999999	$64.71	1
18C553	LR013670	HOSE	LR013670 HOSE To Heater Hoses, To Heater Matrix / From: AA000001	$136.40	1
18N349	LR122709	MANIFOLD - HEATER	LR122709 MANIFOLD - HEATER Heater, Tube From Engine Block To Heater Inlet Hose, With Sensor / From: AA000001	$143.95	1
8255	LR010793	GASKET - WATER MANIFOLD	LR010793 GASKET - WATER MANIFOLD To Engine / From: AA000001	$9.74	2
