Electrical Wiring - Engine And Dash (Engine) (3.0L 24V Dohc V6 Tc Diesel) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] - Electrical Wiring - Engine And Dash (Engine) (3.0L 24V DOHC V6 TC Diesel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR013463 WIRE $1,427.98 To Order
LR036070 WIRING - ENGINE $2,097.83 To Order
LR046068 WIRING - ENGINE $1,134.95 To Order
Photo Part No Description Price (each) Stock
LR019359 WIRING - ENGINE COMPARTMENT $26.98 To Order
LR020135 WIRING - ENGINE COMPARTMENT $29.14 To Order
View All

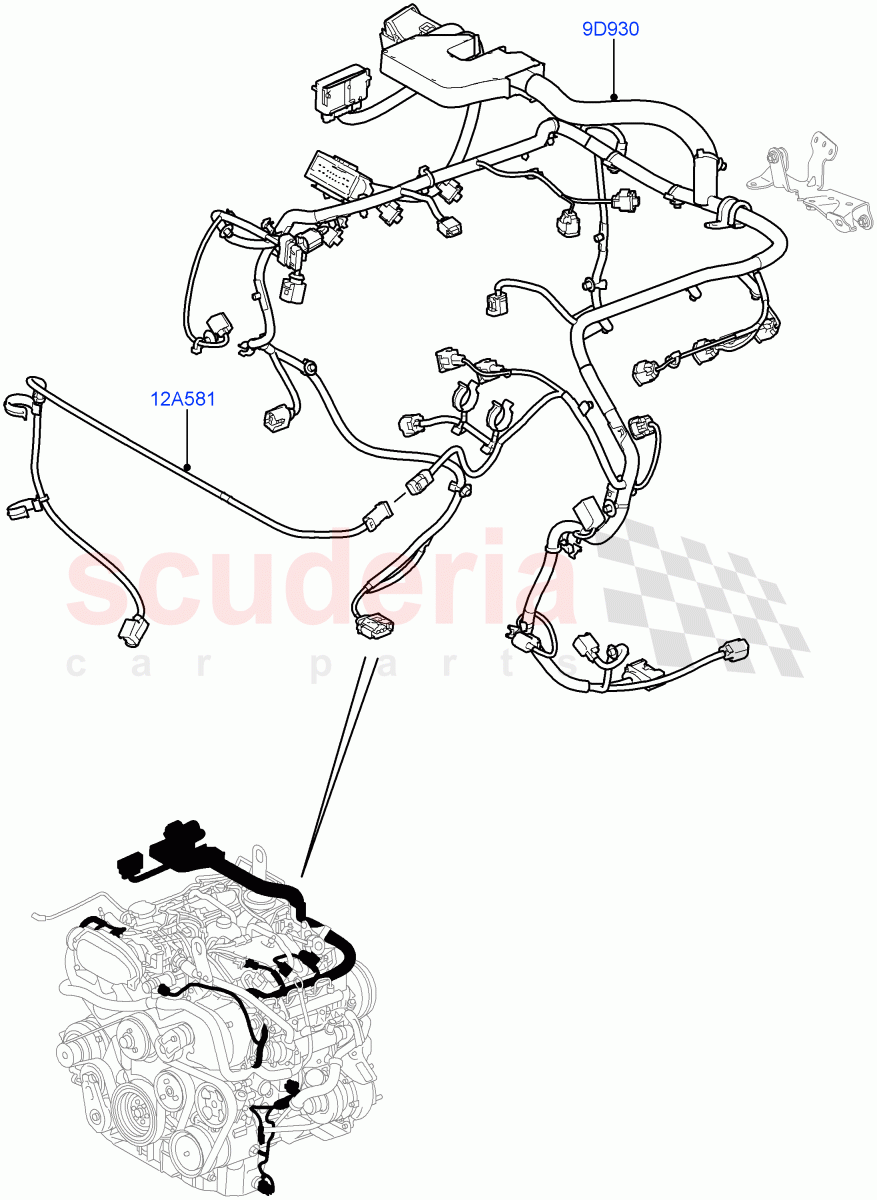

Electrical Wiring - Engine And Dash (Engine) (3.0L 24V DOHC V6 TC Diesel) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
9D930 LR013463
WIRE
Engine / From: AA000001 / To: BA999999 		$1,427.98 1
9D930 LR036070
WIRING - ENGINE
Engine / From: CA000001 / To: CA999999 		$2,097.83 1
9D930 LR046068
WIRING - ENGINE
Engine / From: DA000001 		$1,134.95 1
12A581 LR019359
WIRING - ENGINE COMPARTMENT
Compressed Air Recirculation, Valve Assembly / From: AA000001 / To: AA231150 		$26.98 1
12A581 LR020135
WIRING - ENGINE COMPARTMENT
Compressed Air Recirculation, Valve Assembly / From: AA231151 		$29.14 1
