Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] - Fuel Tank & Related Parts (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)

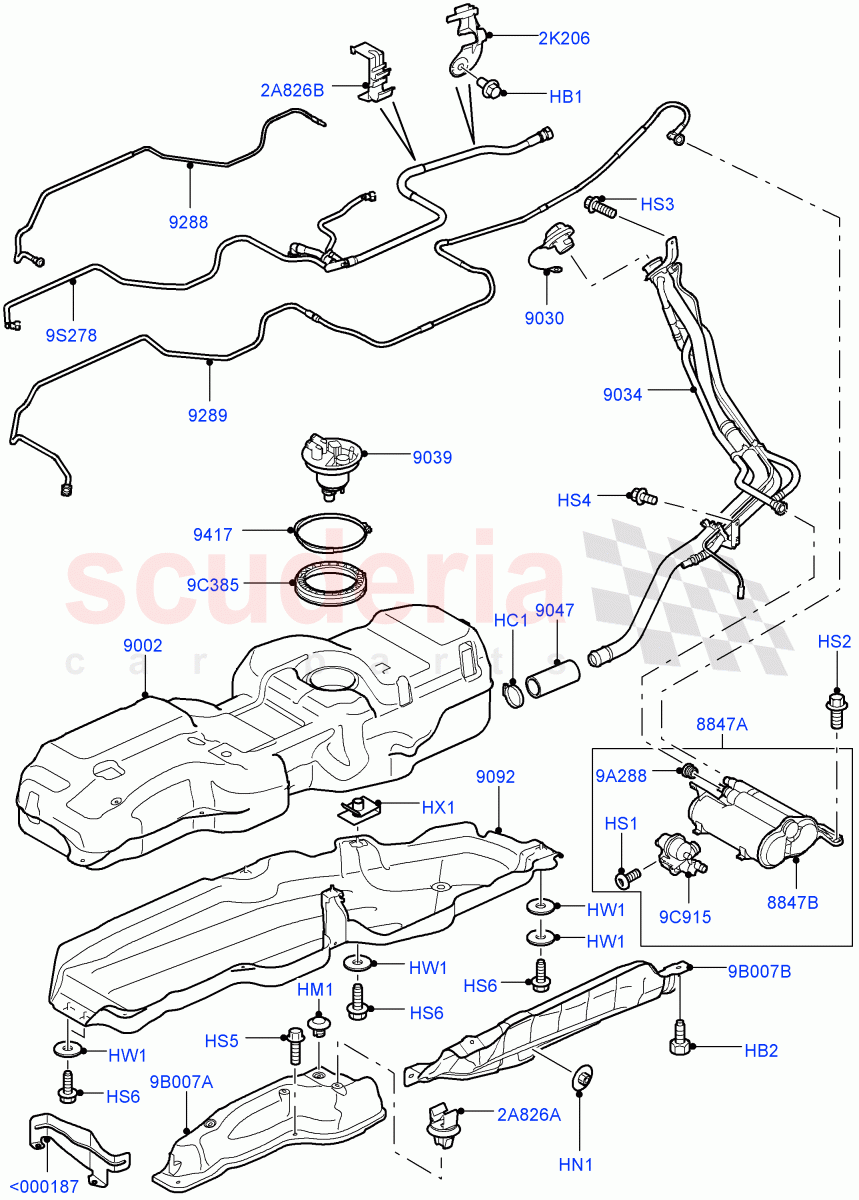

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
SN106127L BOLT $0.65 To Order
Photo Part No Description Price (each) Stock
WYP500100 SCREW $0.78 To Order
Photo Part No Description Price (each) Stock
CN100509 CLIP $1.60 To Order
Photo Part No Description Price (each) Stock
WYQ000010 RIVET - PLASTIC $5.85 IN STOCK
Photo Part No Description Price (each) Stock
WYH500050 NUT - LOCKING $2.67 IN STOCK
Photo Part No Description Price (each) Stock
RYP500020 SCREW $0.52 To Order
Photo Part No Description Price (each) Stock
KYP500330 SCREW $0.40 To Order
Photo Part No Description Price (each) Stock
RYP500190 SCREW $0.65 IN STOCK
Photo Part No Description Price (each) Stock
FS108126 SCREW $1.36 IN STOCK
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
RYG500270 SCREW $2.82 To Order
Photo Part No Description Price (each) Stock
WJ110006 WASHER $1.41 To Order
Photo Part No Description Price (each) Stock
KYH500100 NUT - SPRING $1.64 To Order
Photo Part No Description Price (each) Stock
LR016241 TANK - FUEL $1,192.74 To Order
Photo Part No Description Price (each) Stock
WLD500370 CAP - FUEL TANK FILLER $20.99 To Order
LR181511 CAP - FUEL TANK FILLER $39.25 To Order
Photo Part No Description Price (each) Stock
LR013825 FILLER - FUEL TANK $346.06 To Order
LR013826 FILLER - FUEL TANK $327.59 To Order
LR025319 FILLER NECK $396.55 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR043420 COVER - DUST $156.37 To Order
LR028456 COVER - DUST $162.11 To Order
LR043420 COVER - DUST $156.37 To Order
Photo Part No Description Price (each) Stock
LR010621 HOSE - FILLER PIPE $63.60 To Order
Photo Part No Description Price (each) Stock
WFN500021 STRAP - FUEL TANK $210.90 IN STOCK
Photo Part No Description Price (each) Stock
LR015379 HOSE $225.54 To Order
Photo Part No Description Price (each) Stock
LR016266 TUBE - FUEL $134.44 To Order
Photo Part No Description Price (each) Stock
LR117476 GASKET $10.54 IN STOCK
Photo Part No Description Price (each) Stock
WFU500020 BRACKET $3.30 To Order
Photo Part No Description Price (each) Stock
LR176866 CANISTER - FUEL MIX $289.40 To Order
Photo Part No Description Price (each) Stock
LR013717 CANISTER - FUEL MIX $138.18 To Order
LR013720 CANISTER - FUEL MIX $166.97 IN STOCK
Photo Part No Description Price (each) Stock
LR003198 INSULATOR - CHARCOAL CANISTER $7.78 To Order
Photo Part No Description Price (each) Stock
LR013771 RING - RETAINING $31.11 To Order
Photo Part No Description Price (each) Stock
LR174757 VALVE - CONTROL $192.01 To Order
Photo Part No Description Price (each) Stock
LR021909 TUBE - FUEL VAPOUR $576.57 To Order
LR016260 TUBE - BREATHER $97.06 To Order
Photo Part No Description Price (each) Stock
SPV500020 CLIP $1.09 To Order
Photo Part No Description Price (each) Stock
LR014156 CLIP - PARKING BRAKE CABLE $1.92 To Order
Photo Part No Description Price (each) Stock
WFZ500034 SHIELD $34.14 To Order
Photo Part No Description Price (each) Stock
WFZ500130 SHIELD $70.93 To Order
Photo Part No Description Price (each) Stock
LR014162 SHIELD - FUEL TANK $11.20 To Order
View All
Fuel Tank & Related Parts (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<000187 LR014162
SHIELD - FUEL TANK
Front / From: AA000001 		$11.20 1
HB1 SN106127L
BOLT
M6 / From: AA000001 		$0.65 1
HB2 WYP500100
SCREW
Hexagonal Head, M6 / From: AA000001 		$0.78 3
HC1 CN100509
CLIP
Hose Clamp / From: AA000001 		$1.60 1
HM1 WYQ000010
RIVET - PLASTIC
Plastic, Rivet Type / From: AA000001
IN STOCK 		$5.85 2
HN1 WYH500050
NUT - LOCKING
M5 / From: AA000001
IN STOCK 		$2.67 2
HS1 RYP500020
SCREW
(+)"CDN/MEX/USA" / M5 X 12MM / From: AA000001 		$0.52 1
HS2 KYP500330
SCREW
M8 X 25MM / From: AA000001 		$0.40 2
HS3 RYP500190
SCREW
Hexagonal Head, M6 x 12MM / From: AA000001
IN STOCK 		$0.65 1
HS4 FS108126
SCREW
HEX Flange, M8 x 12MM / From: AA000001
IN STOCK 		$1.36 1
HS5 FS106206
SCREW
Hexagonal Head, M6 X 20MM / From: AA000001
IN STOCK 		$0.96 2
HS6 RYG500270
SCREW
Hexagonal Head, M10 X 25MM / From: AA000001 		$2.82 6
HW1 WJ110006
WASHER
10 MM / From: AA000001 		$1.41 7
HX1 KYH500100
NUT - SPRING
Fuel Tank Attaching, M10, Nut "U" Spring / From: AA000001 		$1.64 2
2A826A SPV500020
CLIP
For 		$1.09 2
2A826B LR014156
CLIP - PARKING BRAKE CABLE
From: AA000001 		$1.92 1
2K206 WFU500020
BRACKET
From: AA000001 		$3.30 1
9A288 LR003198
INSULATOR - CHARCOAL CANISTER
(+)"CDN/MEX/USA" / From: AA000001 		$7.78 1
9B007A WFZ500034
SHIELD
LH, Upper / From: AA000001 		$34.14 1
9B007B WFZ500130
SHIELD
LH / From: AA000001 		$70.93 1
9C385 LR013771
RING - RETAINING
From: AA000001 		$31.11 1
9C915 LR174757
VALVE - CONTROL
(+)"CDN/MEX/USA" / Pump - Diagnostic Monitoring Tank Leakage / From: AA000001 		$192.01 1
9S278 LR021909
TUBE - FUEL VAPOUR
Breather Pipe / From: AA247657 		$576.57 1
9S278 LR016260
TUBE - BREATHER
Breather Pipe / From: AA000001 / To: AA247656 		$97.06 1
8847A LR176866
CANISTER - FUEL MIX
(+)"CDN/MEX/USA" / From: AA000001 		$289.40 1
8847B LR013717
CANISTER - FUEL MIX
(-)"CDN/MEX/USA" / From: AA000001 		$138.18 1
8847B LR013720
CANISTER - FUEL MIX
(+)"CDN/MEX/USA" / From: AA000001
IN STOCK 		$166.97 1
9002 LR016241
TANK - FUEL
From: AA000001 		$1,192.74 1
9030 WLD500370
CAP - FUEL TANK FILLER
From: AA000001 / To: AA235648 		$20.99 1
9030 LR181511
CAP - FUEL TANK FILLER
From: AA235649 		$39.25 1
9034 LR013825
FILLER - FUEL TANK
(+)"CDN/MEX/USA" / From: AA000001 / To: BA270634 		$346.06 1
9034 LR013826
FILLER - FUEL TANK
(-)"CDN/MEX/USA" / From: AA000001 / To: BA270634 		$327.59 1
9034 LR025319
FILLER NECK
(+)"CDN/MEX/USA" / From: BA270635 / To: DA773066 		$396.55 1
9034 LR025320
FILLER - FUEL TANK
(-)"CDN/MEX/USA" / From: BA270635 / To: DA773066 		$374.05 1
9034 LR043412
FILLER - FUEL TANK
(+)"CDN/MEX/USA" / From: DA773067 / To: DA785614 		$467.76 1
9034 LR043413
FILLER - FUEL TANK
(-)"CDN/MEX/USA" / From: DA773067 / To: DA785614 		$349.71 1
9034 LR045066
FILLER - FUEL TANK
(+)"CDN/MEX/USA" / From: DA785615 		$467.76 1
9034 LR045067
FILLER - FUEL TANK
(-)"CDN/MEX/USA" / From: DA785615 		$376.33 1
9039 LR043420
COVER - DUST
From: AA000001 / To: BA702400 		$156.37 1
9039 LR028456
COVER - DUST
From: BA702401 / To: CA750958 		$162.11 1
9039 LR043420
COVER - DUST
From: CA750959 		$156.37 1
9047 LR010621
HOSE - FILLER PIPE
From: AA000001 		$63.60 1
9092 WFN500021
STRAP - FUEL TANK
Fuel Tank, Lower / From: AA000001
IN STOCK 		$210.90 1
9288 LR015379
HOSE
Feed / From: AA000001 		$225.54 1
9289 LR016266
TUBE - FUEL
Vapour Line / From: AA000001 		$134.44 1
9417 LR117476
GASKET
O-Ring / From: AA000001
IN STOCK 		$10.54 1
