Cylinder Head Cover (5.0L Ohc Sgdi Na V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] - Cylinder Head Cover (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)

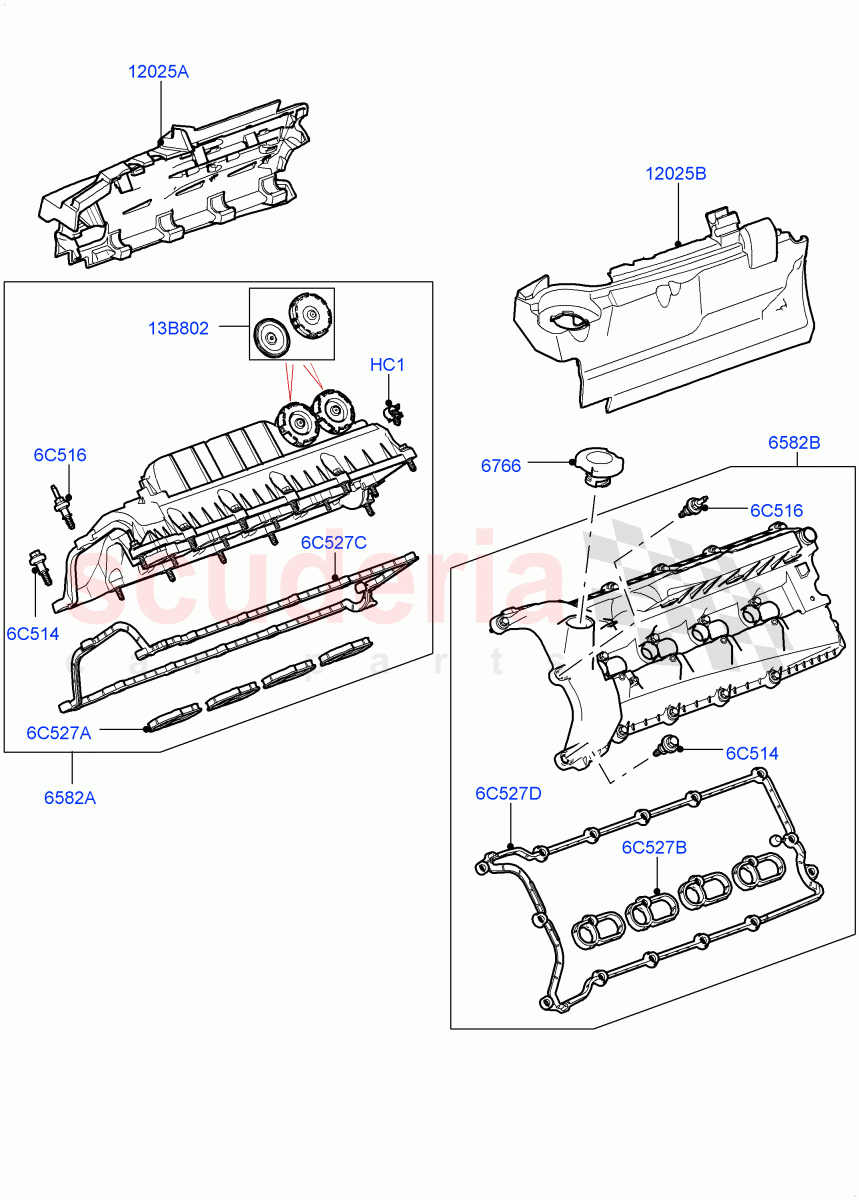

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR008882 CLIP $3.01 To Order
Photo Part No Description Price (each) Stock
LR010731 CAP - OIL FILLER $11.99 To Order
Photo Part No Description Price (each) Stock
LR010780 COVER - CYLINDER HEAD FRONT $184.51 To Order
LR187029 COVER - CAMSHAFT $300.07 To Order
LR038166 Cover - Camshaft $300.07 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR010784 COVER - CYLINDER HEAD $170.36 To Order
LR113202 COVER - CYLINDER HEAD $300.07 To Order
Photo Part No Description Price (each) Stock
LR011350 SCREW AND SLEEVE - VALVE COVER $3.07 To Order
Photo Part No Description Price (each) Stock
LR011351 STUD AND SLEEVE - VALVE COVER $4.44 To Order
Photo Part No Description Price (each) Stock
LR015293 COVER - IGNITION COIL $77.58 To Order
LR178584 COVER - IGNITION COIL $73.76 To Order
Photo Part No Description Price (each) Stock
LR010686 COVER - IGNITION COIL $166.73 To Order
LR107647 COVER - IGNITION COIL $81.29 To Order
Photo Part No Description Price (each) Stock
102123488 SERVICE KIT - PCV VALVE $41.26 To Order
Photo Part No Description Price (each) Stock
LR011220 GASKET - SPARK PLUG APERTURE $24.40 IN STOCK
Photo Part No Description Price (each) Stock
LR014345 GASKET - SPARK PLUG APERTURE $24.40 IN STOCK
Photo Part No Description Price (each) Stock
LR010882 GASKET - CAMSHAFT COVER $61.61 IN STOCK
Photo Part No Description Price (each) Stock
LR010789 GASKET - CAMSHAFT COVER $67.45 IN STOCK
View All
Cylinder Head Cover (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR008882
CLIP
Cable Anchor Clip (Single) / From: AA000001 		$3.01 1
6C514 LR011350
SCREW AND SLEEVE - VALVE COVER
Grommet Included / From: AA000001 		$3.07 33
6C516 LR011351
STUD AND SLEEVE - VALVE COVER
Grommet Included 		$4.44 3
6C527A LR011220
GASKET - SPARK PLUG APERTURE
RH Side Only, Spark Ignition / From: AA000001
IN STOCK 		$24.40 4
6C527B LR014345
GASKET - SPARK PLUG APERTURE
LH Side Only, Spark Ignition / From: AA000001
IN STOCK 		$24.40 4
6C527C LR010882
GASKET - CAMSHAFT COVER
RH, Camshaft Cover / From: AA000001
IN STOCK 		$61.61 1
6C527D LR010789
GASKET - CAMSHAFT COVER
LH, Camshaft Cover / From: AA000001
IN STOCK 		$67.45 1
13B802 102123488
SERVICE KIT - PCV VALVE
Includes Diaphragm And Cap / From: AA000001 		$41.26 2
6582A LR010780
COVER - CYLINDER HEAD FRONT
RH / From: AA000001 / To: CA739136 		$184.51 1
6582A LR187029
COVER - CAMSHAFT
RH / From: CA739137 / To: CA750449 		$300.07 1
6582A LR038166
Cover - Camshaft
RH / From: CA750450 / To: DA760632 		$300.07 1
6582A LR041443
COVER - CAMSHAFT
RH / From: DA760633 		$301.50 1
6582B LR010784
COVER - CYLINDER HEAD
LH / From: AA000001 / To: CA739136 		$170.36 1
6582B LR113202
COVER - CYLINDER HEAD
LH / From: CA739137 		$300.07 1
6766 LR010731
CAP - OIL FILLER
From: AA000001 		$11.99 1
12025A LR015293
COVER - IGNITION COIL
RH / From: AA000001 / To: CA999999 		$77.58 1
12025A LR178584
COVER - IGNITION COIL
RH / From: DA000001 		$73.76 1
12025B LR010686
COVER - IGNITION COIL
LH / From: AA000001 / To: CA999999 		$166.73 1
12025B LR107647
COVER - IGNITION COIL
LH / From: DA000001 		$81.29 1
