Name: Thermostat/Housing & Related Parts (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)
Rating: 4.4 (1 reviews)

Thermostat/Housing & Related Parts (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] - Thermostat/Housing & Related Parts (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)

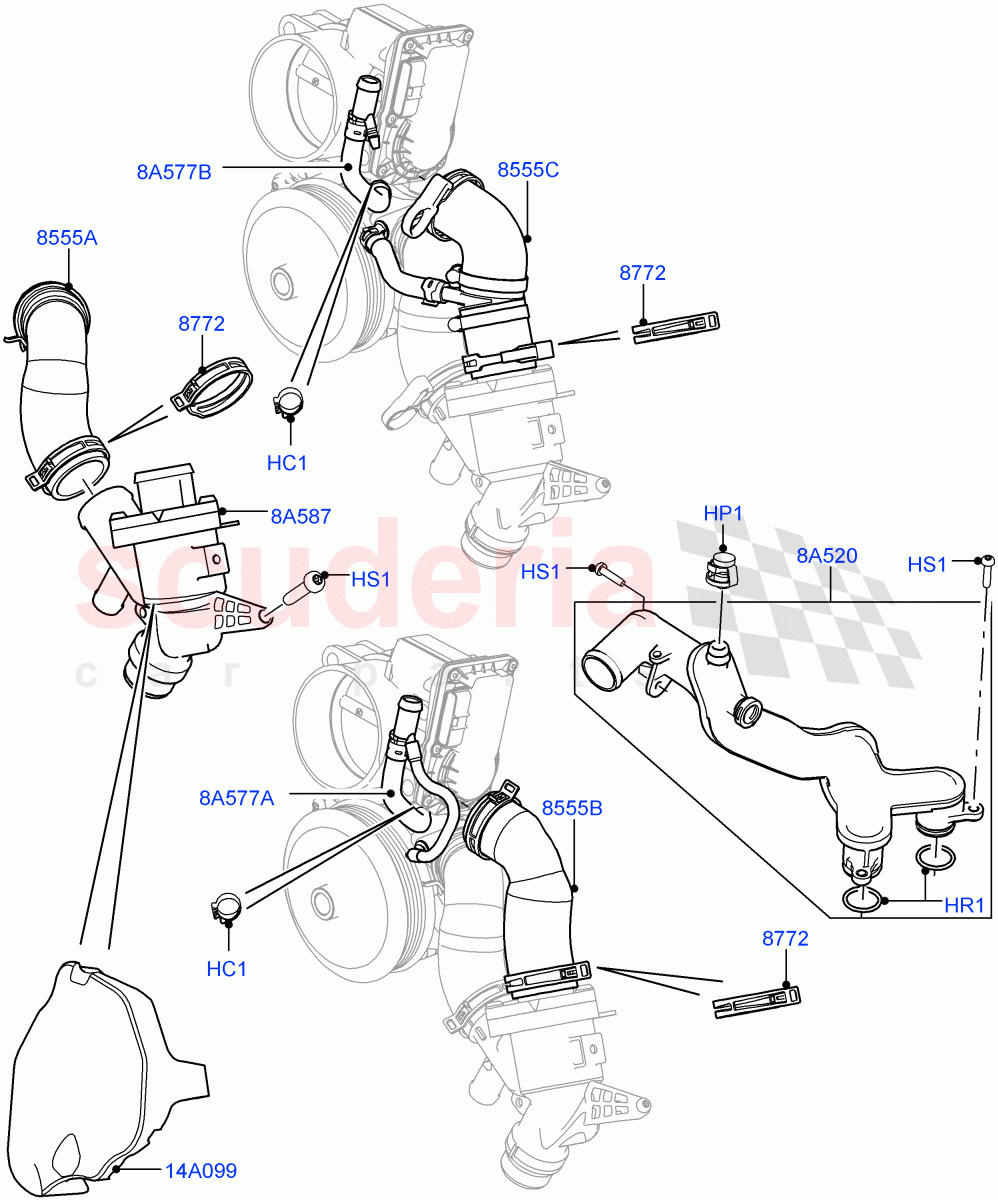

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011158	CLIP - HOSE	$3.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011038	PLUG - BLANKING	$5.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010800	O-RING	$6.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011270	SCREW	$1.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034109	CLAMP - HOSE	$8.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010794	TUBE	$20.21	To Order
	LR033994	TUBE - WATER OUTLET	$22.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010795	TUBE	$20.62	To Order
	LR033995	TUBE - WATER OUTLET	$18.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049989	TUBE - WATER OUTLET	$71.96	IN STOCK
	LR049989	TUBE - WATER OUTLET	$71.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR018275	TUBE - WATER OUTLET	$71.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010799	THERMOSTAT AND HOUSING	$69.38	To Order
	LR032135	THERMOSTAT AND HOUSING	$104.85	IN STOCK
	LR032135	THERMOSTAT AND HOUSING	$104.85	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR012780	SHIELD	$103.45	To Order
	LR051007	SHIELD - PROTECTION	$101.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012636	HOSE - THROTTLE BODY HEATER OUTLET	$28.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045238	HOSE - THROTTLE BODY HEATER OUTLET	$51.34	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR011158	CLIP - HOSE	LR011158 CLIP - HOSE 13-14 X 8, Hose - Throttle Body Heater / From: AA000001	$3.20	1
HP1	LR011038	PLUG - BLANKING	LR011038 PLUG - BLANKING Blanking, Cooling System Bleed / From: AA000001	$5.15	1
HR1	LR010800	O-RING IN STOCK	LR010800 O-RING Ring - Sealing - Tube Water Outlet From Cylinder Block / From: AA000001 IN STOCK	$6.66	2
HS1	LR011270	SCREW	LR011270 SCREW M6 x 25MM, Torx / From: AA000001	$1.24	3
8A520	LR018275	TUBE - WATER OUTLET IN STOCK	LR018275 TUBE - WATER OUTLET Includes O-Ring, Tube Water Outlet To Cylinder Block / From: AA000001 IN STOCK	$71.50	1
8A577A	LR012636	HOSE - THROTTLE BODY HEATER OUTLET	LR012636 HOSE - THROTTLE BODY HEATER OUTLET Hose - Throttle Body Heater, Outlet / From: AA000001 / To: CA999999	$28.99	1
8A577B	LR045238	HOSE - THROTTLE BODY HEATER OUTLET	LR045238 HOSE - THROTTLE BODY HEATER OUTLET Hose - Throttle Body Heater, Outlet / From: DA000001	$51.34	1
8A587	LR010799	THERMOSTAT AND HOUSING	LR010799 THERMOSTAT AND HOUSING Thermostat And Housing Assy / From: AA000001 / To: AA228465	$69.38	1
8A587	LR032135	THERMOSTAT AND HOUSING IN STOCK	LR032135 THERMOSTAT AND HOUSING Thermostat And Housing Assy / From: AA228466 / To: CA739136 IN STOCK	$104.85	1
8A587	LR032135	THERMOSTAT AND HOUSING IN STOCK	LR032135 THERMOSTAT AND HOUSING Thermostat And Housing Assy / From: CA739137 IN STOCK	$104.85	1
14A099	LR012780	SHIELD	LR012780 SHIELD Engine Air Deflector / From: AA000001 / To: CA999999	$103.45	1
14A099	LR051007	SHIELD - PROTECTION	LR051007 SHIELD - PROTECTION Engine Air Deflector / From: DA000001	$101.98	1
8555A	LR010794	TUBE	LR010794 TUBE From Water Pump To Thermostat, With Clamps / From: AA000001 / To: CA739136	$20.21	1
8555A	LR033994	TUBE - WATER OUTLET IN STOCK	LR033994 TUBE - WATER OUTLET From Water Pump To Thermostat, With Clamps / From: CA739137 IN STOCK	$22.96	1
8555B	LR010795	TUBE	LR010795 TUBE Thermostat To Engine, With Clamps / From: AA000001 / To: CA739136	$20.62	1
8555B	LR033995	TUBE - WATER OUTLET	LR033995 TUBE - WATER OUTLET Thermostat To Engine, With Clamps / From: CA739137 / To: CA999999	$18.95	1
8555C	LR049989	TUBE - WATER OUTLET IN STOCK	LR049989 TUBE - WATER OUTLET Thermostat To Engine, With Clamps / From: DA000001 / To: DA810000 IN STOCK	$71.96	1
8555C	LR049989	TUBE - WATER OUTLET IN STOCK	LR049989 TUBE - WATER OUTLET Thermostat To Engine, With Clamps / From: DA810001 IN STOCK	$71.96	1
8772	LR034109	CLAMP - HOSE	LR034109 CLAMP - HOSE 49MM / From: AA000001	$8.54	2
