Steering Gear ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Steering Gear ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FC114136 BOLT $5.54 To Order
Photo Part No Description Price (each) Stock
QYH500160 NUT - FLANGED $5.04 To Order
Photo Part No Description Price (each) Stock
QYH500040 NUT $8.00 To Order
QYH000021 NUT $1.95 To Order
Photo Part No Description Price (each) Stock
LR017002 NUT $6.08 To Order
Photo Part No Description Price (each) Stock
QFK500030 ROD - SPINDLE CONNECTING $168.09 To Order
Photo Part No Description Price (each) Stock
LR028450 GEAR - STEERING $2,240.73 To Order
LR028451 GEAR - STEERING $2,420.08 To Order
LR031744 GEAR - STEERING $4,450.47 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
QFW500030 KIT - STEERING GEAR REPAIR $125.56 To Order
Photo Part No Description Price (each) Stock
QFW500020 BOOT $89.36 To Order
Photo Part No Description Price (each) Stock
LR010373 ACTUATOR $360.29 To Order
LR010372 ACTUATOR $216.98 To Order
Photo Part No Description Price (each) Stock
LR032372 CLAMP - BOOT $3.76 To Order
Photo Part No Description Price (each) Stock
LR010673 KIT - STEERING GEAR TIE ROD REPAIR $472.19 To Order
Photo Part No Description Price (each) Stock
LR010676 JOINT - BALL $252.68 To Order
Photo Part No Description Price (each) Stock
QJB500070 END - SPINDLE ROD CONNECTING $256.56 To Order
View All

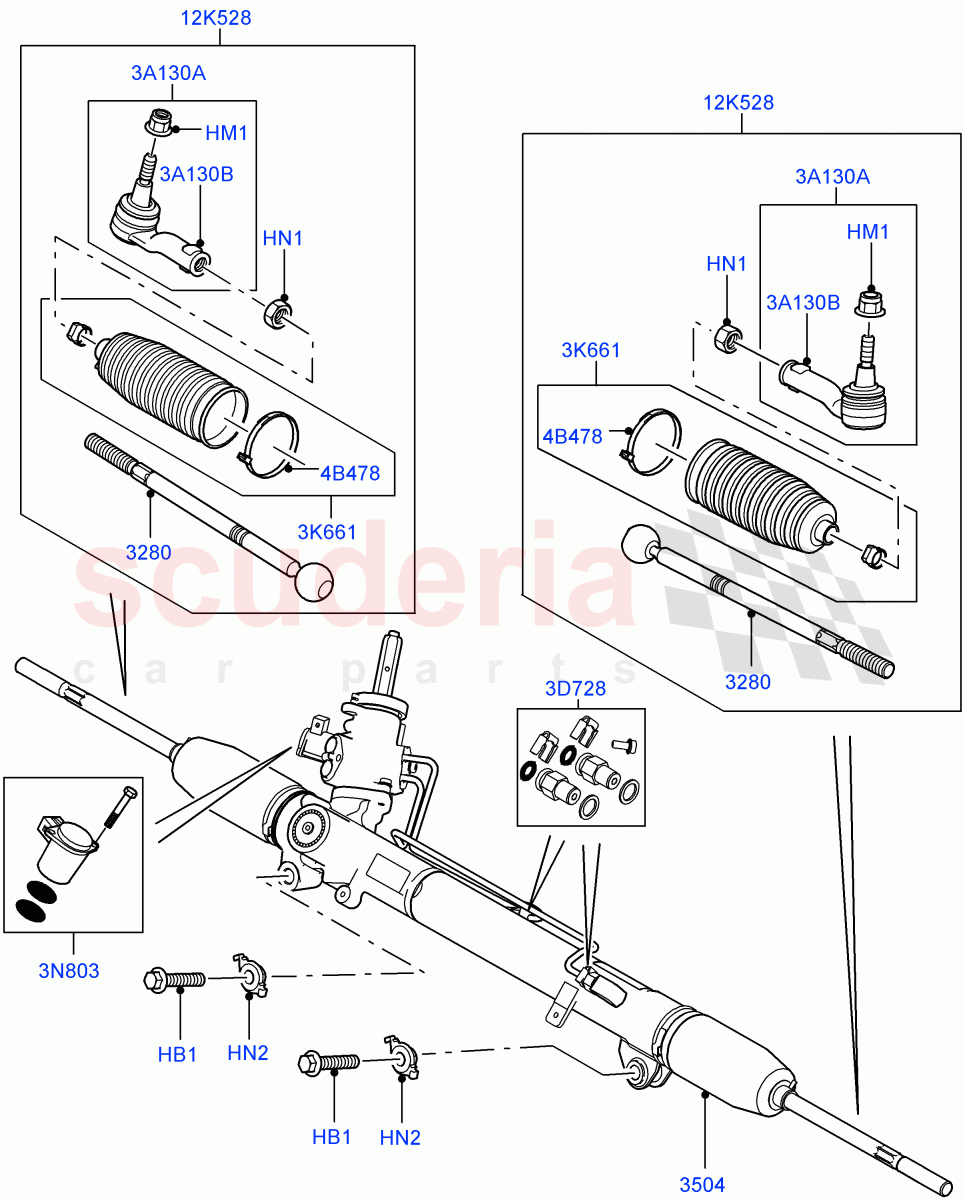

Steering Gear ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FC114136
BOLT
M14 X 1.5 X 65MM / From: AA000001 		$5.54 2
HM1 QYH500160
NUT - FLANGED
M14 / From: AA000001 		$5.04 2
HN1 QYH500040
NUT
Locking / From: AA000001 / To: DA784395 		$8.00 2
HN1 QYH000021
NUT
Locking, M16 / From: DA784396 		$1.95 2
HN2 LR017002
NUT
M14 / From: AA000001 		$6.08 2
3A130A LR010676
JOINT - BALL
Includes attaching nut / From: AA000001 		$252.68 2
3A130B QJB500070
END - SPINDLE ROD CONNECTING
From: AA000001 		$256.56 2
3D728 QFW500030
KIT - STEERING GEAR REPAIR
Kit Contains: 2 X Clip, 2 X Wagner Valve, 2 X Sealing Washer, 4 X O-Ring, 1 X Locking Screw, Please Refer To TOPIx - SSM49497 Or LTB00021, Service Kit For Wagner Valves On Steering Rack / From: AA000001 		$125.56 1
3K661 QFW500020
BOOT
From: AA000001 		$89.36 1
3N803 LR010373
ACTUATOR
LHD / From: AA000001 		$360.29 1
3N803 LR010372
ACTUATOR
RHD / From: AA000001 		$216.98 1
4B478 LR032372
CLAMP - BOOT
BIG / From: AA000001 		$3.76 2
12K528 LR010673
KIT - STEERING GEAR TIE ROD REPAIR
From: AA000001 		$472.19 2
3280 QFK500030
ROD - SPINDLE CONNECTING
From: AA000001 		$168.09 2
3504 LR028450
GEAR - STEERING
LHD / New Part-Please Check For Reman Version / From: AA000001 / To: BA276576 		$2,240.73 1
3504 LR028451
GEAR - STEERING
RHD / New Part-Please Check For Reman Version / From: AA000001 / To: BA276576 		$2,420.08 1
3504 LR031744
GEAR - STEERING
LHD / New Part-Please Check For Reman Version / From: BA276577 		$4,450.47 1
3504 LR031745
GEAR - STEERING
RHD / New Part-Please Check For Reman Version / From: BA276577 		$4,450.47 1
3504 LR045339
GEAR - STEERING
LHD / Less Track Rod Ends, Remanufactured Part / From: AA000001 		$1,879.21 1
3504 LR045340
GEAR - STEERING
RHD / Less Track Rod Ends, Remanufactured Part / From: AA000001 		$1,879.21 1
