Console - Floor (External Components, For Carrier Assy) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Console - Floor (External Components, For Carrier Assy) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FYC500120 CLIP $0.08 To Order
Photo Part No Description Price (each) Stock
LR018765 CLIP $9.42 To Order
Photo Part No Description Price (each) Stock
LR066957 SCREW AND WASHER $4.44 To Order
LR066957 SCREW AND WASHER $4.44 To Order
Photo Part No Description Price (each) Stock
LR018751 SCREW $1.44 To Order
Photo Part No Description Price (each) Stock
FYP500260 SCREW $0.77 To Order
Photo Part No Description Price (each) Stock
FHY500050PVJ COVER - SWITCH $14.13 To Order
Photo Part No Description Price (each) Stock
LR015402 PANEL - CONSOLE $1,022.62 To Order
LR016887 PANEL - CONSOLE $856.76 To Order
LR016287 PANEL - CONSOLE $1,022.62 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR018507 PANEL - CD PLAYER $80.85 To Order
LR021394 PANEL - CD PLAYER $80.85 To Order
LR029752 PANEL - CD PLAYER $75.08 To Order
Photo Part No Description Price (each) Stock
LR018656 PANEL - CD PLAYER $80.85 To Order
LR021395 PANEL - CD PLAYER $80.85 To Order
LR029753 PANEL - CD PLAYER $30.07 To Order
Photo Part No Description Price (each) Stock
LR020634 COVER - ASH RECEPTACLE $46.36 To Order
Photo Part No Description Price (each) Stock
LR018626 ASH TRAY $96.50 To Order
LR020498 ASH TRAY $96.50 To Order
LR021388 ASH TRAY $94.48 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
FKM500030PMA ASH TRAY $34.31 To Order
Photo Part No Description Price (each) Stock
LR030980 ASH TRAY $199.15 To Order
LR030981 HOLDER - CUP $198.76 To Order
LR045313 ASH TRAY $136.18 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
FWW500160 HOLDER - CUP $13.96 To Order
LR021330 HOLDER - CUP $27.79 To Order
Photo Part No Description Price (each) Stock
FWW500070PVJ HOLDER - CUP $12.21 To Order
Photo Part No Description Price (each) Stock
LR029966 HOLDER - CUP $19.27 To Order
LR038069 HOLDER - CUP $17.87 To Order
Photo Part No Description Price (each) Stock
FHE500012NUG COVER $10.56 To Order
FHE500012PVJ COVER - CONSOLE FIXING $9.84 To Order
LR008285 COVER $9.46 To Order
Photo Part No Description Price (each) Stock
LR015492 COVER - FLOOR CONSOLE $274.80 To Order
Photo Part No Description Price (each) Stock
LR016349 BEZEL - CENTRE CONSOLE $72.18 To Order
LR031892 BEZEL - CENTRE CONSOLE $143.39 To Order
Photo Part No Description Price (each) Stock
LR029979 BEZEL - CENTRE CONSOLE $143.39 To Order
Photo Part No Description Price (each) Stock
LR029980 BEZEL - CENTRE CONSOLE $12.50 To Order
Photo Part No Description Price (each) Stock
FJI500032PVJ PANEL - CONSOLE $70.08 To Order
Photo Part No Description Price (each) Stock
LR015003 PANEL - CONSOLE $328.88 To Order
LR015004 PANEL - CONSOLE $142.09 To Order
LR015005 PANEL - CONSOLE $156.10 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
FHM500060PVJ COMPARTMENT - STOWAGE $70.08 To Order
Photo Part No Description Price (each) Stock
FHM500022PVJ COMPARTMENT - STOWAGE $65.38 To Order
View All

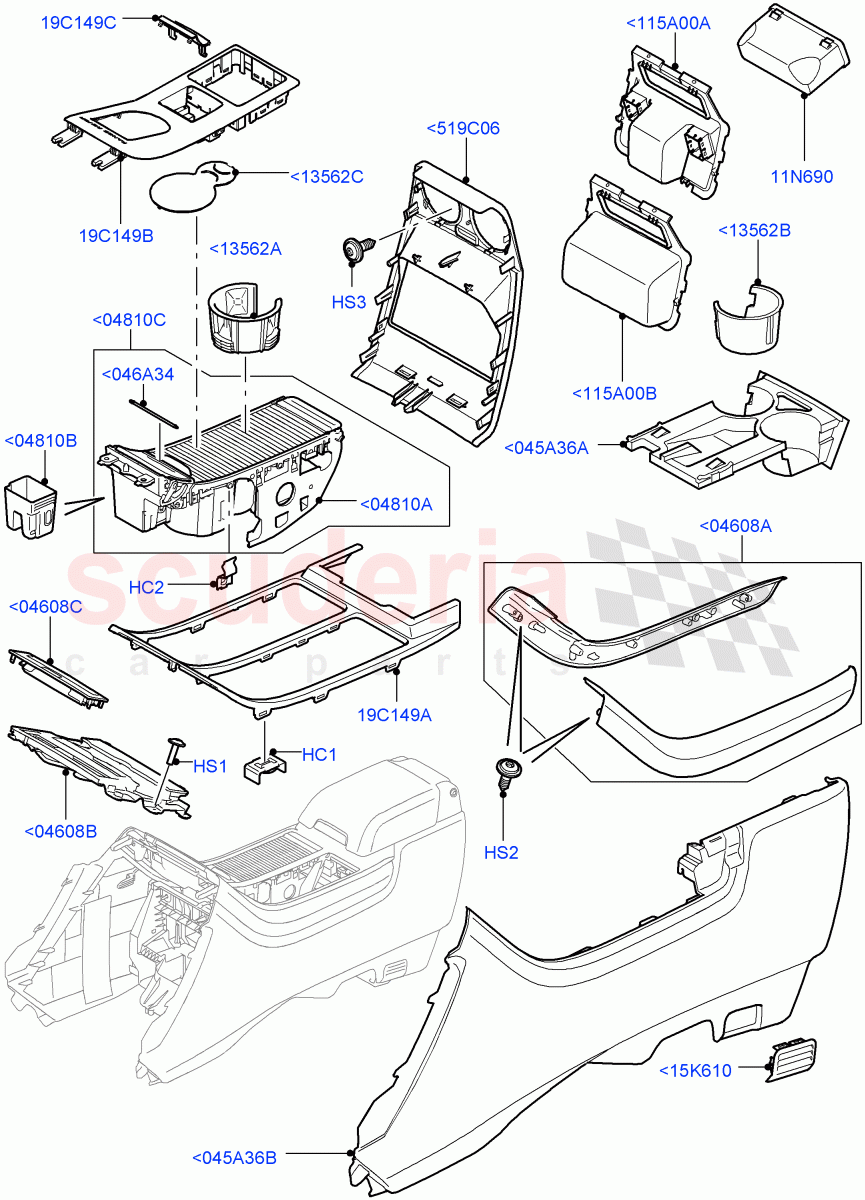

Console - Floor (External Components, For Carrier Assy) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<15K610 FHE500012NUG
COVER
I/P Facia Contrast - Ebony/Ivory / Ivory / From: AA000001 		$10.56 2
<15K610 FHE500012PVJ
COVER - CONSOLE FIXING
I/P Facia Contrast - Ebony Black / From: AA000001 		$9.84 2
<15K610 LR008285
COVER
I/P Facia Cntr-Ebony Black/Almond / From: AA000001 		$9.46 2
<045A36A FJI500032PVJ
PANEL - CONSOLE
Ebony Black, Rear Cupholder / From: AA000001 		$70.08 1
<045A36B LR015003
PANEL - CONSOLE
I/P Facia Contrast - Ebony/Ivory / RH, Ivory / From: AA000001 		$328.88 1
<045A36B LR015004
PANEL - CONSOLE
I/P Facia Contrast - Ebony Black / RH, Ebony Black / From: AA000001 		$142.09 1
<045A36B LR015005
PANEL - CONSOLE
I/P Facia Cntr-Ebony Black/Almond / RH, Almond / From: AA000001 		$156.10 1
<045A36B LR015006
PANEL - CONSOLE
I/P Facia Contrast - Ebony/Ivory / LH, Ivory / From: AA000001 		$328.88 1
<045A36B LR015007
PANEL - CONSOLE
I/P Facia Contrast - Ebony Black / LH, Ebony Black / From: AA000001 		$156.10 1
<045A36B LR015008
PANEL - CONSOLE
I/P Facia Cntr-Ebony Black/Almond / LH, Almond / From: AA000001 		$299.39 1
<046A34 LR020634
COVER - ASH RECEPTACLE
From: AA000001 		$46.36 1
<115A00A FHM500060PVJ
COMPARTMENT - STOWAGE
With Heated Seats - Front/Rear / Ebony Black, Rear / From: AA000001 		$70.08 1
<115A00B FHM500022PVJ
COMPARTMENT - STOWAGE
Less Seat Temperature Control / Ebony Black, Rear / From: AA000001 		$65.38 1
<519C06 LR015492
COVER - FLOOR CONSOLE
Meteor Grey, Rear / From: AA000001 		$274.80 1
<04608A LR015402
PANEL - CONSOLE
Interior Satin Blk Wlnt Veneer / Hockey Stick Shape Finisher, Supplied In Pairs / From: AA000001 / To: AA224293 		$1,022.62 1
<04608A LR016887
PANEL - CONSOLE
Interior Dark Brown Anigre Pack / Hockey Stick Shape Finisher, Supplied In Pairs / From: AA000001 / To: AA224293 		$856.76 1
<04608A LR016287
PANEL - CONSOLE
Interior Piano Black Veneer / Hockey Stick Shape Finisher, Supplied In Pairs / From: AA000001 / To: AA229465 		$1,022.62 1
<04608A LR020499
PANEL - CONSOLE
Interior Satin Blk Wlnt Veneer / Supplied In Pairs / From: AA224294 		$305.07 1
<04608A LR020500
PANEL - CONSOLE
Interior Dark Brown Anigre Pack / Supplied In Pairs / From: AA224294 		$647.24 1
<04608A LR021018
PANEL - CONSOLE
Interior Ebony Pack / Supplied In Pairs / From: BA000001 		$647.24 1
<04608A LR020243
PANEL - CONSOLE
Interior Piano Black Veneer / Hockey Stick Shape Finisher, Supplied In Pairs / From: AA229466 		$307.22 1
<04608B LR018507
PANEL - CD PLAYER
From: AA000001 / To: AA248201 		$80.85 1
<04608B LR021394
PANEL - CD PLAYER
From: AA248202 / To: BA999999 		$80.85 1
<04608B LR029752
PANEL - CD PLAYER
From: CA000001 		$75.08 1
<04608C LR018656
PANEL - CD PLAYER
CD Tray Cover / From: AA000001 / To: AA248201 		$80.85 1
<04608C LR021395
PANEL - CD PLAYER
CD Tray Cover / From: AA248202 / To: BA999999 		$80.85 1
<04608C LR029753
PANEL - CD PLAYER
CD Tray Cover / From: CA000001 		$30.07 1
<04810A LR018626
ASH TRAY
Meteor Grey / From: AA000001 / To: AA224293 		$96.50 1
<04810A LR020498
ASH TRAY
Meteor Grey / From: AA224294 / To: AA424294 		$96.50 1
<04810A LR021388
ASH TRAY
6 Speed Auto ZF 6HP26 Steptronic / Meteor Grey / From: AA424295 		$94.48 1
<04810A LR029750
ASH TRAY
8 Speed Auto Trans ZF 8HP70 4WD / Ebony / Noble / From: CA000001 / To: DA760921 		$140.42 1
<04810A LR038070
ASH TRAY
8 Speed Auto Trans ZF 8HP70 4WD / Ebony / Noble / From: DA760922 		$16.26 1
<04810B FKM500030PMA
ASH TRAY
Ash Receptacle, Black, Insert / From: AA000001 		$34.31 1
<04810C LR030980
ASH TRAY
(+)"CDN/MEX/USA", 6 Speed Auto Transmission ZF 6HP28 / Includes Cover, Kit/Set, With Green Illuminated Ring, With Single Socket / From: AA000001 		$199.15 1
<04810C LR030981
HOLDER - CUP
(-)"CDN/MEX/USA", 6 Speed Auto ZF 6HP26 Steptronic / Includes Cover, Kit/Set, With Cigar Lighter, With Green Illuminated Ring / From: AA000001 		$198.76 1
<04810C LR045313
ASH TRAY
(+)"CDN/MEX/USA", 8 Speed Auto Trans ZF 8HP70 4WD / Kit/Set, Meteor Grey, With Single Socket / From: CA000001 		$136.18 1
<04810C LR045314
ASH TRAY
(-)"CDN/MEX/USA", 8 Speed Auto Trans ZF 8HP70 4WD / Kit/Set, Meteor Grey, With Cigar Lighter / From: CA000001 		$261.71 1
<13562A FWW500160
HOLDER - CUP
Front Floor Console, Insert / From: AA000001 / To: AA224293 		$13.96 2
<13562A LR021330
HOLDER - CUP
From: AA224294 		$27.79 2
<13562B FWW500070PVJ
HOLDER - CUP
Insert, Rear Floor Console / From: AA000001 		$12.21 2
<13562C LR029966
HOLDER - CUP
8 Speed Auto Trans ZF 8HP70 4WD / Access Panel, Ebony Black, Insert / From: CA000001 / To: DA760921 		$19.27 1
<13562C LR038069
HOLDER - CUP
8 Speed Auto Trans ZF 8HP70 4WD / Access Panel, Ebony Black, Insert / From: DA760922 		$17.87 1
HC1 FYC500120
CLIP
1.5MM, Stainless Steel / From: AA000001 		$0.08 1
HC2 LR018765
CLIP
"Spring", Metal / From: AA000001 		$9.42 1
HS1 LR066957
SCREW AND WASHER
4.2 x 16MM, Double Cup Holder / From: AA000001 		$4.44 2
HS1 LR066957
SCREW AND WASHER
4.2 x 16MM, Housing Assy, Switches / From: AA000001 		$4.44 6
HS2 LR018751
SCREW
M5 X 12MM / From: AA000001 		$1.44 10
HS3 FYP500260
SCREW
Screw 4X14.5MM / From: AA000001 		$0.77 1
11N690 FHY500050PVJ
COVER - SWITCH
Less Power Point Plug / Ebony Black / From: AA000001 		$14.13 1
19C149A LR016349
BEZEL - CENTRE CONSOLE
Noble / From: AA000001 / To: BA999999 		$72.18 1
19C149A LR031892
BEZEL - CENTRE CONSOLE
Meteor Grey / From: CA000001 		$143.39 1
19C149B LR029979
BEZEL - CENTRE CONSOLE
8 Speed Auto Trans ZF 8HP70 4WD / Noble / From: CA000001 		$143.39 1
19C149C LR029980
BEZEL - CENTRE CONSOLE
8 Speed Auto Trans ZF 8HP70 4WD / Access Panel, Ebony Black, Insert / From: CA000001 		$12.50 1
