Drive Shaft - Rear Axle Drive (Drive Shaft & Boot Kits) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Drive Shaft - Rear Axle Drive (Drive Shaft & Boot Kits) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
TDR500070 BOOT $121.69 To Order
TDR500080 BOOT $102.67 To Order
LR072515 KIT - BOOT DRIVE AXLE $114.79 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
TOB500250 SHAFT - DRIVE $444.96 To Order
TOB500270 SHAFT - DRIVE $444.96 To Order
LR047284 SHAFT - DRIVE $531.27 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
TOB500260 SHAFT - DRIVE $444.96 To Order
TOB500280 SHAFT - DRIVE $444.96 To Order
LR047285 SHAFT - DRIVE $561.54 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
TDJ500050 SHAFT - DRIVE $292.94 To Order
TDJ500060 SHAFT - DRIVE $292.94 To Order
Photo Part No Description Price (each) Stock
TDL500040 CIRCLIP $3.11 To Order
Photo Part No Description Price (each) Stock
TDL500060 CIRCLIP $2.08 To Order
TDL500070 CIRCLIP $2.08 To Order
View All

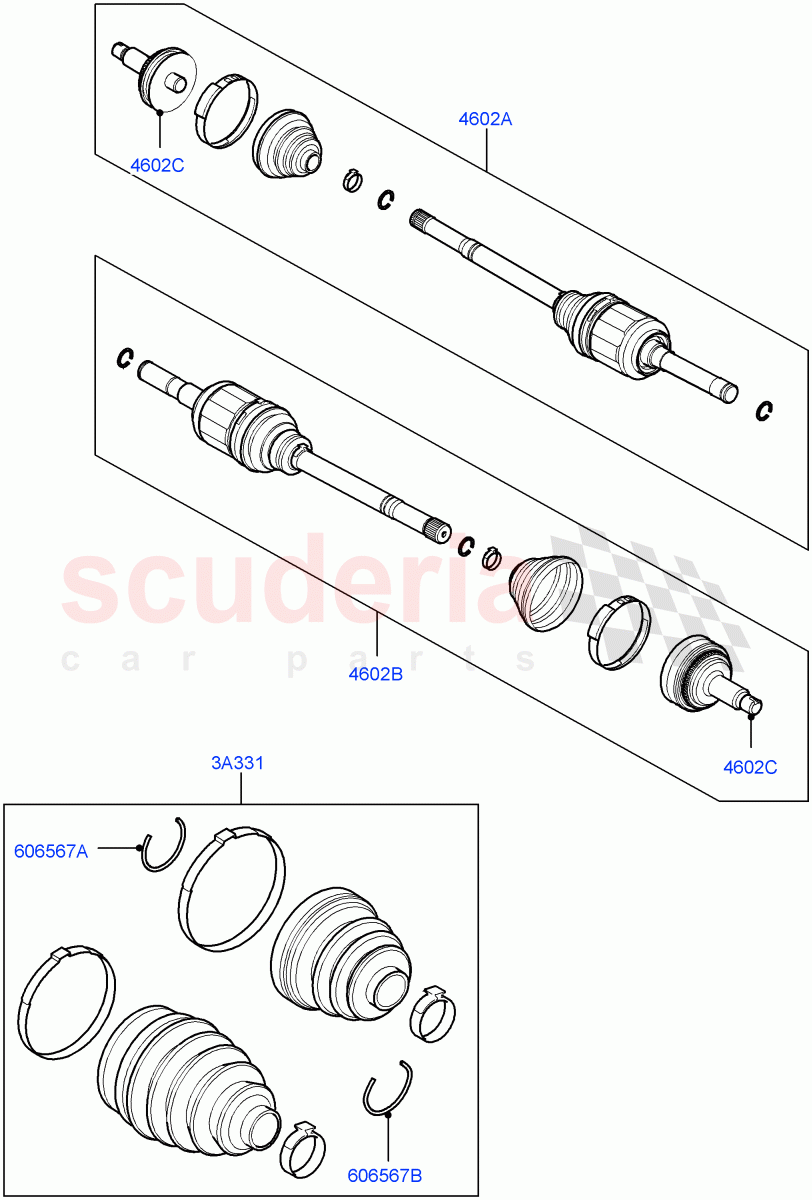

Drive Shaft - Rear Axle Drive (Drive Shaft & Boot Kits) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
3A331 TDR500070
BOOT
5.0L OHC SGDI NA V8 Petrol - AJ133, Rear Axle Open Style Differential / From: AA000001 / To: DA810672 		$121.69 2
3A331 TDR500080
BOOT
3.0L 24V DOHC V6 TC Diesel, Rear Axle Locking Differential / From: AA000001 / To: DA810672 		$102.67 2
3A331 LR072515
KIT - BOOT DRIVE AXLE
Rear Axle Open Style Differential / From: DA810673 		$114.79 1
3A331 LR072516
KIT - BOOT DRIVE AXLE
Rear Axle Locking Differential / From: DA810673 		$124.77 1
4602A TOB500250
SHAFT - DRIVE
3.0L 24V DOHC V6 TC Diesel, Rear Axle Locking Differential / LH, 1.5 mm thread pitch, Please Order The Appropriate Nut / From: AA000001 / To: DA810672 		$444.96 1
4602A TOB500270
SHAFT - DRIVE
5.0L OHC SGDI NA V8 Petrol - AJ133, Rear Axle Open Style Differential / LH, 1.5 mm thread pitch, Please Order The Appropriate Nut / From: AA000001 / To: DA810672 		$444.96 1
4602A LR047284
SHAFT - DRIVE
5.0L OHC SGDI NA V8 Petrol - AJ133, Rear Axle Locking Differential / LH, 2.0 mm thread pitch, Please Order The Appropriate Nut / From: DA810673 		$531.27 1
4602A LR047286
SHAFT - DRIVE
3.0L 24V DOHC V6 TC Diesel, Rear Axle Open Style Differential / LH, 2.0 mm thread pitch, Please Order The Appropriate Nut / From: DA810673 		$502.56 1
4602B TOB500260
SHAFT - DRIVE
3.0L 24V DOHC V6 TC Diesel, Rear Axle Locking Differential / RH, 1.5 mm thread pitch, Please Order The Appropriate Nut / From: AA000001 / To: DA810672 		$444.96 1
4602B TOB500280
SHAFT - DRIVE
5.0L OHC SGDI NA V8 Petrol - AJ133, Rear Axle Open Style Differential / RH, 1.5 mm thread pitch, Please Order The Appropriate Nut / From: AA000001 / To: DA810672 		$444.96 1
4602B LR047285
SHAFT - DRIVE
5.0L OHC SGDI NA V8 Petrol - AJ133, Rear Axle Locking Differential / RH, 2.0 mm thread pitch, Please Order The Appropriate Nut / From: DA810673 		$561.54 1
4602B LR047288
SHAFT - DRIVE
3.0L 24V DOHC V6 TC Diesel, Rear Axle Open Style Differential / RH, 2.0 mm thread pitch, Please Order The Appropriate Nut / From: DA810673 		$525.13 1
4602C TDJ500050
SHAFT - DRIVE
3.0L 24V DOHC V6 TC Diesel, Rear Axle Open Style Differential / From: AA000001 		$292.94 2
4602C TDJ500060
SHAFT - DRIVE
5.0L OHC SGDI NA V8 Petrol - AJ133, Rear Axle Locking Differential / From: AA000001 		$292.94 2
606567A TDL500040
CIRCLIP
Differential / From: AA000001 		$3.11 2
606567B TDL500060
CIRCLIP
3.0L 24V DOHC V6 TC Diesel, Rear Axle Open Style Differential / Barshaft / From: AA000001 		$2.08 2
606567B TDL500070
CIRCLIP
5.0L OHC SGDI NA V8 Petrol - AJ133, Rear Axle Locking Differential / Barshaft / From: AA000001 		$2.08 2
