Name: Transmission External Components (3.0 V6 Diesel, 6 Speed Auto Transmission ZF 6HP28, 5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)
Rating: 4.1 (1 reviews)

Transmission External Components (3.0 V6 Diesel, 6 Speed Auto Transmission ZF 6HP28, 5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Transmission External Components (3.0 V6 Diesel, 6 Speed Auto Transmission ZF 6HP28, 5.0L OHC SGDI...

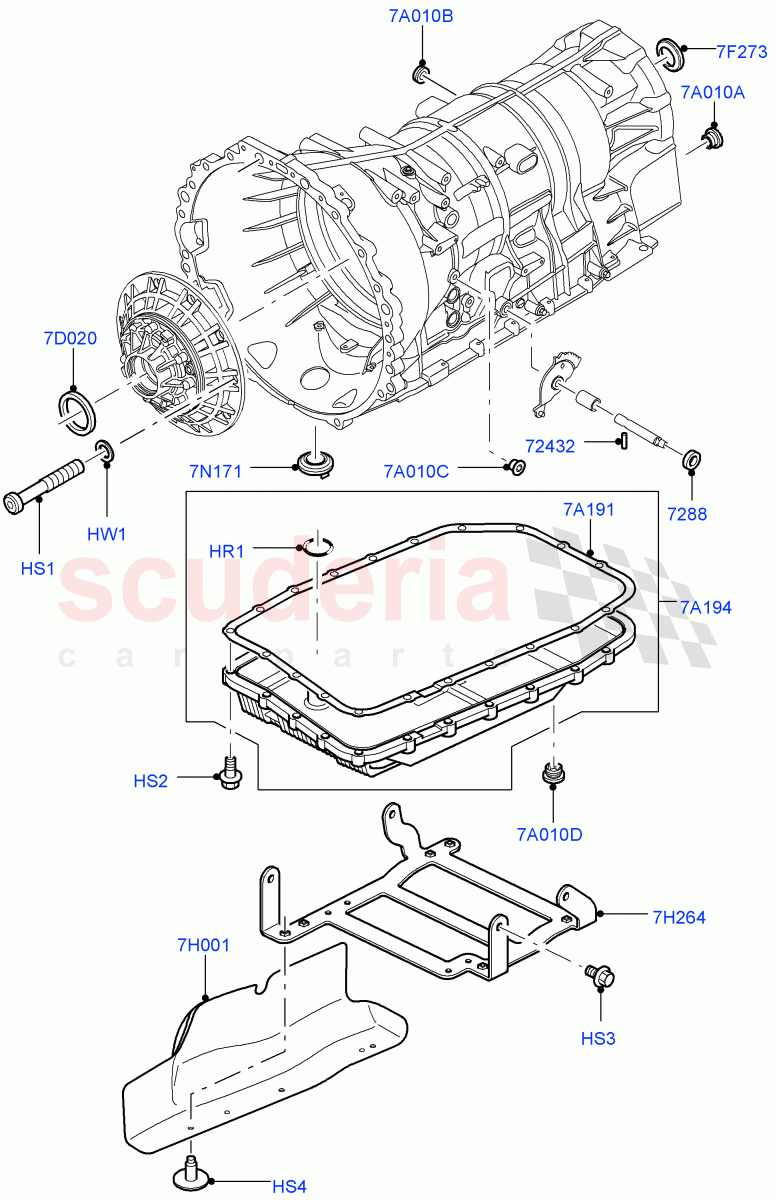

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	TYX500010	O-RING	$1.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	TYP500070	SCREW	$2.42	To Order

Photo	Part No	Description	Price (each)	Stock
	TYP500050	SCREW	$1.24	To Order

Photo	Part No	Description	Price (each)	Stock
	KYP500260	SCREW	$0.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	TYF500030	WASHER	$1.82	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	TZB500020	SEAL	$5.50	To Order

Photo	Part No	Description	Price (each)	Stock
	TYT500010	PIN - FASTENING	$1.14	To Order

Photo	Part No	Description	Price (each)	Stock
	TGK500010	GASKET	$30.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007474	PAN - TRANSMISSION OIL	$274.51	To Order

Photo	Part No	Description	Price (each)	Stock
	TZB500030	SEAL	$13.39	To Order

Photo	Part No	Description	Price (each)	Stock
	TZB500010	SEAL	$11.16	To Order

Photo	Part No	Description	Price (each)	Stock
	TGU500050	BRACKET - OIL HOSES	$52.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008866	GROMMET	$8.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR007608	PLUG - OIL DRAIN	$7.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007610	PLUG - OIL FILLER	$12.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007607	PLUG - OIL DRAIN	$9.47	To Order

Photo	Part No	Description	Price (each)	Stock
	TYB500020	PLUG - OIL DRAIN	$8.66	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	TYX500010	O-RING IN STOCK	TYX500010 O-RING Oil Pump / From: AA000001 IN STOCK	$1.33	1
HS1	TYP500070	SCREW	TYP500070 SCREW Housing, Oil Pump, M6 x 50MM, To Transmission / From: AA000001	$2.42	13
HS2	TYP500050	SCREW	TYP500050 SCREW M6 X 31.5MM, Oil Pan, To Transmission, Torx / From: AA000001	$1.24	21
HS3	KYP500260	SCREW IN STOCK	KYP500260 SCREW Bracket, HEX Flange, M6 X 14MM, To Transmission / From: AA000001 IN STOCK	$0.77	4
HW1	TYF500030	WASHER IN STOCK	TYF500030 WASHER M6 / From: AA000001 IN STOCK	$1.82	-
7A010A	LR007608	PLUG - OIL DRAIN	LR007608 PLUG - OIL DRAIN M12 X 1.5MM, Park, Pawl, Rear / From: AA000001	$7.77	1
7A010B	LR007610	PLUG - OIL FILLER	LR007610 PLUG - OIL FILLER FILLER, M18 X 1.5MM, Warning Oil Level Check / From: AA000001	$12.37	1
7A010C	LR007607	PLUG - OIL DRAIN	LR007607 PLUG - OIL DRAIN M10 x 1.0, Screw / From: AA000001	$9.47	1
7A010D	TYB500020	PLUG - OIL DRAIN	TYB500020 PLUG - OIL DRAIN Drain / From: AA000001	$8.66	1
7A191	TGK500010	GASKET	TGK500010 GASKET Oil Pan / From: AA000001	$30.64	1
7A194	LR007474	PAN - TRANSMISSION OIL	LR007474 PAN - TRANSMISSION OIL Includes Oil Filter / From: AA000001	$274.51	1
7D020	TZB500030	SEAL	TZB500030 SEAL Oil Pump / From: AA000001	$13.39	1
7F273	TZB500010	SEAL	TZB500010 SEAL Output Shaft, Rear / From: AA000001	$11.16	1
7H264	TGU500050	BRACKET - OIL HOSES	TGU500050 BRACKET - OIL HOSES Oil Pan / From: AA000001	$52.88	1
7N171	LR008866	GROMMET IN STOCK	LR008866 GROMMET Converter Drain Access / From: AA000001 IN STOCK	$8.56	1
7288	TZB500020	SEAL	TZB500020 SEAL From: AA000001	$5.50	1
72432	TYT500010	PIN - FASTENING	TYT500010 PIN - FASTENING From: AA000001	$1.14	1
