Transmission Cooling Systems (3.6L V8 32V Dohc Efi Diesel Lion, 6 Speed Auto Zf 6Hp26 Steptronic)...

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Transmission Cooling Systems (3.6L V8 32V DOHC EFi Diesel Lion, 6 Speed Auto ZF 6HP26 Steptronic)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT $0.68 IN STOCK
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
YYH500020 NUT $1.17 To Order
Photo Part No Description Price (each) Stock
PYX500020 RING - SEALING $4.47 IN STOCK
Photo Part No Description Price (each) Stock
FS106127L SCREW $2.01 To Order
Photo Part No Description Price (each) Stock
PEU500150 BRACKET $12.05 To Order
Photo Part No Description Price (each) Stock
LR013923 BRACKET $83.29 To Order
Photo Part No Description Price (each) Stock
UBC500101 OIL COOLER $464.90 To Order
Photo Part No Description Price (each) Stock
UBP500205 TUBE - OIL COOLER $274.13 To Order
View All

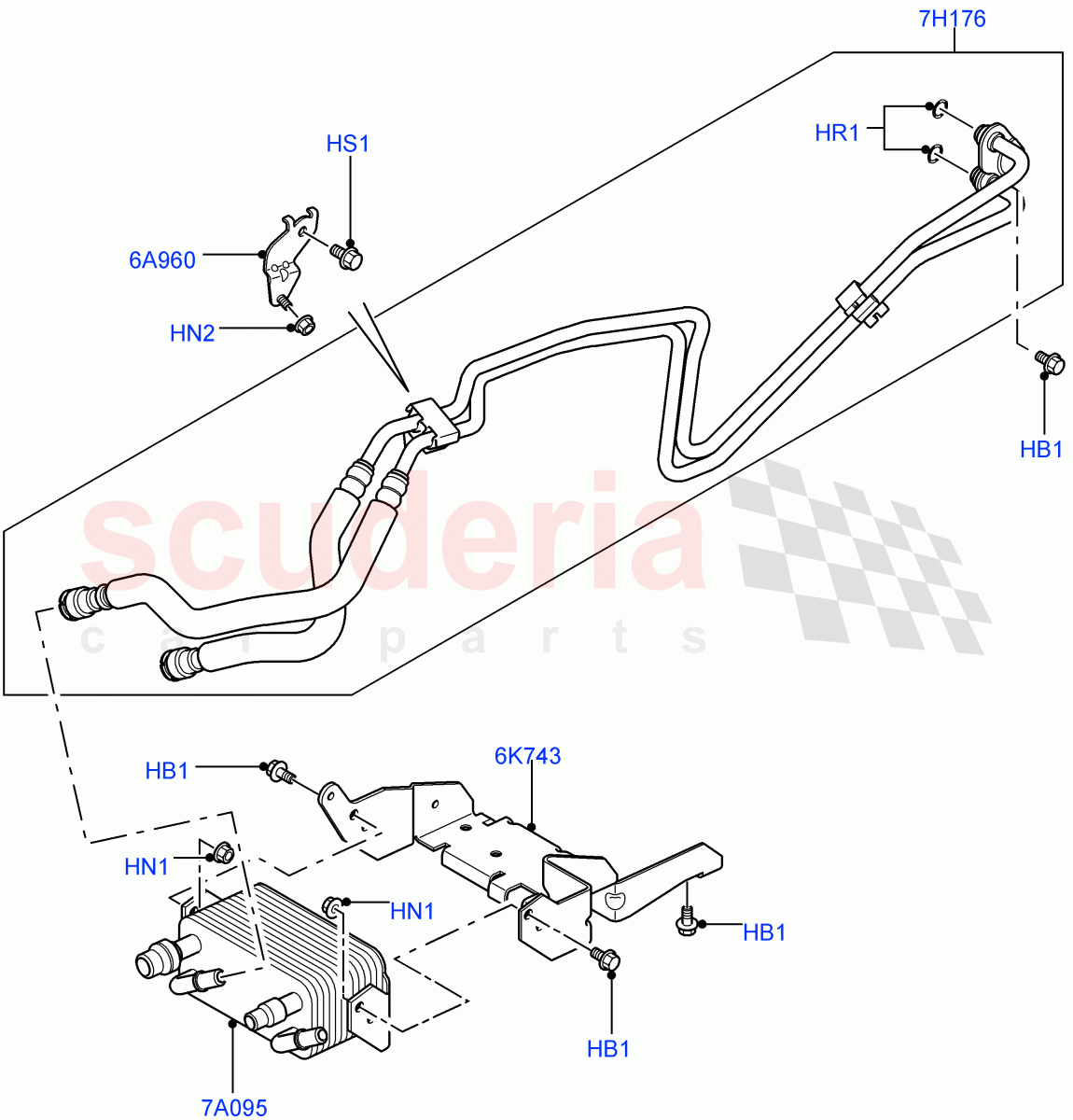

Transmission Cooling Systems (3.6L V8 32V DOHC EFi Diesel Lion, 6 Speed Auto ZF 6HP26 Steptronic) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108166
BOLT
Hexagonal Head, M8 X 16MM / From: AA000001
IN STOCK 		$0.68 5
HN1 FN108046
NUT - HEX.
Hexagonal Head, M8 / From: AA000001 		$1.97 4
HN2 YYH500020
NUT
M6 / From: AA000001 		$1.17 1
HR1 PYX500020
RING - SEALING
IN STOCK 		$4.47 2
HS1 FS106127L
SCREW
M6 x 12MM / From: AA000001 		$2.01 1
6A960 PEU500150
BRACKET
From: AA000001 		$12.05 1
6K743 LR013923
BRACKET
From: AA000001 		$83.29 1
7A095 UBC500101
OIL COOLER
From: AA000001 		$464.90 1
7H176 UBP500205
TUBE - OIL COOLER
Transmission Cooler Line / From: AA000001 		$274.13 1
