Cooling System Pipes And Hoses (3.6L V8 32V Dohc Efi Diesel Lion) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Cooling System Pipes And Hoses (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1419375 BOLT $4.47 To Order
Photo Part No Description Price (each) Stock
PCH503260 HOSE $206.22 To Order
Photo Part No Description Price (each) Stock
LR005819 CONNECTOR $147.11 To Order
Photo Part No Description Price (each) Stock
LR017419 HOSE - RADIATOR $349.64 To Order
Photo Part No Description Price (each) Stock
PEH500440 HOSE $70.63 To Order
Photo Part No Description Price (each) Stock
LR008276 HOSE - HEATER WATER $28.55 To Order
Photo Part No Description Price (each) Stock
PCH503340 HOSE - HEATER WATER $135.63 To Order
Photo Part No Description Price (each) Stock
LR005819 CONNECTOR $147.11 To Order
Photo Part No Description Price (each) Stock
LR015351 HOSE $67.21 To Order
Photo Part No Description Price (each) Stock
LR008202 HOSE $66.28 To Order
Photo Part No Description Price (each) Stock
LR008237 HOSE - WATER OUTLET $51.83 To Order
Photo Part No Description Price (each) Stock
PCH503280 HOSE $222.65 To Order
Photo Part No Description Price (each) Stock
1418972 HOSE $63.16 IN STOCK
Photo Part No Description Price (each) Stock
LR003648 HOSE $17.84 To Order
Photo Part No Description Price (each) Stock
LR005822 HOSE $14.56 To Order
View All

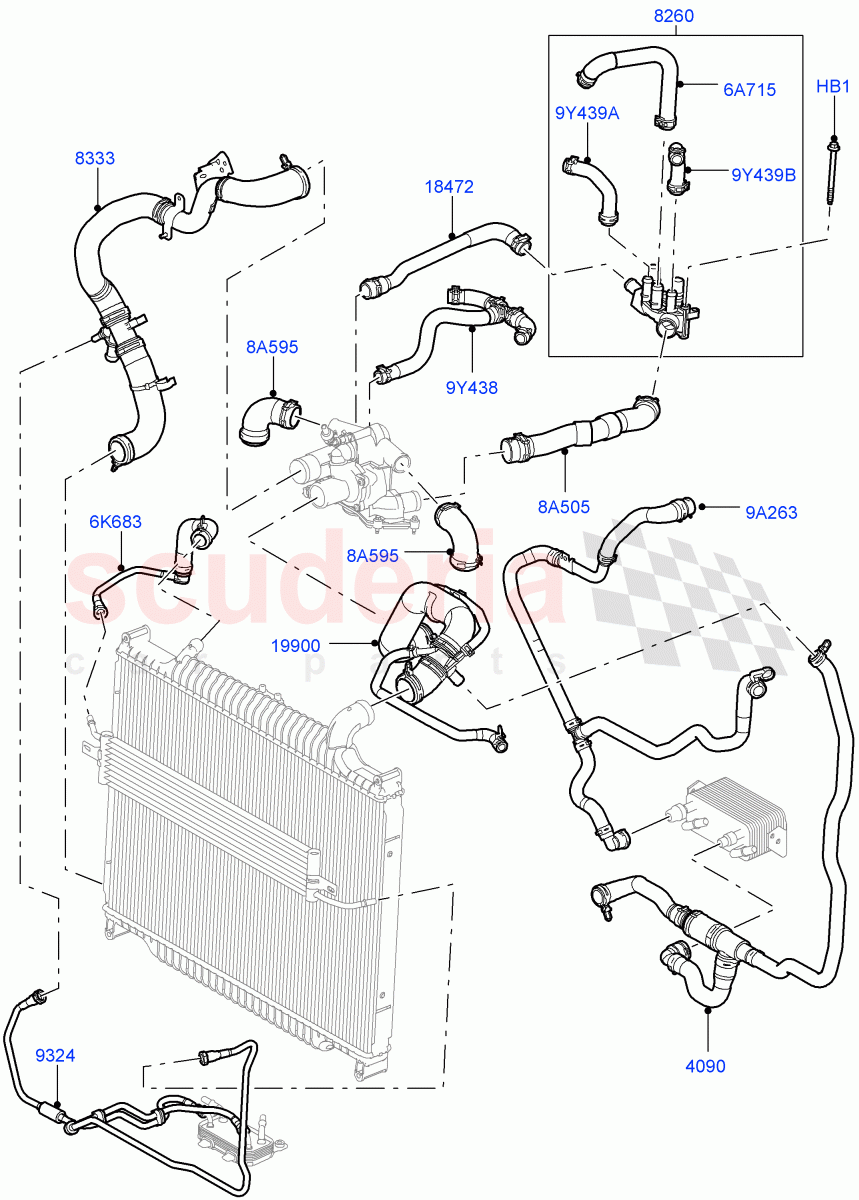

Cooling System Pipes And Hoses (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 1419375
BOLT
M6 X 71 / From: AA000001 		$4.47 1
6A715 LR005819
CONNECTOR
Engine, Oil Cooler, Outlet Tube / From: AA000001 		$147.11 1
6K683 LR015351
HOSE
For Fuel Cooler / From: AA000001 		$67.21 1
8A505 LR008202
HOSE
LH, From Thermostat To Water Connector, Upper / From: AA000001 		$66.28 1
8A595 LR008237
HOSE - WATER OUTLET
From Thermostat To Water Connector, To Cylinder Head / From: AA000001 		$51.83 2
9A263 PCH503280
HOSE
Expansion Reservoir To Thermostat, Transmission Cooler Line / From: AA000001 		$222.65 1
9Y438 1418972
HOSE
Cooled EGR, Feed / From: AA000001
IN STOCK 		$63.16 1
9Y439A LR003648
HOSE
RH, Cooled EGR, Return / From: AA000001 		$17.84 1
9Y439B LR005822
HOSE
LH, Cooled EGR, Return / From: AA000001 		$14.56 1
4090 PCH503260
HOSE
Attaches To Bottom Of Radiator, To Top Hose, Transmission Cooler Line / From: AA000001 		$206.22 1
8260 LR005819
CONNECTOR
Connector, Cooled EGR / From: AA000001 		$147.11 1
8333 LR017419
HOSE - RADIATOR
Radiator To Thermostat, Top & Bottom / From: AA000001 		$349.64 1
9324 PEH500440
HOSE
For Fuel Cooler / From: AA000001 		$70.63 1
18472 LR008276
HOSE - HEATER WATER
RH, From Thermostat To Water Connector, Upper / From: AA000001 		$28.55 1
19900 PCH503340
HOSE - HEATER WATER
From Reservoir To Radiator, Radiator To Thermostat, Top / From: AA000001 		$135.63 1
