Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Front Seat Back ((V) FROMAA000001)

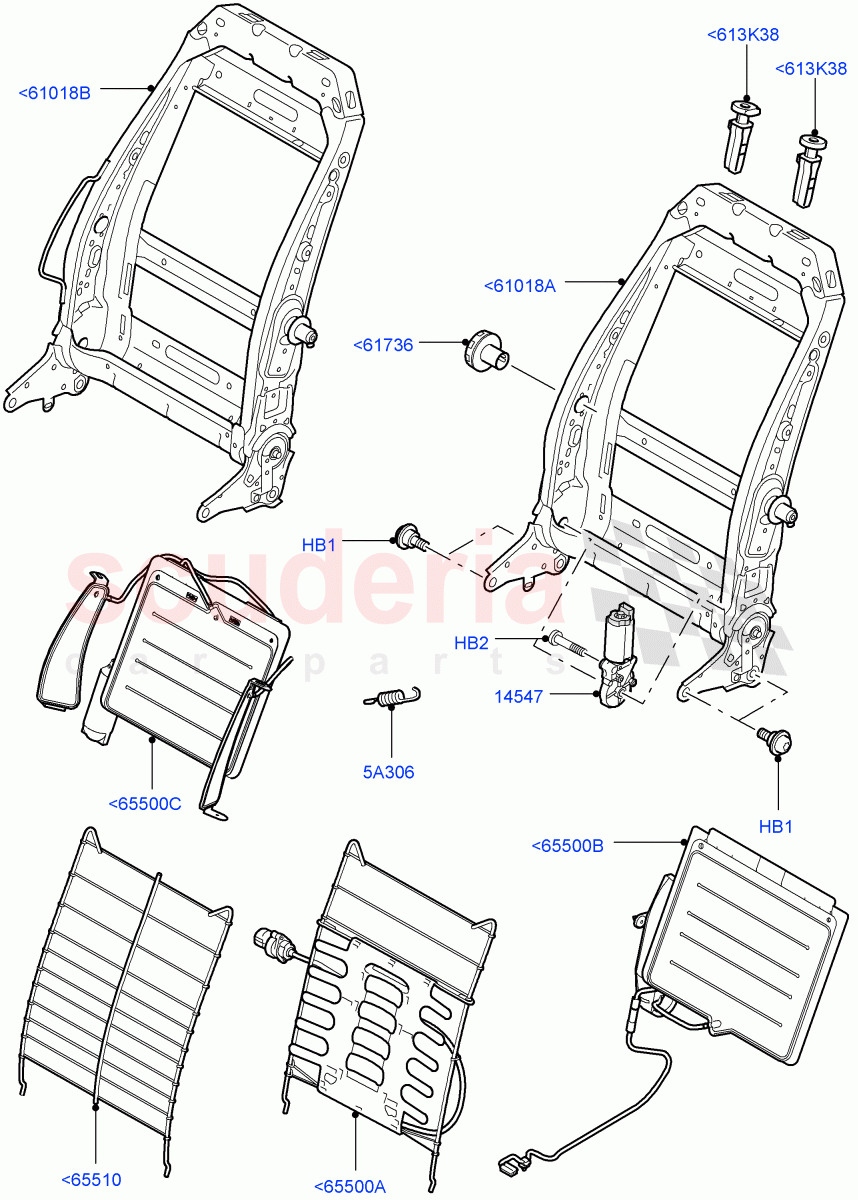

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	HYG500050	BOLT - SHOULDERED	$1.14	To Order

Photo	Part No	Description	Price (each)	Stock
	HYG500120	SCREW	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	HHL500100	MOTOR - SEAT ADJUSTER	$306.29	To Order
	HHL500010	MOTOR - SEAT ADJUSTER	$306.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021429	RETAINER - SPRING	$3.30	To Order
	HGF500030	RETAINER - SPRING	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016508	HANDLE - SEAT ADJUST	$6.73	To Order
	LR016509	HANDLE - SEAT ADJUST	$6.73	To Order
	LR007912	HANDLE - SEAT ADJUST	$12.19	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR017005	SUPPORT - FRONT SEAT SQUAB	$20.63	To Order

Photo	Part No	Description	Price (each)	Stock
	HFA500660	FRAME	$934.54	To Order
	HFA500670	FRAME	$733.66	To Order
	LR032261	FRAME - SEAT	$660.68	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013358	FRAME - SEAT	$713.24	To Order
	LR013701	FRAME AND SPRING - SEAT BACK	$676.04	To Order
	LR013702	FRAME AND SPRING - SEAT BACK	$848.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016870	SLEEVE - HEADREST GUIDE	$3.30	To Order
	LR016871	SLEEVE - HEADREST GUIDE	$3.30	To Order
	LR016635	SLEEVE - HEADREST GUIDE	$4.09	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	HHC500022	SUPPORT - SEAT BACK - LUMBAR	$175.36	To Order
	HHC500032	SUPPORT - SEAT BACK - LUMBAR	$175.36	To Order
	LR032258	SUPPORT - SEAT BACK - LUMBAR	$131.66	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013703	SUPPORT - SEAT BACK - LUMBAR	$129.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013704	SUPPORT - SEAT BACK - LUMBAR	$380.21	To Order
	LR031684	SUPPORT - SEAT BACK - LUMBAR	$400.69	To Order
	LR053787	SUPPORT - SEAT BACK - LUMBAR	$387.73	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<613K38	LR016870	SLEEVE - HEADREST GUIDE	LR016870 SLEEVE - HEADREST GUIDE Arabica / Non Locking / From: AA000001	$3.30	2
<613K38	LR016871	SLEEVE - HEADREST GUIDE	LR016871 SLEEVE - HEADREST GUIDE Ocean / Non Locking / From: AA000001	$3.30	2
<613K38	LR016635	SLEEVE - HEADREST GUIDE	LR016635 SLEEVE - HEADREST GUIDE Arabica, Less DVD Screen / Locking Type / From: AA000001	$4.09	2
<613K38	LR016510	SLEEVE - HEADREST GUIDE	LR016510 SLEEVE - HEADREST GUIDE Ocean / Locking Type / From: AA000001	$6.55	2
<613K38	HJQ500120PVJ	SLEEVE - HEADREST GUIDE	HJQ500120PVJ SLEEVE - HEADREST GUIDE Ebony / Ivory Interior / Locking Type / From: AA000001	$6.79	2
<613K38	LR007913	SLEEVE - HEADREST GUIDE	LR007913 SLEEVE - HEADREST GUIDE Almond/Nutmeg / Non Locking / From: AA000001	$6.79	2
<613K38	LR007914	SLEEVE - HEADREST GUIDE	LR007914 SLEEVE - HEADREST GUIDE Almond/Nutmeg / Locking Type / From: AA000001	$6.79	2
<613K38	HJQ500110PVJ	SLEEVE - HEADREST GUIDE	HJQ500110PVJ SLEEVE - HEADREST GUIDE Ebony / Ivory Interior / Non Locking / From: AA000001	$6.79	2
<613K38	HJQ500120NUG	SLEEVE - HEADREST GUIDE	HJQ500120NUG SLEEVE - HEADREST GUIDE Ivory/Ocean / Locking Type / From: AA000001	$6.79	2
<613K38	HJQ500110NUG	SLEEVE - HEADREST GUIDE	HJQ500110NUG SLEEVE - HEADREST GUIDE Ivory/Ocean / Non Locking / From: AA000001	$4.07	2
<613K38	LR016635	SLEEVE - HEADREST GUIDE	LR016635 SLEEVE - HEADREST GUIDE Arabica/Almond, Less DVD Screen / Locking Type / From: BA717000	$4.09	2
<613K38	LR016870	SLEEVE - HEADREST GUIDE	LR016870 SLEEVE - HEADREST GUIDE Arabica/Almond / Non Locking / From: BA717000	$3.30	2
<61018A	HFA500660	FRAME	HFA500660 FRAME RH, Driver And Passenger Seat / From: AA000001 / To: BA999999	$934.54	1
<61018A	HFA500670	FRAME	HFA500670 FRAME LH, Driver And Passenger Seat / From: AA000001 / To: BA999999	$733.66	1
<61018A	LR032261	FRAME - SEAT	LR032261 FRAME - SEAT RH, Driver And Passenger Seat / From: CA000001	$660.68	1
<61018A	LR032263	FRAME - SEAT	LR032263 FRAME - SEAT LH, Driver And Passenger Seat / From: CA000001	$660.68	1
<61018B	LR013358	FRAME - SEAT	LR013358 FRAME - SEAT Articulated Drivers Seat Bolster, Front Seat Armrest - Fully Adjust, RHD / RH, Driver Seat / From: AA000001	$713.24	1
<61018B	LR013701	FRAME AND SPRING - SEAT BACK	LR013701 FRAME AND SPRING - SEAT BACK (-)"CDN/MEX/USA", Articulated Drivers Seat Bolster, Front Seat Armrest - Fully Adjust, LHD / LH, Driver Seat / From: AA000001	$676.04	1
<61018B	LR013702	FRAME AND SPRING - SEAT BACK	LR013702 FRAME AND SPRING - SEAT BACK (+)"CDN/MEX/USA", Articulated Drivers Seat Bolster, Front Seat Armrest - Fully Adjust / LH, Driver Seat / From: AA000001	$848.48	1
<61736	LR016508	HANDLE - SEAT ADJUST	LR016508 HANDLE - SEAT ADJUST (-)"CDN/MEX/USA", Arabica, Lumbar Adjust - Drv Power/Pass Mech / From: AA000001	$6.73	2
<61736	LR016509	HANDLE - SEAT ADJUST	LR016509 HANDLE - SEAT ADJUST (-)"CDN/MEX/USA", Lumbar Adjust - Drv Power/Pass Mech, Ocean / From: AA000001	$6.73	2
<61736	LR007912	HANDLE - SEAT ADJUST	LR007912 HANDLE - SEAT ADJUST (-)"CDN/MEX/USA", Almond/Arabica, Lumbar Adj - Mechanical Driver/Pass / From: AA000001	$12.19	2
<61736	HJN500012PVJ	HANDLE - SEAT ADJUST	HJN500012PVJ HANDLE - SEAT ADJUST (-)"CDN/MEX/USA", Ebony/Tan, Lumbar Adjust - Drv Power/Pass Mech / From: AA000001	$8.78	2
<61736	HJN500012NUG	HANDLE - SEAT ADJUST	HJN500012NUG HANDLE - SEAT ADJUST (-)"CDN/MEX/USA", Ivory/Lunar, Lumbar Adjust - Drv Power/Pass Mech / From: AA000001	$8.78	2
<65500A	HHC500022	SUPPORT - SEAT BACK - LUMBAR	HHC500022 SUPPORT - SEAT BACK - LUMBAR (-)"CDN/MEX/USA" / RH, Manual Lumbar / From: AA000001 / To: BA666665	$175.36	1
<65500A	HHC500032	SUPPORT - SEAT BACK - LUMBAR	HHC500032 SUPPORT - SEAT BACK - LUMBAR (-)"CDN/MEX/USA" / LH, Manual Lumbar / From: AA000001 / To: BA666665	$175.36	1
<65500A	LR032258	SUPPORT - SEAT BACK - LUMBAR	LR032258 SUPPORT - SEAT BACK - LUMBAR (-)"CDN/MEX/USA" / RH, Manual Lumbar / From: BA666666	$131.66	1
<65500A	LR032259	SUPPORT - SEAT BACK - LUMBAR	LR032259 SUPPORT - SEAT BACK - LUMBAR (-)"CDN/MEX/USA" / LH, Manual Lumbar / From: BA666666	$63.03	1
<65500B	LR013703	SUPPORT - SEAT BACK - LUMBAR	LR013703 SUPPORT - SEAT BACK - LUMBAR Electric Front Seat Adj Drv Memory / Driver And Passenger Seat / From: AA000001	$129.65	1
<65500C	LR013704	SUPPORT - SEAT BACK - LUMBAR	LR013704 SUPPORT - SEAT BACK - LUMBAR Articulated Drivers Seat Bolster, Electric Front Seat Adj Drv Memory / Driver Seat / From: AA000001 / To: BA582115	$380.21	1
<65500C	LR031684	SUPPORT - SEAT BACK - LUMBAR	LR031684 SUPPORT - SEAT BACK - LUMBAR Articulated Drivers Seat Bolster, Electric Front Seat Adj Drv Memory / Driver Seat / From: BA582116 / To: DA810699	$400.69	1
<65500C	LR053787	SUPPORT - SEAT BACK - LUMBAR	LR053787 SUPPORT - SEAT BACK - LUMBAR Articulated Drivers Seat Bolster, Electric Front Seat Adj Drv Memory / Driver Seat / From: DA810700	$387.73	1
<65510	LR017005	SUPPORT - FRONT SEAT SQUAB	LR017005 SUPPORT - FRONT SEAT SQUAB Electric Front Seat Adj Drv Memory / From: AA000001	$20.63	1
HB1	HYG500050	BOLT - SHOULDERED	HYG500050 BOLT - SHOULDERED M8 x 12MM / From: AA000001	$1.14	8
HB2	HYG500120	SCREW	HYG500120 SCREW M6, Motor - Seat Recline / From: AA000001	$0.59	2
5A306	LR021429	RETAINER - SPRING	LR021429 RETAINER - SPRING Upper / From: AA000001	$3.30	4
5A306	HGF500030	RETAINER - SPRING	HGF500030 RETAINER - SPRING Middle / From: AA000001	$0.81	4
14547	HHL500100	MOTOR - SEAT ADJUSTER	HHL500100 MOTOR - SEAT ADJUSTER With Memory Seat / From: AA000001	$306.29	1
14547	HHL500010	MOTOR - SEAT ADJUSTER	HHL500010 MOTOR - SEAT ADJUSTER Less Memory Seat / From: AA000001	$306.03	1
