Chassis Frame (Damper) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Chassis Frame (Damper) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FA108207 BOLT $2.70 To Order
Photo Part No Description Price (each) Stock
FT110206 BOLT $2.03 IN STOCK
Photo Part No Description Price (each) Stock
KYG500311 BOLT $3.01 To Order
Photo Part No Description Price (each) Stock
RYG501530 BOLT $0.78 To Order
Photo Part No Description Price (each) Stock
FB110106 BOLT $1.69 IN STOCK
Photo Part No Description Price (each) Stock
FY110056 NUT $4.25 IN STOCK
Photo Part No Description Price (each) Stock
FN110046 NUT - HEX. $0.69 To Order
Photo Part No Description Price (each) Stock
KYP500250 BOLT $2.01 To Order
Photo Part No Description Price (each) Stock
KVU500301 BRACKET - DAMPER $34.21 To Order
Photo Part No Description Price (each) Stock
LR020248 DAMPER $168.15 To Order
LR023280 DAMPER $71.12 To Order
Photo Part No Description Price (each) Stock
KVF500560 DAMPER $217.03 To Order
KVF500580 DAMPER $235.28 To Order
Photo Part No Description Price (each) Stock
RNB501130 DAMPER $82.11 To Order
Photo Part No Description Price (each) Stock
RQU500630 BRACKET $9.04 To Order
Photo Part No Description Price (each) Stock
RQU500620 BRACKET $47.89 To Order
Photo Part No Description Price (each) Stock
RQU500650 BRACKET $136.16 To Order
Photo Part No Description Price (each) Stock
RQU500640 BRACKET $136.16 To Order
Photo Part No Description Price (each) Stock
RQU500660 BRACKET $71.28 To Order
Photo Part No Description Price (each) Stock
RQU500670 BRACKET $67.40 To Order
View All

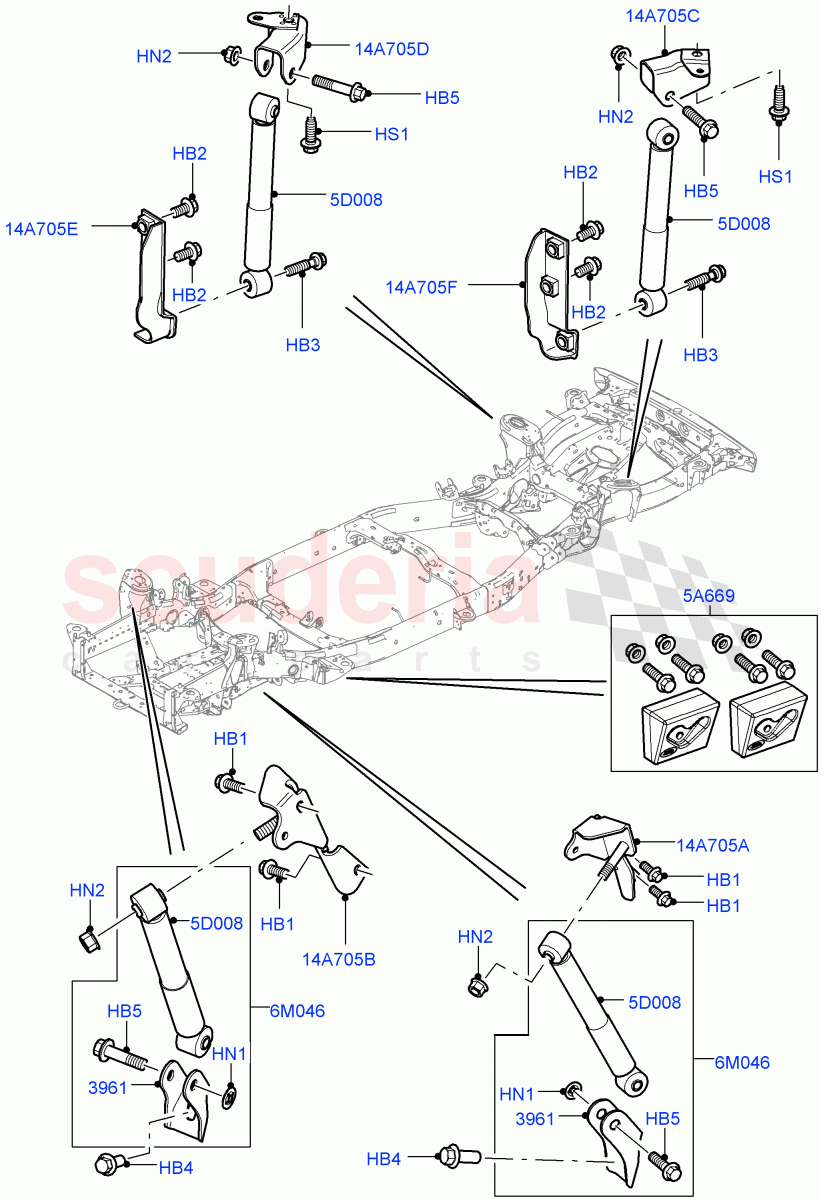

Chassis Frame (Damper) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FA108207
BOLT
M8 X 20MM / From: AA000001 		$2.70 4
HB2 FT110206
BOLT
M10 X 20MM / From: AA000001
IN STOCK 		$2.03 4
HB3 KYG500311
BOLT
M10 x 40MM / From: AA000001 		$3.01 2
HB4 RYG501530
BOLT
M10 x 40MM / From: AA000001 		$0.78 2
HB5 FB110106
BOLT
Hexagonal Head, M10 X 50MM / From: AA000001
IN STOCK 		$1.69 4
HN1 FY110056
NUT
M10 / From: AA000001
IN STOCK 		$4.25 2
HN2 FN110046
NUT - HEX.
M10 / From: AA000001 		$0.69 4
HS1 KYP500250
BOLT
M10 X 30MM / From: AA000001 		$2.01 2
5A669 LR020248
DAMPER
Kit / From: AA000001 / To: AA243707 		$168.15 1
5A669 LR023280
DAMPER
Kit / From: AA243708 		$71.12 1
5D008 KVF500560
DAMPER
Rear / From: AA000001 		$217.03 2
5D008 KVF500580
DAMPER
Front / From: AA000001 		$235.28 2
6M046 RNB501130
DAMPER
Front / From: AA000001 		$82.11 2
14A705A RQU500630
BRACKET
LH, Front / From: AA000001 		$9.04 1
14A705B RQU500620
BRACKET
RH, Front / From: AA000001 		$47.89 1
14A705C RQU500650
BRACKET
LH, Rear / From: AA000001 		$136.16 1
14A705D RQU500640
BRACKET
RH, Rear / From: AA000001 		$136.16 1
14A705E RQU500660
BRACKET
RH, Rear / From: AA000001 		$71.28 1
14A705F RQU500670
BRACKET
LH, Rear / From: AA000001 		$67.40 1
3961 KVU500301
BRACKET - DAMPER
From: AA000001 		$34.21 2
