View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR006027	BOLT	$6.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005996	GEAR - CRANKSHAFT	$122.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013377	BOLT - HEX.HEAD	$13.66	To Order

Photo	Part No	Description	Price (each)	Stock
	1311306	KIT - DRIVE BELT	$83.88	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR016655	BELT - TIMING	$209.65	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR006027	BOLT	LR006027 BOLT 3.0L 24V DOHC V6 TC Diesel / M8 X 75MM / From: AA000001	$6.44	1
HS1	LR004104	SCREW	LR004104 SCREW M10 X 25MM / From: AA000001 / To: AA262641	$3.31	2
HS1	FT110256	SCREW IN STOCK	FT110256 SCREW M10 X 25MM / From: BA262642 IN STOCK	$2.30	2
6A345	LR013377	BOLT - HEX.HEAD	LR013377 BOLT - HEX.HEAD M16 X 70 / From: AA000001	$13.66	1
6C349	1311306	KIT - DRIVE BELT IN STOCK	1311306 KIT - DRIVE BELT Timing Belt / From: AA000001 IN STOCK	$83.88	2
6M260	LR016655	BELT - TIMING	LR016655 BELT - TIMING 3.0L 24V DOHC V6 TC Diesel / From: AA000001	$209.65	1
6306	LR005996	GEAR - CRANKSHAFT	LR005996 GEAR - CRANKSHAFT 3.0L 24V DOHC V6 TC Diesel / From: AA000001	$122.56	1

Haven't found what you're looking for?

View Cart / Checkout

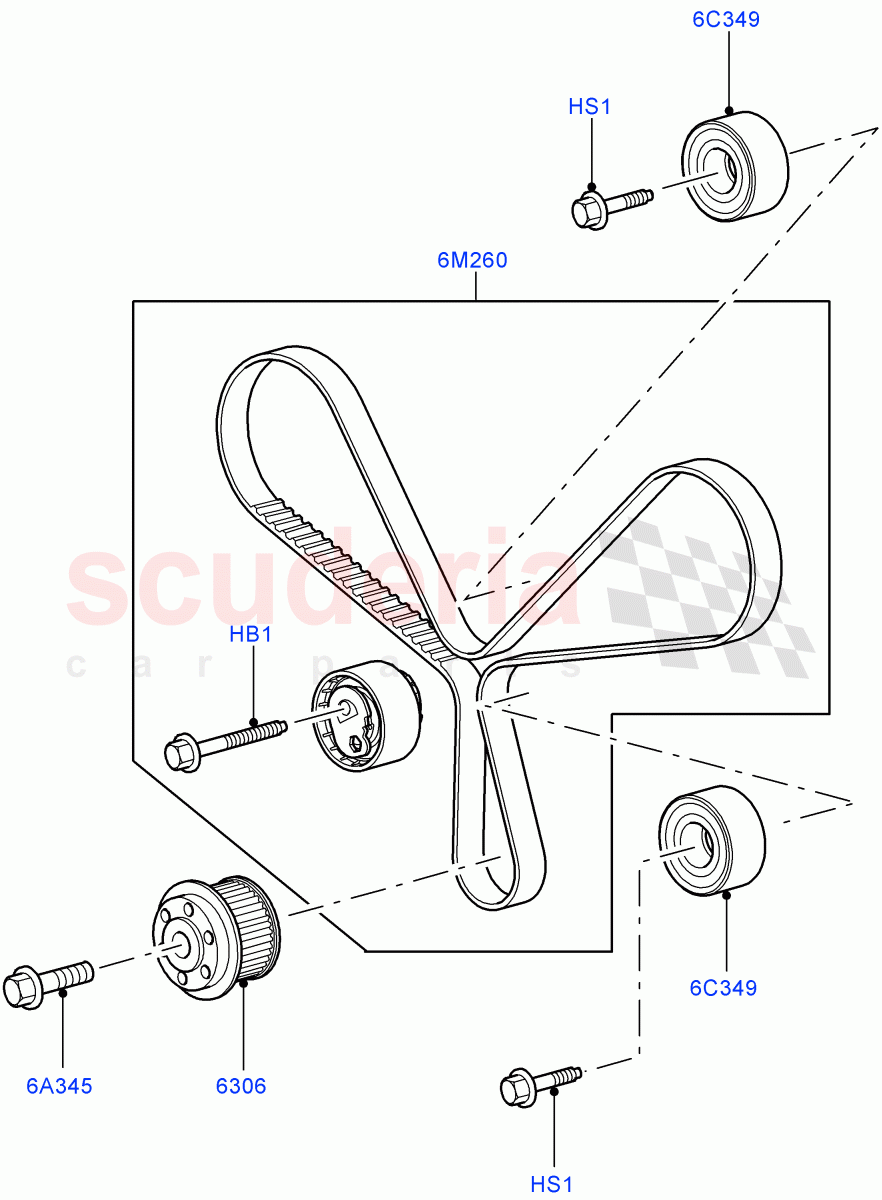

Timing Gear (Solihull Plant Build, Lower) (3.0 V6 Diesel) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]
