View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108167	SCREW	$0.77	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	$0.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR016639	COOLER - FUEL	$238.43	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108167	SCREW	FS108167 SCREW M8 X 16MM / From: AA000001	$0.77	1
HB2	FS106126	BOLT IN STOCK	FS106126 BOLT Hexagonal Head, M6 x 12MM / From: AA000001 IN STOCK	$0.52	2
9N103A	PIB500052	COOLER - FUEL	PIB500052 COOLER - FUEL From: AA000001 / To: BA700265	$299.22	1
9N103A	LR031827	COOLER - FUEL	LR031827 COOLER - FUEL From: BA700266	$138.11	1
9N103B	LR016639	COOLER - FUEL	LR016639 COOLER - FUEL Front / From: AA000001	$238.43	1

Haven't found what you're looking for?

View Cart / Checkout

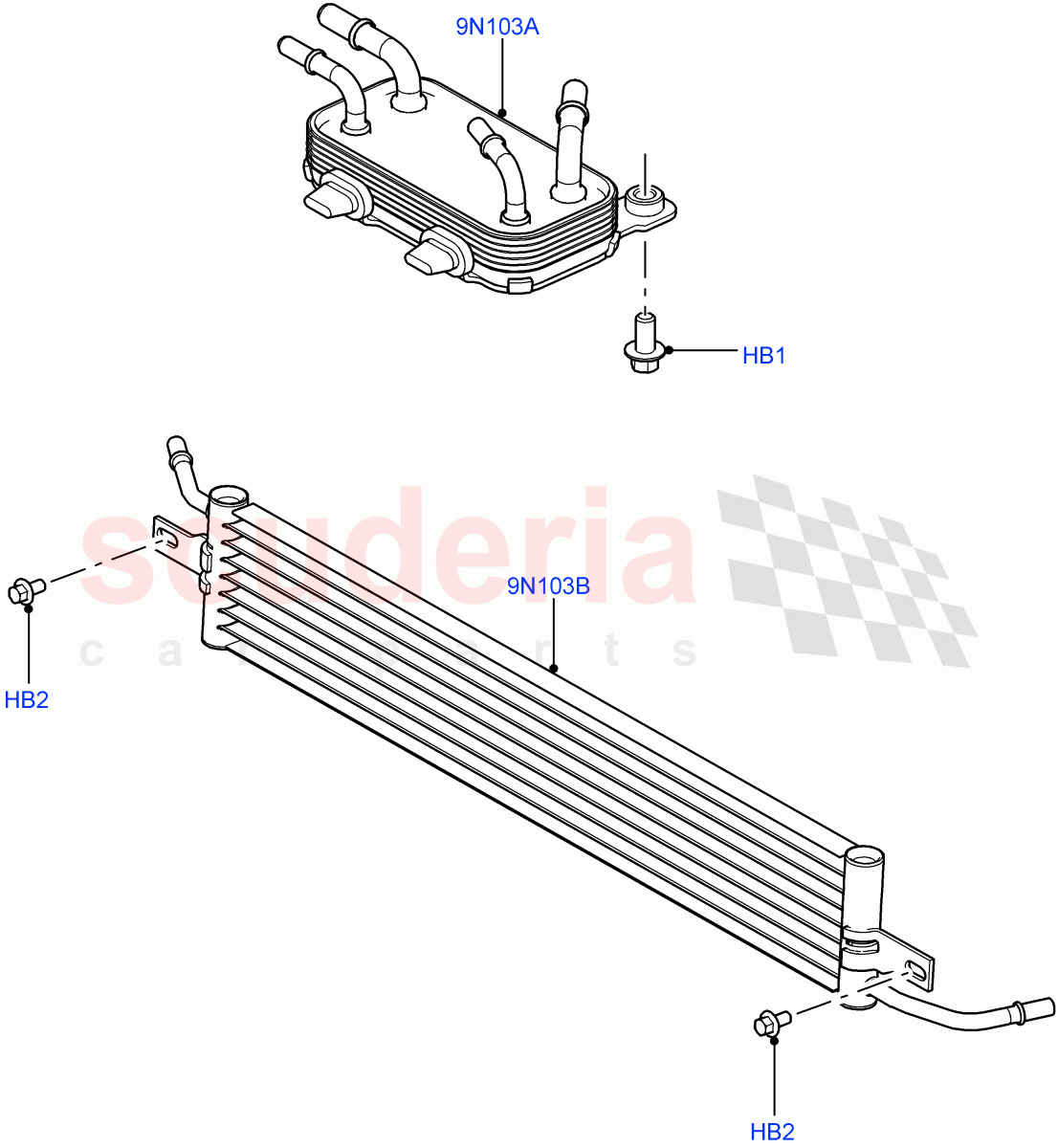

Fuel Cooler Assembly (3.0 V6 Diesel) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]
