Cooling System Pipes And Hoses (3.0L 24V Dohc V6 Tc Diesel) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Cooling System Pipes And Hoses (3.0L 24V DOHC V6 TC Diesel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT $0.68 IN STOCK
Photo Part No Description Price (each) Stock
1007604 BOLT - HEX.HEAD $0.76 To Order
Photo Part No Description Price (each) Stock
BYP500170 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
RYG500220 SCREW $3.46 IN STOCK
Photo Part No Description Price (each) Stock
1336551 GASKET $3.74 To Order
Photo Part No Description Price (each) Stock
LR033675 THERMOSTAT $110.22 IN STOCK
Photo Part No Description Price (each) Stock
LR073372 CONNECTION - WATER OUTLET $65.41 IN STOCK
Photo Part No Description Price (each) Stock
LR013678 HOSE - HEATER WATER $25.77 To Order
Photo Part No Description Price (each) Stock
LR013691 HOSE - FUEL COOLER $92.22 To Order
Photo Part No Description Price (each) Stock
LR013685 HOSE - THERMOSTAT $224.63 To Order
LR020126 HOSE - THERMOSTAT $242.63 To Order
LR025969 HOSE - THERMOSTAT $355.46 To Order
Photo Part No Description Price (each) Stock
LR013682 HOSE - RADIATOR $44.65 To Order
LR095544 HOSE - RADIATOR $53.87 IN STOCK
LR043326 HOSE - RADIATOR $55.67 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR025236 HOSE - RADIATOR $144.40 To Order
Photo Part No Description Price (each) Stock
LR013683 HOSE - RADIATOR $157.52 To Order
Photo Part No Description Price (each) Stock
LR025236 HOSE - RADIATOR $144.40 To Order
Photo Part No Description Price (each) Stock
LR013165 TUBE - CONNECTING $31.71 To Order
Photo Part No Description Price (each) Stock
LR015811 HOSE $37.61 To Order
Photo Part No Description Price (each) Stock
LR013694 HOSE - FUEL $71.73 To Order
Photo Part No Description Price (each) Stock
LR014204 HOSE - FUEL $73.59 To Order
Photo Part No Description Price (each) Stock
LR018829 GASKET - THERMOSTAT $3.69 To Order
Photo Part No Description Price (each) Stock
LR013163 HOSE - EGR COOLER $132.49 To Order
LR033912 HOSE - EGR COOLER $163.48 To Order
Photo Part No Description Price (each) Stock
LR014152 HOSE $72.01 To Order
Photo Part No Description Price (each) Stock
4346360 SENSOR - ENGINE COOLANT TEMPERATURE $59.77 To Order
LR041442 SENSOR - ENGINE COOLANT TEMPERATURE $49.04 To Order
View All

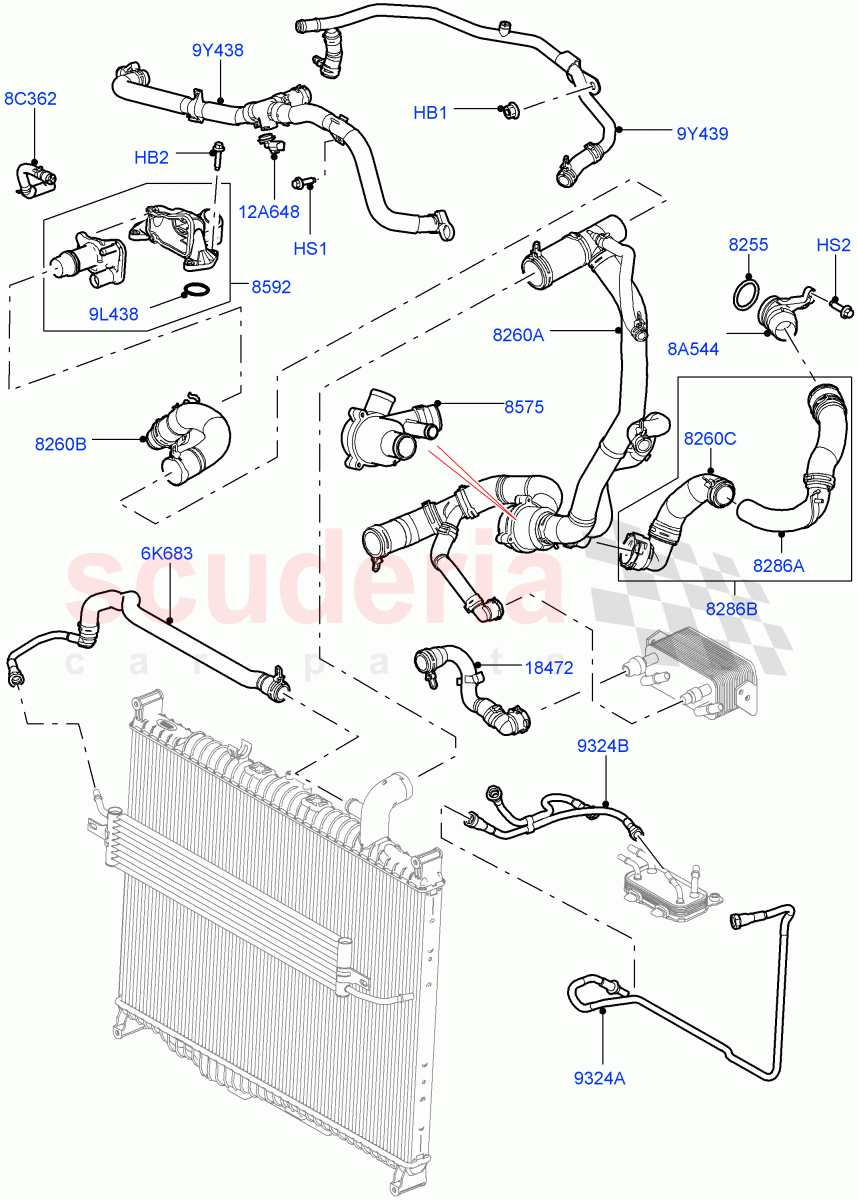

Cooling System Pipes And Hoses (3.0L 24V DOHC V6 TC Diesel) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108166
BOLT
Hexagonal Head, M8 X 16MM / From: AA000001
IN STOCK 		$0.68 2
HB2 1007604
BOLT - HEX.HEAD
M6 X 25MM / From: AA000001 		$0.76 4
HS1 BYP500170
SCREW
Hexagonal Head, M6 x 14MM / From: AA000001
IN STOCK 		$1.24 2
HS2 RYG500220
SCREW
Hexagonal Head, M6 X 20MM / From: AA000001
IN STOCK 		$3.46 2
6K683 LR013691
HOSE - FUEL COOLER
For Fuel Cooler, Outlet, Radiator To Cooler, Upper / From: AA000001 		$92.22 1
8A544 LR013165
TUBE - CONNECTING
Bottom / From: AA000001 		$31.71 1
8C362 LR015811
HOSE
Cooling System Bleed / From: AA000001 		$37.61 1
9L438 LR018829
GASKET - THERMOSTAT
Thermostat Housing / From: AA000001 		$3.69 2
9Y438 LR013163
HOSE - EGR COOLER
Cooled EGR, Inlet Tube / From: AA000001 / To: BA999999 		$132.49 1
9Y438 LR033912
HOSE - EGR COOLER
Cooled EGR, Inlet Tube / From: CA000001 		$163.48 1
9Y439 LR014152
HOSE
From EGR Cooler To Heater Inlet, Outlet Tube / From: AA000001 		$72.01 1
12A648 4346360
SENSOR - ENGINE COOLANT TEMPERATURE
From: AA000001 / To: CA999999 		$59.77 1
12A648 LR041442
SENSOR - ENGINE COOLANT TEMPERATURE
From: DA000001 		$49.04 1
8255 1336551
GASKET
From: AA000001 		$3.74 1
8260A LR013685
HOSE - THERMOSTAT
Engine To Radiator, From Reservoir To Tube, Thermostat And Housing Assy, Top & Bottom, Transmission Cooler Line / From: AA000001 / To: AA220653 		$224.63 1
8260A LR020126
HOSE - THERMOSTAT
Engine To Radiator, From Reservoir To Tube, Thermostat And Housing Assy, Top & Bottom, Transmission Cooler Line / From: AA220654 / To: AA262011 		$242.63 1
8260A LR025969
HOSE - THERMOSTAT
Engine To Radiator, From Reservoir To Tube, Thermostat And Housing Assy, Top & Bottom, Transmission Cooler Line / From: AA262012 		$355.46 1
8260B LR013682
HOSE - RADIATOR
To Engine, Top / From: AA000001 / To: AA218118 		$44.65 1
8260B LR095544
HOSE - RADIATOR
To Engine, Top / From: AA218119 / To: DA771523
IN STOCK 		$53.87 1
8260B LR043326
HOSE - RADIATOR
To Engine, Top / From: DA771524 / To: DA798696 		$55.67 1
8260B LR095544
HOSE - RADIATOR
To Engine, Top / From: DA798697 / To: DA802214
IN STOCK 		$53.87 1
8260B LR118802
HOSE - RADIATOR
To Engine, Top / From: DA802215 		$51.26 1
8260C LR025236
HOSE - RADIATOR
Bottom / From: AA000001 / To: AA262011 		$144.40 1
8286A LR013683
HOSE - RADIATOR
Bottom, To Engine / From: AA000001 / To: AA262011 		$157.52 1
8286B LR025236
HOSE - RADIATOR
Bottom, To Engine, Two Piece / From: AA262012 		$144.40 1
8575 LR033675
THERMOSTAT
From: AA000001
IN STOCK 		$110.22 1
8592 LR073372
CONNECTION - WATER OUTLET
From: AA000001
IN STOCK 		$65.41 1
9324A LR013694
HOSE - FUEL
For Fuel Cooler, Inlet / From: AA000001 		$71.73 1
9324B LR014204
HOSE - FUEL
Bottom, For Fuel Cooler, Inlet, Outlet / From: AA000001 		$73.59 1
18472 LR013678
HOSE - HEATER WATER
Bottom, Radiator To Cooler, Transmission Cooler Line / From: AA000001 		$25.77 1
