Pulleys And Drive Belts (Front) (3.0 V6 Diesel, Less Roll Stability Control, Less Ace Suspension)...

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Pulleys And Drive Belts (Front) (3.0 V6 Diesel, Less Roll Stability Control, Less ACE Suspension)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4622661 SCREW $0.73 To Order
Photo Part No Description Price (each) Stock
LYG500250 BOLT $3.04 To Order
Photo Part No Description Price (each) Stock
LR003513 SCREW $7.13 To Order
Photo Part No Description Price (each) Stock
1311327 PULLEY - WATER PUMP $18.37 To Order
Photo Part No Description Price (each) Stock
LR013539 PULLEY - FAN $100.11 To Order
Photo Part No Description Price (each) Stock
LR013697 V-BELT $69.85 To Order
Photo Part No Description Price (each) Stock
1335282 BRACKET $200.94 To Order
Photo Part No Description Price (each) Stock
1406627 BOLT - HEX.HEAD $1.92 IN STOCK
Photo Part No Description Price (each) Stock
LR016140 TENSIONER - DRIVE BELT $180.89 To Order
LR035493 TENSIONER - DRIVE BELT $198.10 To Order
Photo Part No Description Price (each) Stock
LR067312 PULLEY - CRANKSHAFT $395.52 To Order
Photo Part No Description Price (each) Stock
LR013506 PULLEY - IDLER $98.77 IN STOCK
View All

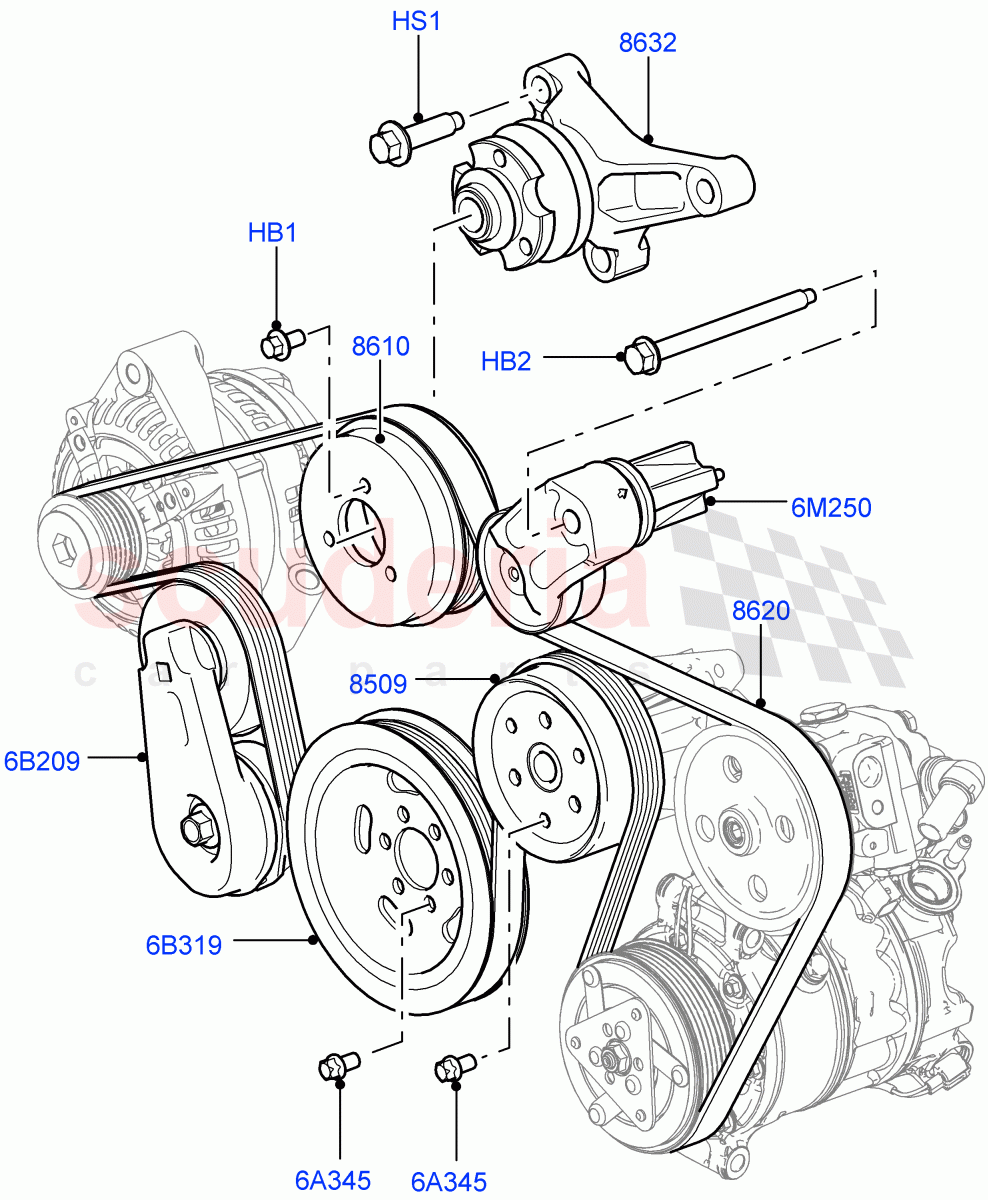

Pulleys And Drive Belts (Front) (3.0 V6 Diesel, Less Roll Stability Control, Less ACE Suspension) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 4622661
SCREW
M8 X 16MM, Pulley / From: AA000001 		$0.73 3
HB2 LYG500250
BOLT
idler, M10 X 115 / From: AA000001 		$3.04 1
HS1 LR003513
SCREW
M12 x 40MM / From: AA000001 		$7.13 3
6A345 1406627
BOLT - HEX.HEAD
M8 X 14MM, Pulley / From: AA000001
IN STOCK 		$1.92 9
6B209 LR016140
TENSIONER - DRIVE BELT
From: AA000001 / To: CA999999 		$180.89 1
6B209 LR035493
TENSIONER - DRIVE BELT
Drive Belt / From: DA000001 		$198.10 1
6B319 LR067312
PULLEY - CRANKSHAFT
Pulley And Damper Assembly / From: AA000001 		$395.52 1
6M250 LR013506
PULLEY - IDLER
From: AA000001
IN STOCK 		$98.77 1
8509 1311327
PULLEY - WATER PUMP
From: AA000001 		$18.37 1
8610 LR013539
PULLEY - FAN
Fan / From: AA000001 		$100.11 1
8620 LR013697
V-BELT
6PK2102 / From: AA000001 		$69.85 1
8632 1335282
BRACKET
Fan, Pulley / From: AA000001 		$200.94 1
