Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Timing Gear (Auxiliary Drive) (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR011063 PIN $1.21 IN STOCK
Photo Part No Description Price (each) Stock
LR011522 SCREW $2.89 IN STOCK
Photo Part No Description Price (each) Stock
LR011064 SCREW M6 X 38 $2.58 IN STOCK
Photo Part No Description Price (each) Stock
LR010904 SCREW $1.24 To Order
Photo Part No Description Price (each) Stock
LR010696 WASHER - CRANKSHAFT SPROCKET $27.40 To Order
Photo Part No Description Price (each) Stock
LR087162 TENSIONER - DRIVE CHAIN $40.58 IN STOCK
LR087162 TENSIONER - DRIVE CHAIN $40.58 IN STOCK
Photo Part No Description Price (each) Stock
LR037021 SHAFT - FUEL PUMP DRIVE $630.40 To Order
LR067417 SHAFT - FUEL PUMP DRIVE $288.77 To Order
Photo Part No Description Price (each) Stock
LR032087 CHAIN - AUXILIARY DRIVE $52.30 IN STOCK
Photo Part No Description Price (each) Stock
LR010691 KEY - WOODRUFF $3.04 To Order
Photo Part No Description Price (each) Stock
LR072611 SPROCKET - CRANKSHAFT $55.98 To Order
LR072611 SPROCKET - CRANKSHAFT $55.98 To Order
Photo Part No Description Price (each) Stock
LR012110 GUIDE - LOWER $9.08 IN STOCK
Photo Part No Description Price (each) Stock
LR032714 JET - CHAIN LUBRICATING $51.67 IN STOCK
Photo Part No Description Price (each) Stock
LR042667 JET - CHAIN LUBRICATING $27.19 To Order
LR059161 JET - CHAIN LUBRICATING $18.89 IN STOCK
View All

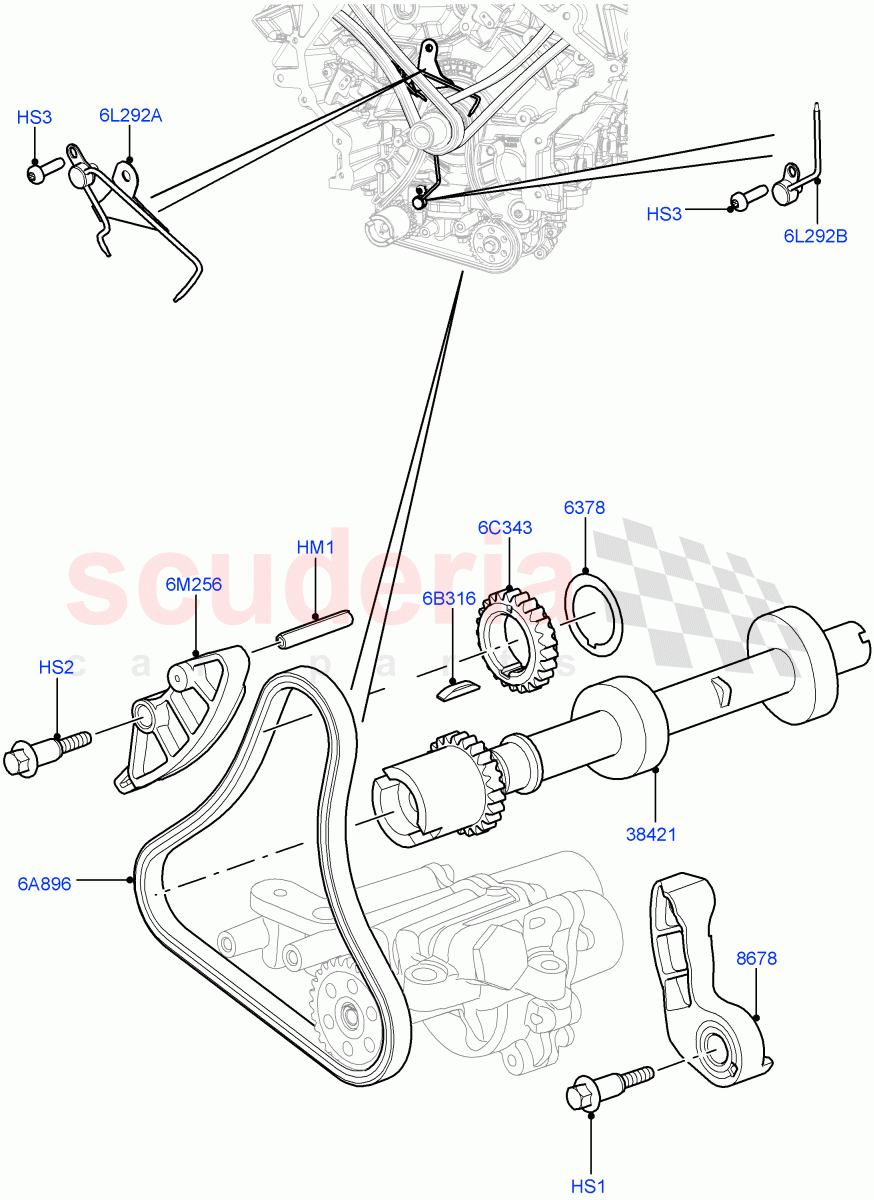

Timing Gear (Auxiliary Drive) (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HM1 LR011063
PIN
6 x 36MM, Pin
IN STOCK 		$1.21 1
HS1 LR011522
SCREW
Auxiliary Drive, M8 X 45MM, Tensioner
IN STOCK 		$2.89 1
HS2 LR011064
SCREW M6 X 38
Auxiliary Drive, Chain Guide, M6 X 38MM
IN STOCK 		$2.58 1
HS3 LR010904
SCREW
M6 X 20MM, Washer Nozzle 		$1.24 2
6A896 LR032087
CHAIN - AUXILIARY DRIVE
IN STOCK 		$52.30 1
6B316 LR010691
KEY - WOODRUFF 		$3.04 1
6C343 LR072611
SPROCKET - CRANKSHAFT
Auxiliary Drive, Crankshaft / To: FA999999 		$55.98 1
6C343 LR072611
SPROCKET - CRANKSHAFT
Auxiliary Drive, Crankshaft / From: GA000001 		$55.98 1
6L292A LR032714
JET - CHAIN LUBRICATING
Chain Lubricating, Upper
IN STOCK 		$51.67 1
6L292B LR042667
JET - CHAIN LUBRICATING
Chain Lubricating, Lower / To: EA373118 		$27.19 1
6L292B LR059161
JET - CHAIN LUBRICATING
Chain Lubricating, Lower / From: EA373119
IN STOCK 		$18.89 1
6M256 LR012110
GUIDE - LOWER
Auxiliary Drive Chain
IN STOCK 		$9.08 1
6378 LR010696
WASHER - CRANKSHAFT SPROCKET
Crankshaft, Sprocket - Drive 		$27.40 1
8678 LR087162
TENSIONER - DRIVE CHAIN
Auxiliary Drive Chain / To: EA300002
IN STOCK 		$40.58 1
8678 LR087162
TENSIONER - DRIVE CHAIN
Auxiliary Drive Chain / From: EA300003
IN STOCK 		$40.58 1
38421 LR037021
SHAFT - FUEL PUMP DRIVE
With Sprocket / To: FA504833 		$630.40 1
38421 LR067417
SHAFT - FUEL PUMP DRIVE
With Sprocket / From: FA504834 		$288.77 1
