Fuel Injectors And Pipes (5.0 Petrol Aj133 Dohc Cda, 5.0L P Aj133 Dohc Cda S/C Enhanced) ((V)...

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Fuel Injectors And Pipes (5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR012779 BOLT $1.04 To Order
Photo Part No Description Price (each) Stock
FS106122 BOLT $4.08 To Order
Photo Part No Description Price (each) Stock
LR054833 CLIP $4.71 To Order
Photo Part No Description Price (each) Stock
FN105042 NUT - HEX. - FLANGED $0.52 IN STOCK
Photo Part No Description Price (each) Stock
LR011274 SCREW $2.60 To Order
Photo Part No Description Price (each) Stock
LR010904 SCREW $1.24 To Order
Photo Part No Description Price (each) Stock
LR030807 SCREW $1.40 IN STOCK
Photo Part No Description Price (each) Stock
LR097271 Pipe - Fuel Enquire To Order
LR116433 PIPE - FUEL $89.94 To Order
Photo Part No Description Price (each) Stock
LR012782 SHIELD - FUEL TUBES $8.16 To Order
Photo Part No Description Price (each) Stock
LR065487 PIPE - FUEL $244.00 To Order
Photo Part No Description Price (each) Stock
LR088579 TUBE - FUEL CROSSOVER $102.31 To Order
Photo Part No Description Price (each) Stock
LR108241 SENSOR - FUEL PRESSURE/TEMPERATURE $116.36 To Order
Photo Part No Description Price (each) Stock
LR105590 KIT - FUEL INJECTION $231.25 IN STOCK
Photo Part No Description Price (each) Stock
LR037089 KIT - INJECTOR REFIT $28.53 IN STOCK
Photo Part No Description Price (each) Stock
LR077733 MANIFOLD - FUEL SUPPLY $630.27 To Order
Photo Part No Description Price (each) Stock
LR077734 MANIFOLD - FUEL SUPPLY $537.99 To Order
View All

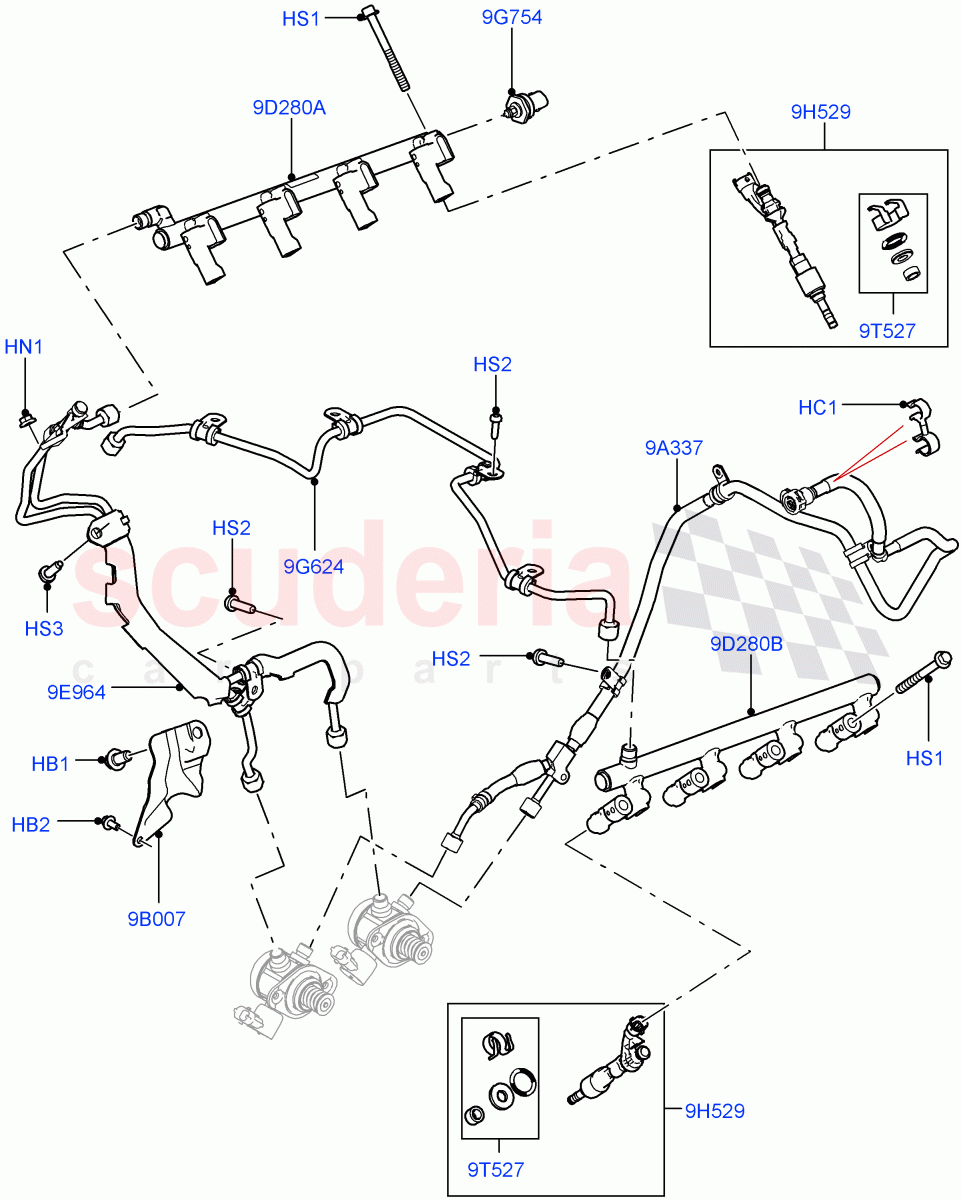

Fuel Injectors And Pipes (5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR012779
BOLT
M10 X 20MM / From: JA000001 		$1.04 1
HB2 FS106122
BOLT
Cover, M6 x 12MM / From: JA000001 		$4.08 1
HC1 LR054833
CLIP
Breather Pipe, For Fuel Tube / From: JA000001 		$4.71 1
HN1 FN105042
NUT - HEX. - FLANGED
M5 / From: JA000001
IN STOCK 		$0.52 1
HS1 LR011274
SCREW
Fuel Rail / From: JA000001 		$2.60 8
HS2 LR010904
SCREW
M6 X 20MM / From: JA000001 		$1.24 7
HS3 LR030807
SCREW
M8 X 25MM, Torx / From: JA000001
IN STOCK 		$1.40 1
9A337 LR097271
Pipe - Fuel
Pump Feed / From: JA000001 / To: JA193550 		- 1 Enquire
9A337 LR116433
PIPE - FUEL
Pump Feed / From: JA193551 		$89.94 1
9B007 LR012782
SHIELD - FUEL TUBES
Fuel Lines To Fuel Rail / From: JA000001 		$8.16 1
9D280A LR077733
MANIFOLD - FUEL SUPPLY
RH / From: JA000001 		$630.27 1
9D280B LR077734
MANIFOLD - FUEL SUPPLY
LH / From: JA000001 		$537.99 1
9E964 LR065487
PIPE - FUEL
Fuel Pump, High Pressure, To Fuel Rail / From: JA000001 		$244.00 1
9G624 LR088579
TUBE - FUEL CROSSOVER
High Pressure, To Fuel Rail / From: JA000001 		$102.31 1
9G754 LR108241
SENSOR - FUEL PRESSURE/TEMPERATURE
From: JA000001 		$116.36 1
9H529 LR105590
KIT - FUEL INJECTION
Injector Assembly, Kit For 1 Cylinder / From: JA000001
IN STOCK 		$231.25 8
9T527 LR037089
KIT - INJECTOR REFIT
Includes Oring, Teflon Seal, Retainer / From: JA000001
IN STOCK 		$28.53 8
