Auxiliary Fuel Fired Pre-Heater (Heater Fuel Supply) (With Fuel Fired Heater, Fuel Fired Heater...

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] - Auxiliary Fuel Fired Pre-Heater (Heater Fuel Supply) (With Fuel Fired Heater, Fuel Fired Heater...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500250 BOLT $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR099629 FUEL PUMP AND FILTER $316.50 To Order
Photo Part No Description Price (each) Stock
LR101818 GROMMET - WIRING $9.58 To Order
Photo Part No Description Price (each) Stock
LR101293 BRACKET - HEATER MOUNTING $45.33 To Order
Photo Part No Description Price (each) Stock
LR092774 TUBE - AUXILIARY HEATER SUPPLY $54.02 To Order
Photo Part No Description Price (each) Stock
LR086523 PIPE - FUEL $46.14 To Order
LR116492 PIPE - FUEL $44.37 To Order
LR126113 PIPE - FUEL $44.37 To Order
Photo Part No Description Price (each) Stock
LR101100 PIPE - FUEL $48.75 To Order
LR101100 PIPE - FUEL $48.75 To Order
LR126112 PIPE - FUEL $44.22 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR100515 TUBE - FUEL $63.32 To Order
LR126108 TUBE - FUEL $63.32 To Order
LR138428 TUBE - FUEL $63.32 To Order
Photo Part No Description Price (each) Stock
LR100517 PIPE - FUEL $95.58 To Order
LR126110 PIPE - FUEL $95.58 To Order
View All

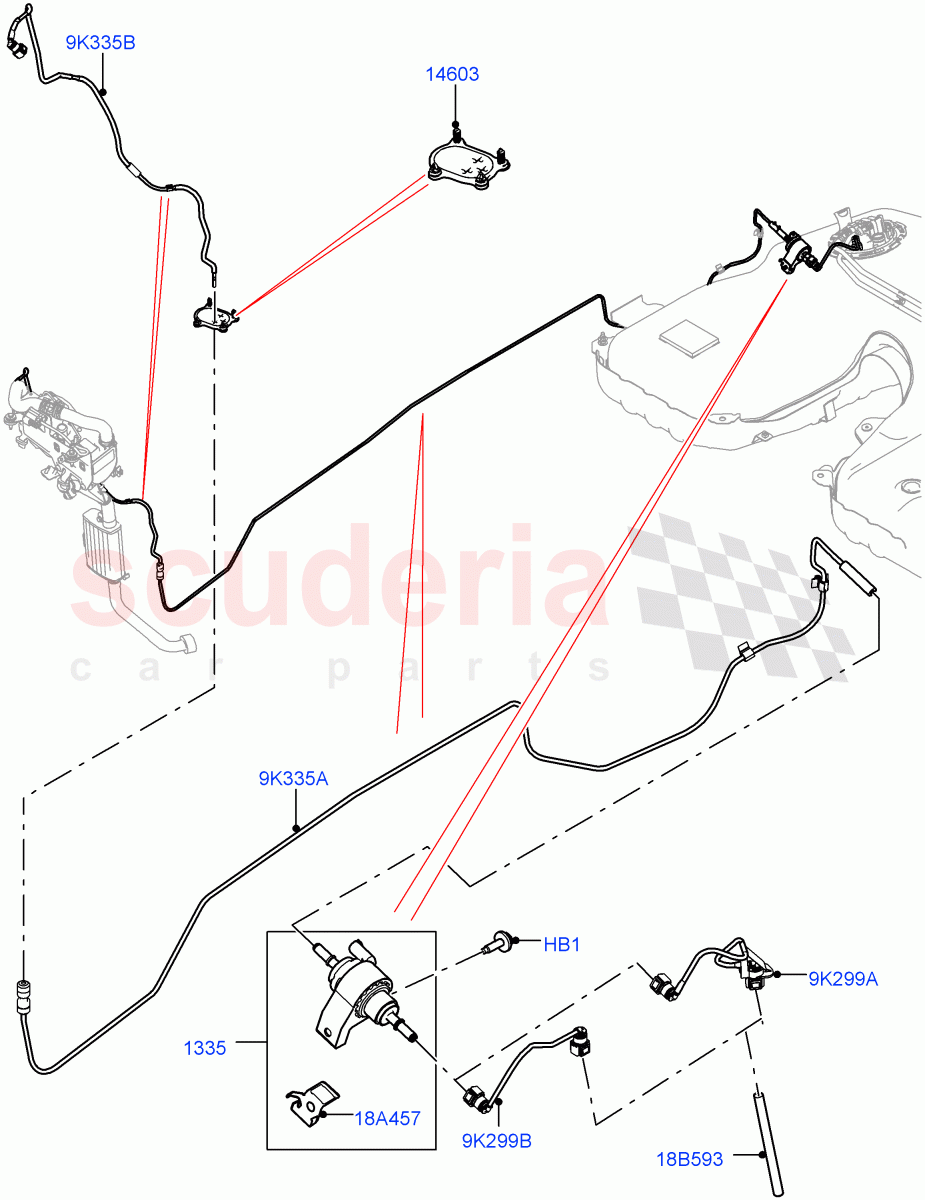

Auxiliary Fuel Fired Pre-Heater (Heater Fuel Supply) (With Fuel Fired Heater, Fuel Fired Heater With Park Heat, Fuel Heater W/Pk Heat With Remote) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500250
BOLT
M6 x 25MM / From: JA000001
IN STOCK 		$1.24 1
9K299A LR086523
PIPE - FUEL
With Diesel Fuel Capability / Tank To Pump / From: JA000001 / To: JA999999 		$46.14 1
9K299A LR116492
PIPE - FUEL
Pet Tank With Leak Det - Lrg Filter / Tank To Pump / From: KA000001 / To: KA859367 		$44.37 1
9K299A LR126113
PIPE - FUEL
Pet Tank With Leak Det - Lrg Filter / Tank To Pump / From: KA859368 		$44.37 1
9K299B LR101100
PIPE - FUEL
Petrol/Electric Hybrid / Tank To Pump / From: JA000001 / To: JA999999 		$48.75 1
9K299B LR101100
PIPE - FUEL
Tank PHEV / Tank To Pump / From: KA000001 / To: KA859367 		$48.75 1
9K299B LR126112
PIPE - FUEL
Tank PHEV / Tank To Pump / From: KA859368 / To: LA738069 		$44.22 1
9K299B LR134980
PIPE - FUEL
Tank PHEV / Tank To Pump / From: LA738070 		$48.75 1
9K335A LR100515
TUBE - FUEL
Pump To Heater, Rear / From: JA000001 / To: KA859367 		$63.32 1
9K335A LR126108
TUBE - FUEL
Pump To Heater, Rear / From: KA859368 / To: LA893660 		$63.32 1
9K335A LR138428
TUBE - FUEL
Pump To Heater, Rear / From: LA893661 		$63.32 1
9K335B LR100517
PIPE - FUEL
Front, Pump To Heater / From: JA000001 / To: KA859367 		$95.58 1
9K335B LR126110
PIPE - FUEL
Front, Pump To Heater / From: KA859368 		$95.58 1
18A457 LR101293
BRACKET - HEATER MOUNTING
From: JA000001 		$45.33 1
18B593 LR092774
TUBE - AUXILIARY HEATER SUPPLY
From: JA000001 		$54.02 1
1335 LR099629
FUEL PUMP AND FILTER
From: JA000001 		$316.50 1
14603 LR101818
GROMMET - WIRING
From: JA000001 		$9.58 1
