Battery And Mountings

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] - Battery And Mountings

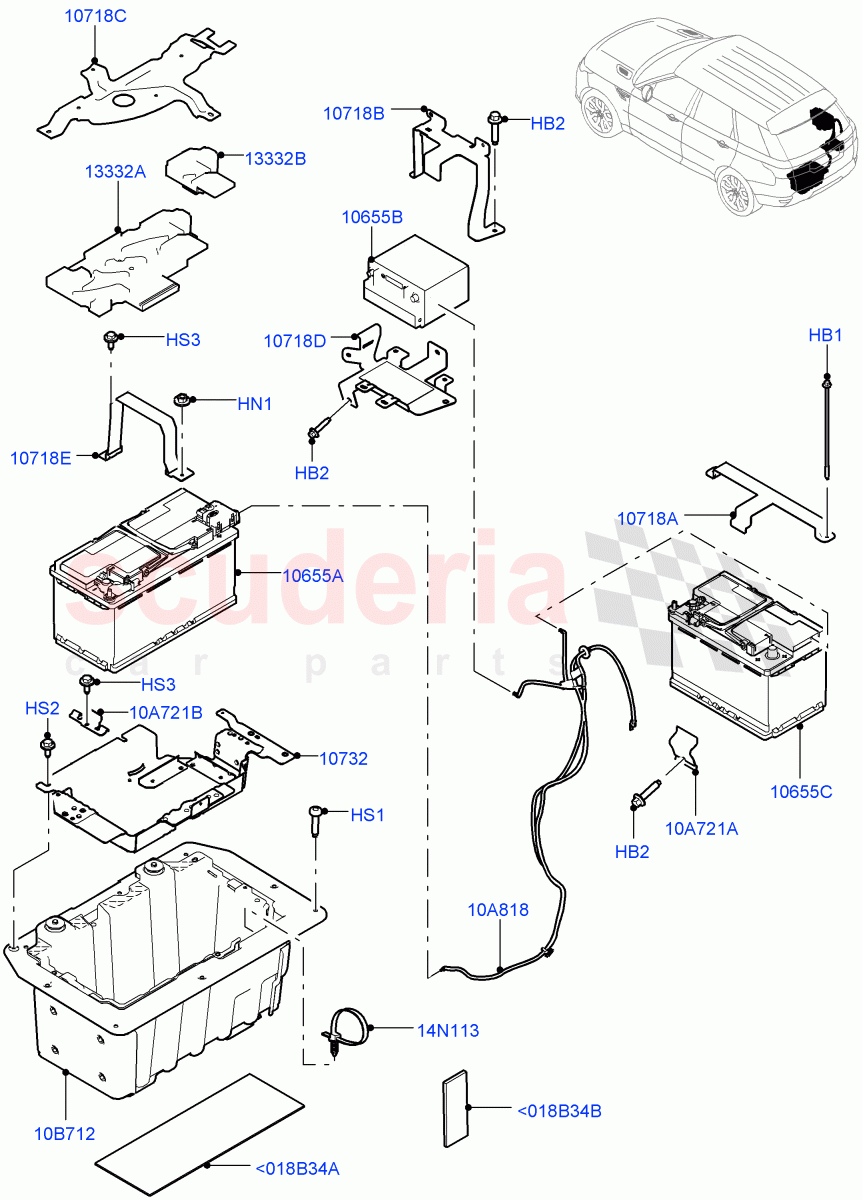

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
XYG000051 BOLT - FLANGED HEX. $4.45 To Order
LR096355 BOLT - FLANGED HEX. $4.45 To Order
Photo Part No Description Price (each) Stock
RYG500250 BOLT $1.25 IN STOCK
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $3.13 IN STOCK
Photo Part No Description Price (each) Stock
UYP500030 SCREW $2.79 To Order
Photo Part No Description Price (each) Stock
RYG500900 SCREW $4.24 To Order
Photo Part No Description Price (each) Stock
KYP500400 SCREW AND WASHER $0.62 To Order
Photo Part No Description Price (each) Stock
LR099081 TRAY - BATTERY $184.47 To Order
LR099112 TRAY - BATTERY $158.15 To Order
LR121038 TRAY - BATTERY $170.34 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR033179 BATTERY $405.16 To Order
LR077924 BATTERY $407.36 To Order
LR073414 BATTERY $407.36 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR047630 BATTERY NON SPILLABLE $279.70 To Order
Photo Part No Description Price (each) Stock
LR033178 BATTERY - ADDITIONAL $381.26 To Order
LR061981 BATTERY $388.95 To Order
LR076697 BATTERY $404.56 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR038343 BRACKET - BATTERY HOLD DOWN $42.11 To Order
Photo Part No Description Price (each) Stock
LR044917 BRACKET - BATTERY HOLD DOWN $50.84 To Order
LR044917 BRACKET - BATTERY HOLD DOWN $50.84 To Order
LR100408 BRACKET - BATTERY HOLD DOWN $60.77 To Order
Photo Part No Description Price (each) Stock
LR095420 BRACKET - BATTERY HOLD DOWN $17.61 To Order
Photo Part No Description Price (each) Stock
LR100407 BRACKET - BATTERY HOLD DOWN $58.51 To Order
LR113701 BRACKET - BATTERY HOLD DOWN $57.08 To Order
Photo Part No Description Price (each) Stock
LR108124 BRACKET - BATTERY HOLD DOWN $39.67 To Order
LR107123 BRACKET - BATTERY HOLD DOWN $28.77 To Order
LR125751 BRACKET - BATTERY HOLD DOWN $29.32 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR042327 TUBE - VENTILATION $62.49 To Order
LR042328 TUBE - VENTILATION $69.98 To Order
LR101853 TUBE - VENTILATION $64.79 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR037533 TRAY - BATTERY $224.52 To Order
LR057223 TRAY - BATTERY $223.99 To Order
LR095437 TRAY - BATTERY $198.75 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR037532 PAD - BATTERY TRAY $12.93 To Order
Photo Part No Description Price (each) Stock
LR038156 PAD - BATTERY TRAY $6.63 To Order
Photo Part No Description Price (each) Stock
LR055390 CLIP $4.68 To Order
Photo Part No Description Price (each) Stock
LR038342 BRACKET - BATTERY HOLD DOWN $11.76 To Order
Photo Part No Description Price (each) Stock
LR099103 BRACKET - BATTERY HOLD DOWN $16.03 To Order
LR108115 CLAMP $19.97 To Order
LR108115 CLAMP $19.97 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR055670 INSULATOR - RUBBER $13.20 To Order
Photo Part No Description Price (each) Stock
LR056022 INSULATOR - RUBBER $13.20 To Order
View All
Battery And Mountings of Land Rover Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<018B34A LR055670
INSULATOR - RUBBER 		$13.20 1
<018B34B LR056022
INSULATOR - RUBBER 		$13.20 1
HB1 XYG000051
BOLT - FLANGED HEX.
Auxillary Battery H6 AGM, Standard Electric Starter Motor / 180MM, M6 / To: GA999999 		$4.45 2
HB1 LR096355
BOLT - FLANGED HEX.
Auxillary Battery H6 AGM / 180MM, M6 / From: HA000001 		$4.45 2
HB2 RYG500250
BOLT
Auxillary Battery H6 AGM / M6 x 25MM
IN STOCK 		$1.25 1
HN1 RYH500310
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer / From: JA000001
IN STOCK 		$3.13 1
HS1 UYP500030
SCREW
M6 x 25MM, Torx 		$2.79 8
HS2 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 / From: JA000001 		$4.24 -
HS3 KYP500400
SCREW AND WASHER
Hexagonal Head, M6 X 16MM / From: JA000001 		$0.62 1
10A721A LR038342
BRACKET - BATTERY HOLD DOWN
Auxillary Battery H6 AGM / For Cold Climates Only, Lower 		$11.76 1
10A721B LR099103
BRACKET - BATTERY HOLD DOWN
4.4L DOHC DITC V8 Diesel, With 7 Seat Configuration / From: JA000001 / To: KA421408 		$16.03 1
10A721B LR108115
CLAMP
3.0 V6 D Gen2 Mono Turbo, With 5 Seat Configuration / From: JA000001 		$19.97 1
10A721B LR108115
CLAMP
3.0L AJ20P6 Petrol High, With 5 Seat Configuration / From: KA852821 		$19.97 1
10A721B LR108115
CLAMP
3.0L AJ20D6 Diesel High, With 5 Seat Configuration / From: MA000001 		$19.97 1
10A721B LR121173
BRACKET - BATTERY HOLD DOWN
3.0 V6 D Gen2 Mono Turbo, With 7 Seat Configuration / From: KA421409 		$15.63 1
10A721B LR121173
BRACKET - BATTERY HOLD DOWN
3.0L AJ20P6 Petrol High, With 7 Seat Configuration / From: KA852821 		$15.63 1
10A721B LR121173
BRACKET - BATTERY HOLD DOWN
3.0L AJ20D6 Diesel High, With 7 Seat Configuration / From: MA000001 		$15.63 1
10A818 LR042327
TUBE - VENTILATION
Less Auxiliary Batteries, Less Electric Engine Battery 		$62.49 1
10A818 LR042328
TUBE - VENTILATION
Auxillary Battery H6 AGM / To: HA999999 		$69.98 1
10A818 LR101853
TUBE - VENTILATION
Auxillary Battery H6 AGM / From: JA000001 / To: KA831393 		$64.79 1
10A818 LR121367
TUBE - VENTILATION
Electric Engine Battery-MHEV / From: KA000001 		$77.54 1
10A818 LR101853
TUBE - VENTILATION
Electric Engine Battery-PHEV / From: KA831394 		$64.79 1
10B712 LR037533
TRAY - BATTERY
To: EA320242 		$224.52 1
10B712 LR057223
TRAY - BATTERY
From: EA320243 / To: GA999997 		$223.99 1
10B712 LR095437
TRAY - BATTERY
From: HA000001 / To: HA158925 		$198.75 1
10B712 LR090466
TRAY - BATTERY
From: GA999998 / To: GA999999 		$200.31 1
10B712 LR106408
TRAY - BATTERY
From: HA158926 / To: HA999999 		$310.38 1
10B712 LR110774
TRAY - BATTERY
2.0L I4 DSL HIGH DOHC AJ200 / From: JA000001 / To: KA419509 		$163.20 1
10B712 LR099082
TRAY - BATTERY
2.0L AJ200P Hi PHEV / From: JA000001 / To: KA419509 		$184.47 1
10B712 LR122947
TRAY - BATTERY
4.4L DOHC DITC V8 Diesel / From: KA419510 		$310.38 1
10B712 LR122948
TRAY - BATTERY
2.0L AJ200P Hi PHEV / From: KA419510 		$299.42 1
14N113 LR055390
CLIP
Cable Tie With Holder, Plastic 		$4.68 1
10655A LR033179
BATTERY
850 Amp, AGM(Absorbed Glass Mat) / To: EA500731 		$405.16 1
10655A LR077924
BATTERY
850 Amp, AGM(Absorbed Glass Mat) / From: FA529853 / To: GA107902 		$407.36 1
10655A LR073414
BATTERY
850 Amp, AGM(Absorbed Glass Mat) / From: EA500732 / To: FA529852 		$407.36 1
10655A LR093840
Battery
(+)"BR", H8 AGM Battery / AGM(Absorbed Glass Mat) / From: GA000001 		$981.50 1
10655A LR094642
BATTERY
850 Amp, AGM(Absorbed Glass Mat) / From: GA107903 		$386.20 1
10655A LR104511
Battery
12V, 900 Amp, AGM(Absorbed Glass Mat), H8 Battery, USA Locally Sourced From Interstate Only - Interstate Part Number MT5-49/H8 		$306.15 1
10655B LR047630
BATTERY NON SPILLABLE
Auxillary Battery 14AH B19, Starter - Stop/Start System 		$279.70 1
10655C LR033178
BATTERY - ADDITIONAL
Auxillary Battery H6 AGM / 12V-70AH, 760A, For Cold Climates Only / To: EA501210 		$381.26 1
10655C LR061981
BATTERY
Auxillary Battery H6 AGM, Standard Electric Starter Motor / 12V-70AH, 760A, For Cold Climates Only / From: EA501211 / To: FA529892 		$388.95 1
10655C LR076697
BATTERY
Auxillary Battery H6 AGM / 12V-70AH, 760A, For Cold Climates Only / From: FA529893 / To: FA999999 		$404.56 1
10655C LR094611
BATTERY
Auxillary Battery H6 AGM / 12V-70AH, 760A, For Cold Climates Only / From: GA107903 / To: GA572526 		$393.94 1
10655C LR076697
BATTERY
Auxillary Battery H6 AGM / 12V-70AH, 760A, For Cold Climates Only / From: GA000001 / To: GA107902 		$404.56 1
10655C LR076697
BATTERY
Auxillary Battery H6 AGM / 12V-70AH, 760A, For Cold Climates Only / From: GA572527 / To: GA599999 		$404.56 1
10655C LR105924
BATTERY
(+)"BR", Auxillary Battery H6 AGM / 12V-70AH, 760A 		$429.87 1
10655C LR094611
BATTERY
Auxillary Battery H6 AGM / 12V-70AH, 760A, For Cold Climates Only / From: GA600000 		$393.94 1
10718A LR038343
BRACKET - BATTERY HOLD DOWN
Auxillary Battery H6 AGM / For Cold Climates Only, Upper 		$42.11 1
10718B LR044917
BRACKET - BATTERY HOLD DOWN
Auxillary Battery 14AH B19, Starter - Stop/Start System / To: HA999999 		$50.84 1
10718B LR044917
BRACKET - BATTERY HOLD DOWN
Auxillary Battery 14AH B19, Diesel/Electric - Hybrid / From: JA000001 		$50.84 1
10718B LR100408
BRACKET - BATTERY HOLD DOWN
Auxillary Battery 14AH B19, Petrol/Electric Hybrid / From: JA000001 		$60.77 1
10718C LR095420
BRACKET - BATTERY HOLD DOWN
With Standard Duty Coil Spring Susp / From: HA000001 		$17.61 1
10718D LR100407
BRACKET - BATTERY HOLD DOWN
Auxillary Battery 14AH B19, Petrol/Electric Hybrid / From: JA000001 / To: JA193013 		$58.51 1
10718D LR113701
BRACKET - BATTERY HOLD DOWN
Auxillary Battery 14AH B19, Petrol/Electric Hybrid / From: JA193014 		$57.08 1
10718E LR108124
BRACKET - BATTERY HOLD DOWN
2.0L I4 High DOHC AJ200 Petrol, With 5 Seat Configuration / From: JA000001 / To: JA324676 		$39.67 1
10718E LR107123
BRACKET - BATTERY HOLD DOWN
4.4L DOHC DITC V8 Diesel, With 7 Seat Configuration / From: JA000001 / To: KA421408 		$28.77 1
10718E LR125751
BRACKET - BATTERY HOLD DOWN
2.0L AJ200P Hi PHEV, With 7 Seat Configuration / From: KA421409 		$29.32 1
10718E LR118141
BRACKET - BATTERY HOLD DOWN
3.0 V6 D Low MT ROW, With 5 Seat Configuration / From: JA324677 		$39.67 1
10732 LR099081
TRAY - BATTERY
2.0L AJ200P Hi PHEV / From: JA000001 / To: LA897031 		$184.47 1
10732 LR099112
TRAY - BATTERY
2.0L I4 High DOHC AJ200 Petrol, With 7 Seat Configuration / From: JA000001 / To: KA841044 		$158.15 1
10732 LR121038
TRAY - BATTERY
4.4L DOHC DITC V8 Diesel, With 7 Seat Configuration / From: KA841045 		$170.34 1
10732 LR121038
TRAY - BATTERY
3.0L AJ20P6 Petrol High, With 7 Seat Configuration / From: KA000001 		$170.34 1
10732 LR121037
TRAY - BATTERY
2.0L AJ200P Hi PHEV / From: LA897032 		$179.96 1
13332A LR037532
PAD - BATTERY TRAY 		$12.93 1
13332B LR038156
PAD - BATTERY TRAY 		$6.63 1
