Name: Sliding Roof Mechanism And Controls (Sunroof Frame) (With Roof Conversion-Panorama Roof) ((V) FROMFA000001)
Rating: 5.0 (1 reviews)

View All

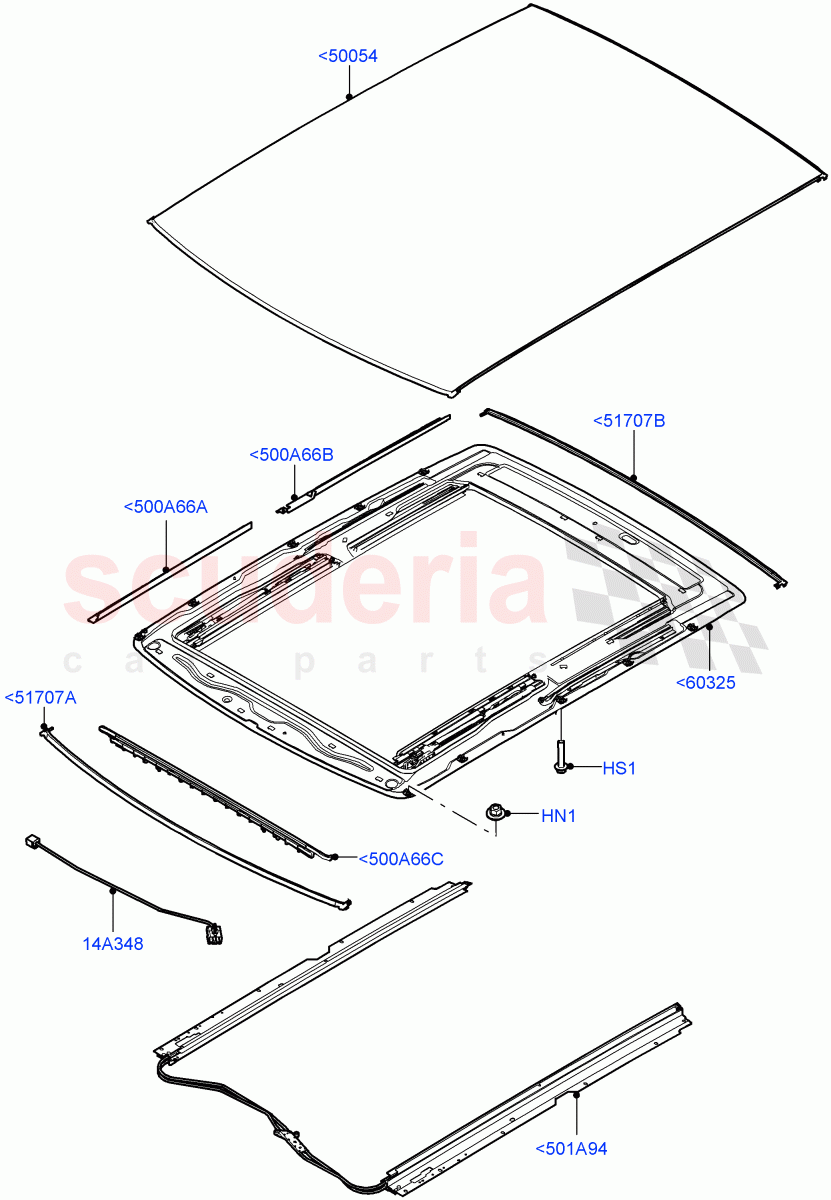

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	TYH500030	NUT	$0.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR040385	SCREW - ROUND HEAD	$1.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066875	FRAME - SLIDING ROOF PANEL OPENING	$3,868.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067244	WIRING - ROOF	$347.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163712	FRAME - SLIDING ROOF PANEL OPENING	$4,125.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163710	SEAL - ROOF PANEL OPENING	$111.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163708	SEAL - ROOF PANEL OPENING	$111.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066877	SHIELD - SUNROOF RAIL	$97.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066878	SHIELD - SUNROOF RAIL	$97.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066879	SHIELD - SUNROOF RAIL	$102.41	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<500A66A	LR066877	SHIELD - SUNROOF RAIL	LR066877 SHIELD - SUNROOF RAIL Front / From: FA000001	$97.02	1
<500A66B	LR066878	SHIELD - SUNROOF RAIL	LR066878 SHIELD - SUNROOF RAIL Rear / From: FA000001	$97.02	1
<500A66C	LR066879	SHIELD - SUNROOF RAIL	LR066879 SHIELD - SUNROOF RAIL Centre / From: FA000001	$102.41	1
<501A94	LR163712	FRAME - SLIDING ROOF PANEL OPENING	LR163712 FRAME - SLIDING ROOF PANEL OPENING From: FA000001	$4,125.87	1
<50054	LR098194	GLASS - ROOF	LR098194 GLASS - ROOF From: JA000001	$2,864.79	1
<50054	LR163694	GLASS - ROOF	LR163694 GLASS - ROOF From: FA000001	$2,864.79	1
<51707A	LR163710	SEAL - ROOF PANEL OPENING	LR163710 SEAL - ROOF PANEL OPENING Front / From: FA000001	$111.42	1
<51707B	LR163708	SEAL - ROOF PANEL OPENING	LR163708 SEAL - ROOF PANEL OPENING Rear / From: FA000001	$111.42	1
<60325	LR066875	FRAME - SLIDING ROOF PANEL OPENING	LR066875 FRAME - SLIDING ROOF PANEL OPENING Includes Glass / From: FA000001	$3,868.01	1
HN1	TYH500030	NUT IN STOCK	TYH500030 NUT M8 / From: FA000001 IN STOCK	$0.79	2
HS1	LR040385	SCREW - ROUND HEAD	LR040385 SCREW - ROUND HEAD Bolt And Washer, M6X16 / From: FA000001	$1.74	2
14A348	LR067244	WIRING - ROOF	LR067244 WIRING - ROOF From: FA000001	$347.60	1

Sliding Roof Mechanism And Controls (Sunroof Frame) (With Roof Conversion-Panorama Roof) ((V)...

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]
