| Photo | Part No | Description | Price (each) | Stock |
 |
FN106046 | NUT - HEX. | $1.47 | IN STOCK |
| Photo | Part No | Description | Price (each) | Stock |
 |
RYG500900 | SCREW | $4.21 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
 |
FS106166 | SCREW | $1.24 | IN STOCK |
| Photo | Part No | Description | Price (each) | Stock |
|
LR071705 | STUD | $4.12 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR023066 | BRACKET - FUEL PUMP | $7.04 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR036780 | TUBE - FUEL RETURN | $79.32 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR068074 | BRACKET - FUEL TUBE SUPPORT | $31.83 | To Order |
|
LR082760 | BRACKET - FUEL TUBE SUPPORT | $11.19 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR055689 | TUBE - FUEL SUPPLY AND VAPOUR | $281.28 | To Order |
|
LR062453 | TUBE - FUEL SUPPLY AND VAPOUR | $402.13 | To Order |
|
LR072676 | TUBE - FUEL SUPPLY AND VAPOUR | $332.92 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR138403 | BRACKET - CONTROL MODULE | $10.64 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR023043 | PUMP - FUEL | $372.39 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR038431 | PUMP - FUEL | $658.26 | To Order |
| # | Part Details | Price (each) |
Qty on Diagram |
Add to Cart |
|---|---|---|---|---|
| HN1 |
FN106046 NUT - HEX. Hexagonal Head, M6 IN STOCK |
$1.47 | 2 | |
| HS1 |
RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30 |
$4.21 | 2 | |
| HS2 |
FS106166 SCREW Hexagonal Head, M6 X 16MM IN STOCK |
$1.24 | 2 | |
| HT1 |
LR071705 STUD M6 X 20 + M6 X 16 |
$4.12 | 1 | |
| 7A229 |
LR023066 BRACKET - FUEL PUMP For Fuel Pump |
$7.04 | 2 | |
| 9C407A |
LR023043 PUMP - FUEL |
$372.39 | 1 | |
| 9C407B |
LR038431 PUMP - FUEL With Connection Tubes And Fixings |
$658.26 | 1 | |
| 9J296 |
LR036780 TUBE - FUEL RETURN From Fuel Cooler To Fuel Tank |
$79.32 | 1 | |
| 9N944 |
LR068074 BRACKET - FUEL TUBE SUPPORT To: GA999999 |
$31.83 | 1 | |
| 9N944 |
LR082760 BRACKET - FUEL TUBE SUPPORT From: HA000001 |
$11.19 | 1 | |
| 9S284 |
LR055689 TUBE - FUEL SUPPLY AND VAPOUR Rear, Set Of 2 Pieces / To: EA362928 |
$281.28 | 1 | |
| 9S284 |
LR062453 TUBE - FUEL SUPPLY AND VAPOUR Rear, Set Of 2 Pieces / From: EA362929 / To: EA390189 |
$402.13 | 1 | |
| 9S284 |
LR072676 TUBE - FUEL SUPPLY AND VAPOUR Rear, Set Of 2 Pieces / From: EA390190 |
$332.92 | 1 | |
| 12A659 |
LR138403 BRACKET - CONTROL MODULE To Body |
$10.64 | 1 |
Haven't found what you're looking for?

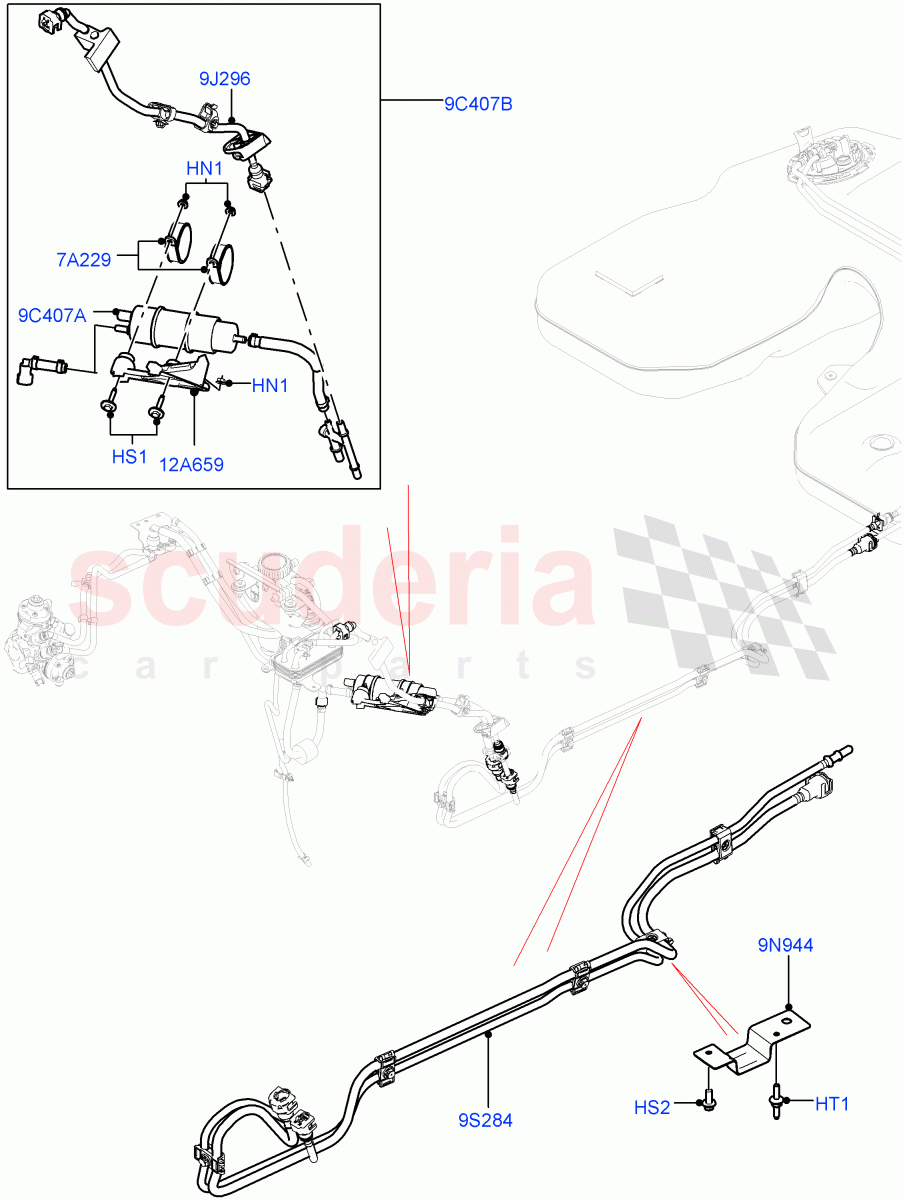

![Fuel Lines (Rear) (4.4L DOHC DITC V8 Diesel) of Land Rover Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]](/images/diagrams/landrover/GBRSTCGAJK7BJJ4FVQ8X.gif)
