Turbocharger (Lh Side - Secondary) (4.4L Dohc Ditc V8 Diesel)

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] - Turbocharger (LH Side - Secondary) (4.4L DOHC DITC V8 Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR023104 BOLT $1.16 To Order
Photo Part No Description Price (each) Stock
LR014200 BOLT - HEX.HEAD $1.09 To Order
LR113014 BOLT - HEX.HEAD $0.99 To Order
LR105437 BOLT - HEX.HEAD $0.87 To Order
Photo Part No Description Price (each) Stock
QYG500090 BOLT - HEX.HEAD $0.59 To Order
Photo Part No Description Price (each) Stock
LR038607 NUT $4.84 IN STOCK
Photo Part No Description Price (each) Stock
FN106042 NUT $1.03 IN STOCK
Photo Part No Description Price (each) Stock
TYP500030 SCREW $1.07 To Order
Photo Part No Description Price (each) Stock
WYP000025 SCREW $2.96 To Order
Photo Part No Description Price (each) Stock
4408651 SCREW $1.27 To Order
Photo Part No Description Price (each) Stock
LR004104 SCREW $3.32 To Order
Photo Part No Description Price (each) Stock
FS108166M SCREW $1.51 To Order
Photo Part No Description Price (each) Stock
LR000622 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
KYP500360 SCREW $0.79 To Order
Photo Part No Description Price (each) Stock
LR113358 STUD $4.44 To Order
LR113358 STUD $4.44 To Order
Photo Part No Description Price (each) Stock
LR022788 PIPE - OIL FEED $44.42 To Order
LR066523 PIPE - OIL FEED $102.51 To Order
Photo Part No Description Price (each) Stock
LR044563 TURBOCHARGER $3,212.69 To Order
Photo Part No Description Price (each) Stock
LR022742 GASKET - OIL TUBE $7.45 To Order
Photo Part No Description Price (each) Stock
LR050536 HEAT SHIELD - TURBOCHARGER $141.88 To Order
Photo Part No Description Price (each) Stock
LR032136 CLAMP - HOSE $9.54 To Order
Photo Part No Description Price (each) Stock
LR027196 KIT - TURBINE SHUT OFF VALVE $1,138.12 To Order
LR066428 KIT - TURBINE SHUT OFF VALVE $909.72 To Order
Photo Part No Description Price (each) Stock
LR057901 TUBE - DRAIN $279.88 To Order
Photo Part No Description Price (each) Stock
LR022792 BRACKET - TURBOCHARGER $19.93 To Order
Photo Part No Description Price (each) Stock
LR022793 BRACKET - TURBOCHARGER $11.89 To Order
Photo Part No Description Price (each) Stock
LR027017 BRACKET - TURBOCHARGER $14.67 To Order
View All

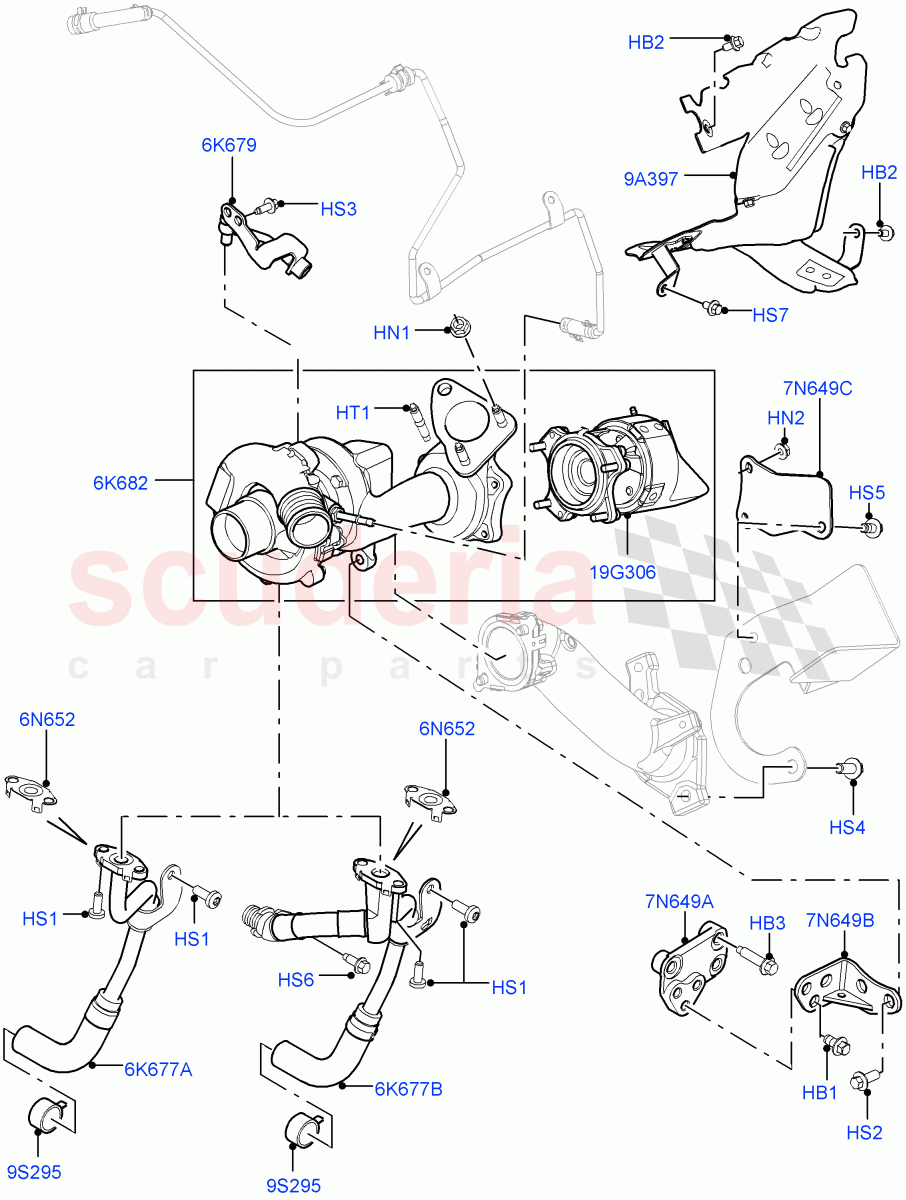

Turbocharger (LH Side - Secondary) (4.4L DOHC DITC V8 Diesel) of Land Rover Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR023104
BOLT
HEX Flange, M8 X 16MM, Turbocharger Bracket 		$1.16 3
HB2 LR014200
BOLT - HEX.HEAD
Heat Shield, Hexagonal Head, M6 X 10MM / To: HA166615 		$1.09 3
HB2 LR113014
BOLT - HEX.HEAD
Heat Shield, Hexagonal Head, M6 x 11.5MM / From: JA187779 		$0.99 3
HB2 LR105437
BOLT - HEX.HEAD
Heat Shield, Hexagonal Head, M6 X 8MM / From: HA166616 / To: JA187778 		$0.87 3
HB3 QYG500090
BOLT - HEX.HEAD
Hexagonal Head, M8 X 30, Turbocharger Bracket 		$0.59 3
HN1 LR038607
NUT
Exhaust Manifold, HEX Flange, M8
IN STOCK 		$4.84 3
HN2 FN106042
NUT
HEX Flange, Hexagonal Head, M6
IN STOCK 		$1.03 2
HS1 TYP500030
SCREW
M6 X 16MM, Torx, Tube - Oil Return 		$1.07 3
HS2 WYP000025
SCREW
Hexagonal Head, M8 X 20MM, Turbocharger Bracket 		$2.96 2
HS3 4408651
SCREW
HEX Flange, M6 X 14MM, Oil Tube Bracket 		$1.27 2
HS4 LR004104
SCREW
HEX Flange, M10 X 25MM 		$3.32 2
HS5 FS108166M
SCREW
HEX Flange, M8 X 16MM 		$1.51 1
HS6 LR000622
SCREW
M6 x 12MM 		$0.61 1
HS7 KYP500360
SCREW
HEX Flange, M6 X 20MM 		$0.79 1
HT1 LR113358
STUD
M8 X 16MM, M8 x 8MM / To: GA999999 		$4.44 3
HT1 LR113358
STUD
M8 X 16MM, M8 x 8MM / From: HA000001 		$4.44 3
6K677B LR057901
TUBE - DRAIN
LH, With Gasket 		$279.88 1
6K679 LR022788
PIPE - OIL FEED
LH / To: EA999999 		$44.42 1
6K679 LR066523
PIPE - OIL FEED
LH / From: FA000001 		$102.51 1
6K682 LR044563
TURBOCHARGER
LH, Connection Between Turbocharger And Exhaust Manifold Does Not Require Gasket, Secondary 		$3,212.69 1
6N652 LR022742
GASKET - OIL TUBE
Tube - Oil Return 		$7.45 1
7N649A LR022792
BRACKET - TURBOCHARGER
Turbocharger 		$19.93 1
7N649B LR022793
BRACKET - TURBOCHARGER
Turbocharger 		$11.89 1
7N649C LR027017
BRACKET - TURBOCHARGER
Downpipe 		$14.67 1
9A397 LR050536
HEAT SHIELD - TURBOCHARGER
LH, Turbocharger 		$141.88 1
9S295 LR032136
CLAMP - HOSE
Oil Return 		$9.54 1
19G306 LR027196
KIT - TURBINE SHUT OFF VALVE
Service Kit, Turbine Shut Off Valve / To: EA999999 		$1,138.12 1
19G306 LR066428
KIT - TURBINE SHUT OFF VALVE
Service Kit, Turbine Shut Off Valve / From: FA000001 		$909.72 1
