Name: Exhaust System (Front) (4.4L DOHC DITC V8 Diesel, Stage V Plus DPF, Proconve L6 Emissions) ((V) FROMGA000001)
Rating: 4.5 (1 reviews)

View All

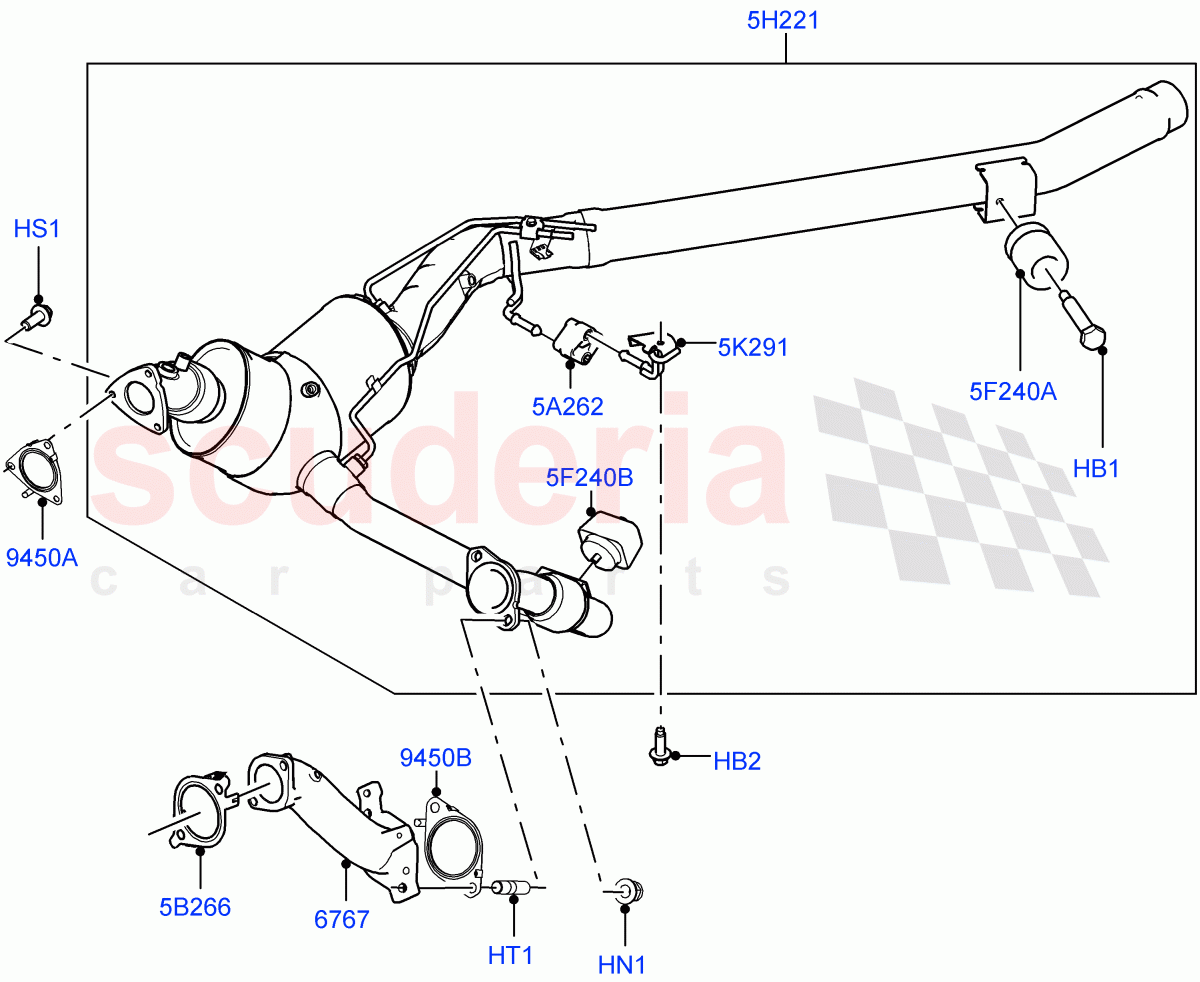

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	WYG500060	BOLT	$2.64	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025680	M10 FLANGED HEX NUT	$8.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WYP000025	SCREW	$2.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LYR500010	STUD	$6.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044349	ELBOW - EXHAUST MANIFOLD	$1,186.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025064	INSULATOR - RUBBER	$29.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022779	GASKET - EXHAUST PIPE	$8.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071094	FILTER - DIESEL PARTICLE	$3,699.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071726	BRACKET - EXHAUST PIPE MOUNTING	$34.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079223	GASKET - EXHAUST MANIFOLD	$15.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079224	GASKET - EXHAUST MANIFOLD	$17.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043280	DAMPER - DAMPING MASS	$120.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043732	DAMPER - DAMPING MASS	$63.58	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	WYG500060	BOLT	WYG500060 BOLT M8 X 70 - 8.8, Self Locking	$2.64	3
HB2	RYG500440	BOLT	RYG500440 BOLT Hexagonal Head, M8 X 20MM	$1.03	1
HN1	LR025680	M10 FLANGED HEX NUT IN STOCK	LR025680 M10 FLANGED HEX NUT M10 IN STOCK	$8.00	2
HS1	WYP000025	SCREW	WYP000025 SCREW Hexagonal Head, M8 X 20MM	$2.96	3
HT1	LYR500010	STUD	LYR500010 STUD M10 x 13MM, M10 X 20MM	$6.35	2
5A262	LR025064	INSULATOR - RUBBER	LR025064 INSULATOR - RUBBER	$29.67	1
5B266	LR022779	GASKET - EXHAUST PIPE	LR022779 GASKET - EXHAUST PIPE Elbow Connector	$8.12	1
5F240A	LR043280	DAMPER - DAMPING MASS	LR043280 DAMPER - DAMPING MASS Rear	$120.31	1
5F240B	LR043732	DAMPER - DAMPING MASS	LR043732 DAMPER - DAMPING MASS Front	$63.58	1
5H221	LR071094	FILTER - DIESEL PARTICLE	LR071094 FILTER - DIESEL PARTICLE Complete Assembly	$3,699.69	1
5K291	LR071726	BRACKET - EXHAUST PIPE MOUNTING	LR071726 BRACKET - EXHAUST PIPE MOUNTING Middle	$34.17	1
6767	LR044349	ELBOW - EXHAUST MANIFOLD	LR044349 ELBOW - EXHAUST MANIFOLD LH, Exhaust Manifold	$1,186.64	1
9450A	LR079223	GASKET - EXHAUST MANIFOLD	LR079223 GASKET - EXHAUST MANIFOLD RH, Downpipe	$15.83	1
9450B	LR079224	GASKET - EXHAUST MANIFOLD	LR079224 GASKET - EXHAUST MANIFOLD LH, Downpipe	$17.30	1

Exhaust System (Front) (4.4L Dohc Ditc V8 Diesel, Stage V Plus Dpf, Proconve L6 Emissions) ((V)...

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]
