Oil Pan/Oil Level Indicator (4.4L Dohc Ditc V8 Diesel)

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] - Oil Pan/Oil Level Indicator (4.4L DOHC DITC V8 Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1225745 BOLT AND WASHER - HEX.HEAD $2.96 IN STOCK
Photo Part No Description Price (each) Stock
1419374 BOLT $4.15 To Order
Photo Part No Description Price (each) Stock
1310106 BOLT - HEX.HEAD $3.08 To Order
Photo Part No Description Price (each) Stock
LR096214 RING - SEALING $7.87 To Order
Photo Part No Description Price (each) Stock
KYP500360 SCREW $0.79 To Order
Photo Part No Description Price (each) Stock
4540794 SCREW $1.59 To Order
Photo Part No Description Price (each) Stock
SYP500070 BOLT - FLANGED HEX. $1.44 To Order
Photo Part No Description Price (each) Stock
LR094141 GASKET - OIL PAN $114.24 IN STOCK
LR094141 GASKET - OIL PAN $114.24 IN STOCK
Photo Part No Description Price (each) Stock
LR022900 DOWEL $6.80 To Order
Photo Part No Description Price (each) Stock
LR035120 TUBE - OIL PUMP INLET $225.76 To Order
Photo Part No Description Price (each) Stock
LR096523 PAN - ENGINE OIL $2,005.95 To Order
LR082698 PAN - ENGINE OIL $1,811.59 To Order
LR088997 PAN - ENGINE OIL $1,314.96 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR035122 GASKET - SCAVENGER PIPE $21.08 To Order
Photo Part No Description Price (each) Stock
LR073675 PLUG - OIL DRAIN $8.35 To Order
Photo Part No Description Price (each) Stock
LR086422 RETAINER - OIL PAN $15.27 To Order
Photo Part No Description Price (each) Stock
LR012640 SENSOR - OIL LEVEL $89.12 To Order
Photo Part No Description Price (each) Stock
LR038621 COVER AND TUBE - SCAVENGE RESERVOIR $271.91 To Order
Photo Part No Description Price (each) Stock
LR023016 BOLT $0.91 To Order
Photo Part No Description Price (each) Stock
LR052352 TUBE - OIL $260.02 To Order
LR125945 TUBE - OIL $302.87 To Order
Photo Part No Description Price (each) Stock
LR035123 WIRE - OIL LEVEL SENSOR $65.01 To Order
LR088999 LEAD - OIL LEVEL SENSOR $58.33 To Order
View All

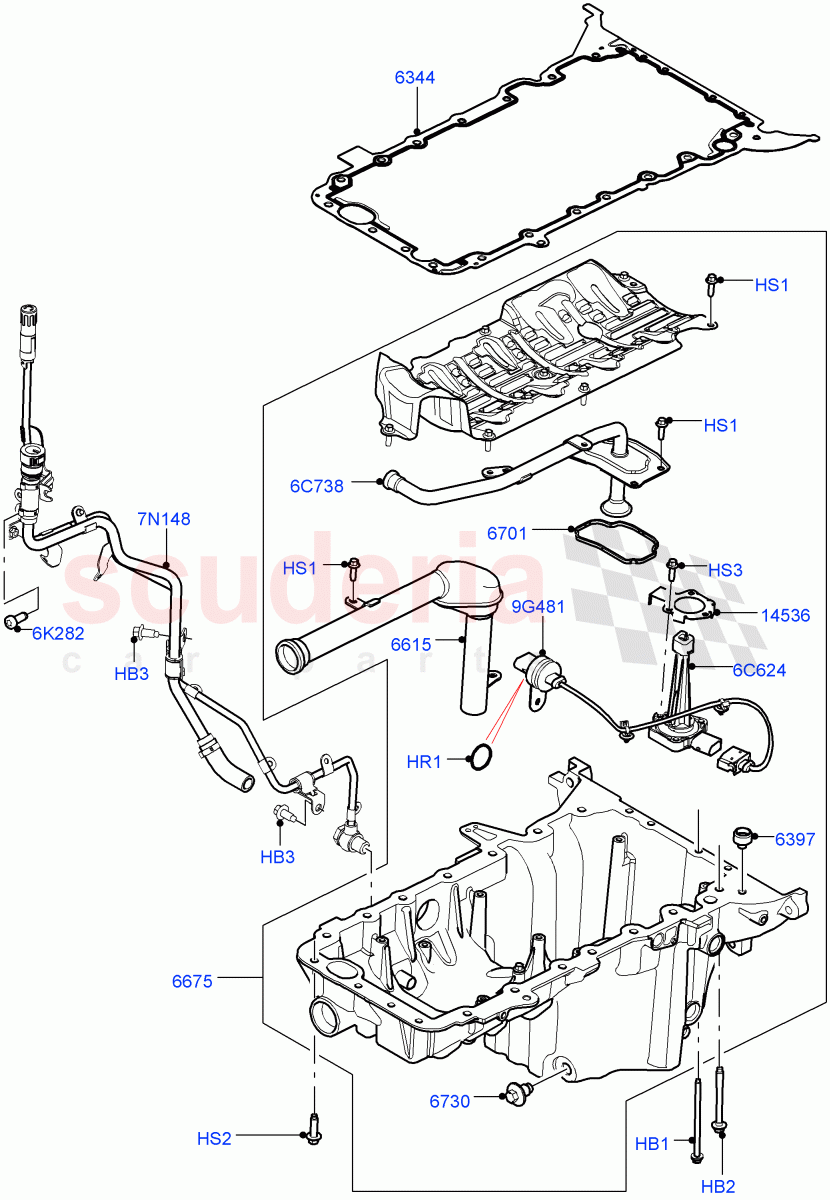

Oil Pan/Oil Level Indicator (4.4L DOHC DITC V8 Diesel) of Land Rover Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 1225745
BOLT AND WASHER - HEX.HEAD
Bolt And Washer, M6 X 105MM
IN STOCK 		$2.96 4
HB2 1419374
BOLT
M8 X 75MM 		$4.15 1
HB3 1310106
BOLT - HEX.HEAD
HEX Flange, M8 X 14MM 		$3.08 2
HR1 LR096214
RING - SEALING
Wiring Connector 		$7.87 2
HS1 KYP500360
SCREW
M6 X 20MM 		$0.79 19
HS2 4540794
SCREW
M8 X 25MM, Oil Pan 		$1.59 15
HS3 SYP500070
BOLT - FLANGED HEX.
HEX Flange, M6 x 30MM, Sensor - Oil Level 		$1.44 3
6C624 LR012640
SENSOR - OIL LEVEL 		$89.12 1
6C738 LR038621
COVER AND TUBE - SCAVENGE RESERVOIR 		$271.91 1
6K282 LR023016
BOLT
M10 X 20MM 		$0.91 1
7N148 LR052352
TUBE - OIL
Scavenger Pipe, Tube - Oil Extraction / To: KA833748 		$260.02 1
7N148 LR125945
TUBE - OIL
Scavenger Pipe, Tube - Oil Extraction / From: KA833749 		$302.87 1
9G481 LR035123
WIRE - OIL LEVEL SENSOR
Sensor - Oil Level / To: FA541964 		$65.01 1
9G481 LR088999
LEAD - OIL LEVEL SENSOR
Sensor - Oil Level / From: FA541965 		$58.33 1
6344 LR094141
GASKET - OIL PAN
Oil Pan / To: FA999999
IN STOCK 		$114.24 1
6344 LR094141
GASKET - OIL PAN
Oil Pan / From: GA000001
IN STOCK 		$114.24 1
6397 LR022900
DOWEL
Oil Pan 		$6.80 2
6615 LR035120
TUBE - OIL PUMP INLET 		$225.76 1
6675 LR096523
PAN - ENGINE OIL
To: FA541942 		$2,005.95 1
6675 LR082698
PAN - ENGINE OIL
From: FA541943 / To: GA555399 		$1,811.59 1
6675 LR088997
PAN - ENGINE OIL
From: GA555400 / To: HA138489 		$1,314.96 1
6675 LR096523
PAN - ENGINE OIL
From: HA138490 		$2,005.95 1
6701 LR035122
GASKET - SCAVENGER PIPE
Cover Scavenge Reservoir 		$21.08 1
6730 LR073675
PLUG - OIL DRAIN
M14 X 1.5 		$8.35 1
14536 LR086422
RETAINER - OIL PAN
Sensor - Oil Level 		$15.27 1
