Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] - Vacuum Control And Air Injection (4.4L DOHC DITC V8 Diesel, RHD) ((V) TOGA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR020696 NUT - ADJUSTING $1.54 To Order
Photo Part No Description Price (each) Stock
RYG500190 SCREW $0.73 IN STOCK
Photo Part No Description Price (each) Stock
LR020697 SCREW $2.89 To Order
Photo Part No Description Price (each) Stock
LR022998 STUD $6.48 To Order
Photo Part No Description Price (each) Stock
LR083155 LR083155 $375.91 IN STOCK
LR083155 LR083155 $375.91 IN STOCK
Photo Part No Description Price (each) Stock
LR022842 GASKET - VACUUM PUMP $12.69 To Order
LR082928 GASKET - VACUUM PUMP $16.60 To Order
Photo Part No Description Price (each) Stock
LR036071 PIPE - VAC CONTROL TO TURBO VALVE $162.62 To Order
Photo Part No Description Price (each) Stock
LR036072 PIPE - VAC CONTROL TO TURBO VALVE $162.62 To Order
Photo Part No Description Price (each) Stock
LR076025 HOSE - VACUUM CONTROL HARNESS $351.54 To Order
LR076025 HOSE - VACUUM CONTROL HARNESS $351.54 To Order
Photo Part No Description Price (each) Stock
LR022849 HOSE - VACUUM CONTROL HARNESS $602.11 To Order
Photo Part No Description Price (each) Stock
LR048192 HOSE - VACUUM $42.71 To Order
LR067249 HOSE - VACUUM $60.96 To Order
Photo Part No Description Price (each) Stock
LR048195 MANIFOLD - VACUUM SUPPLY $60.66 IN STOCK
Photo Part No Description Price (each) Stock
LR022843 CLIP - WIRING $18.91 To Order
Photo Part No Description Price (each) Stock
LR022844 CLIP - WIRING $18.91 To Order
Photo Part No Description Price (each) Stock
LR021921 CLIP - WIRING $20.64 To Order
Photo Part No Description Price (each) Stock
LR022964 RETAINER - VACUUM HOSE $0.35 To Order
Photo Part No Description Price (each) Stock
LR022966 RETAINER - VACUUM HOSE $1.05 To Order
View All

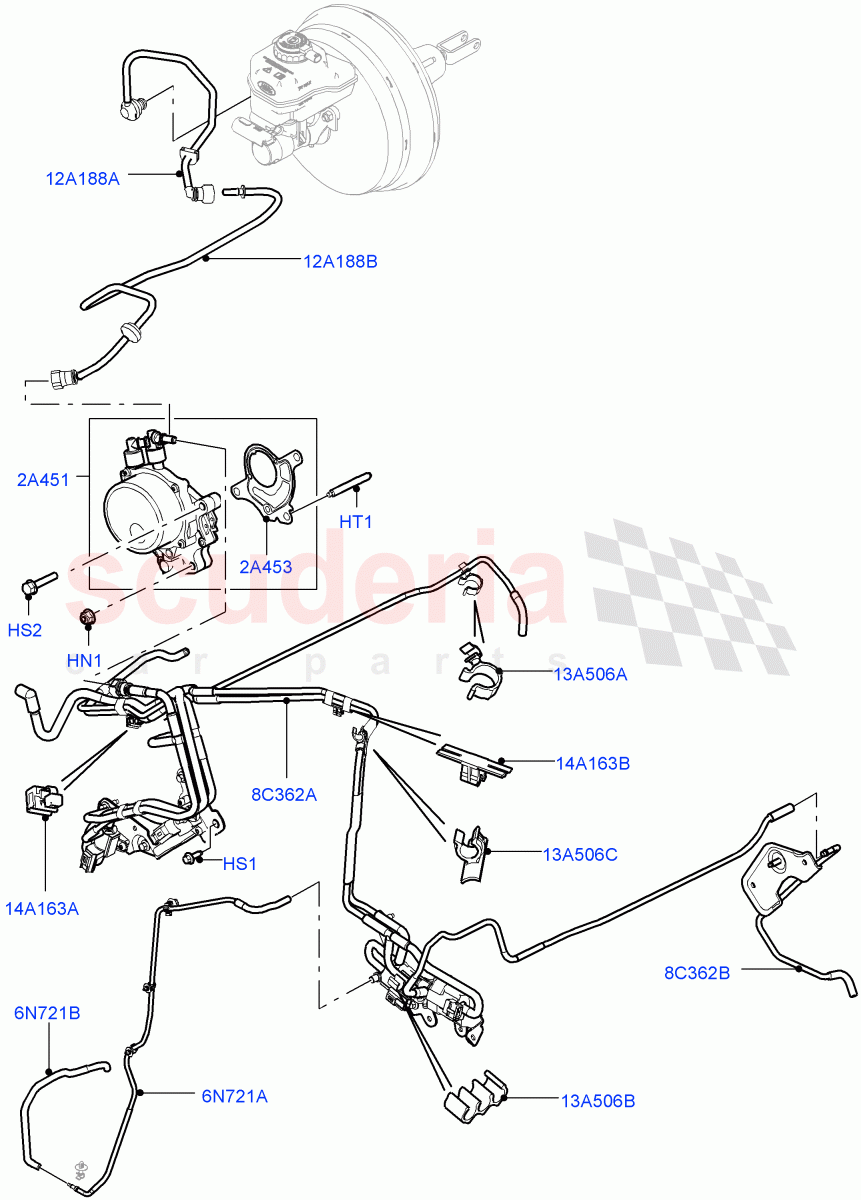

Vacuum Control And Air Injection (4.4L DOHC DITC V8 Diesel, RHD) ((V) TOGA999999) of Land Rover Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 LR020696
NUT - ADJUSTING
M8, To Vacuum Pump 		$1.54 1
HS1 RYG500190
SCREW
Bracket, Hexagonal Head, M6 X 16MM, Main Vacuum Harness
IN STOCK 		$0.73 8
HS2 LR020697
SCREW
M8 x 40MM, To Vacuum Pump 		$2.89 2
HT1 LR022998
STUD
To Vacuum Pump 		$6.48 1
2A451 LR083155
LR083155
To: FA999999
IN STOCK 		$375.91 1
2A451 LR083155
LR083155
From: GA000001
IN STOCK 		$375.91 1
2A453 LR022842
GASKET - VACUUM PUMP
To Vacuum Pump / To: FA541942 		$12.69 1
2A453 LR082928
GASKET - VACUUM PUMP
To Vacuum Pump / From: FA541943 		$16.60 1
6N721A LR036071
PIPE - VAC CONTROL TO TURBO VALVE
Compressed Air Recirculation And Shut Off Valve, Upper, Vacuum Control 		$162.62 1
6N721B LR036072
PIPE - VAC CONTROL TO TURBO VALVE
Compressed Air Recirculation And Shut Off Valve, Lower, Vacuum Control 		$162.62 1
8C362A LR076025
HOSE - VACUUM CONTROL HARNESS
Engine Vacuum Harness, Includes Valves, Vacuum Control Harness / To: FA999999 		$351.54 1
8C362A LR076025
HOSE - VACUUM CONTROL HARNESS
Engine Vacuum Harness, Includes Valves, Vacuum Control Harness / From: GA000001 		$351.54 1
8C362B LR022849
HOSE - VACUUM CONTROL HARNESS
Turbocharger, Vacuum 		$602.11 1
12A188A LR048192
HOSE - VACUUM
Standard Electric Starter Motor / To Brake Booster 		$42.71 1
12A188A LR067249
HOSE - VACUUM
Starter - Stop/Start System / Includes Vacuum Sensor, To Brake Booster / From: GA000001 		$60.96 1
12A188B LR048195
MANIFOLD - VACUUM SUPPLY
To Vacuum Pump
IN STOCK 		$60.66 1
13A506A LR022843
CLIP - WIRING
To Vacuum Hose 		$18.91 1
13A506B LR022844
CLIP - WIRING
Valve - Vacuum Control 		$18.91 1
13A506C LR021921
CLIP - WIRING
Main Vacuum Harness 		$20.64 1
14A163A LR022964
RETAINER - VACUUM HOSE
Main Vacuum Harness 		$0.35 1
14A163B LR022966
RETAINER - VACUUM HOSE
Main Vacuum Harness 		$1.05 1
