Name: Intercooler/Air Ducts And Hoses (Air Ducts And Hoses) (4.4L DOHC DITC V8 Diesel)
Rating: 5.0 (1 reviews)

Intercooler/Air Ducts And Hoses (Air Ducts And Hoses) (4.4L DOHC DITC V8 Diesel) of Land Rover Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] - Intercooler/Air Ducts And Hoses (Air Ducts And Hoses) (4.4L DOHC DITC V8 Diesel)

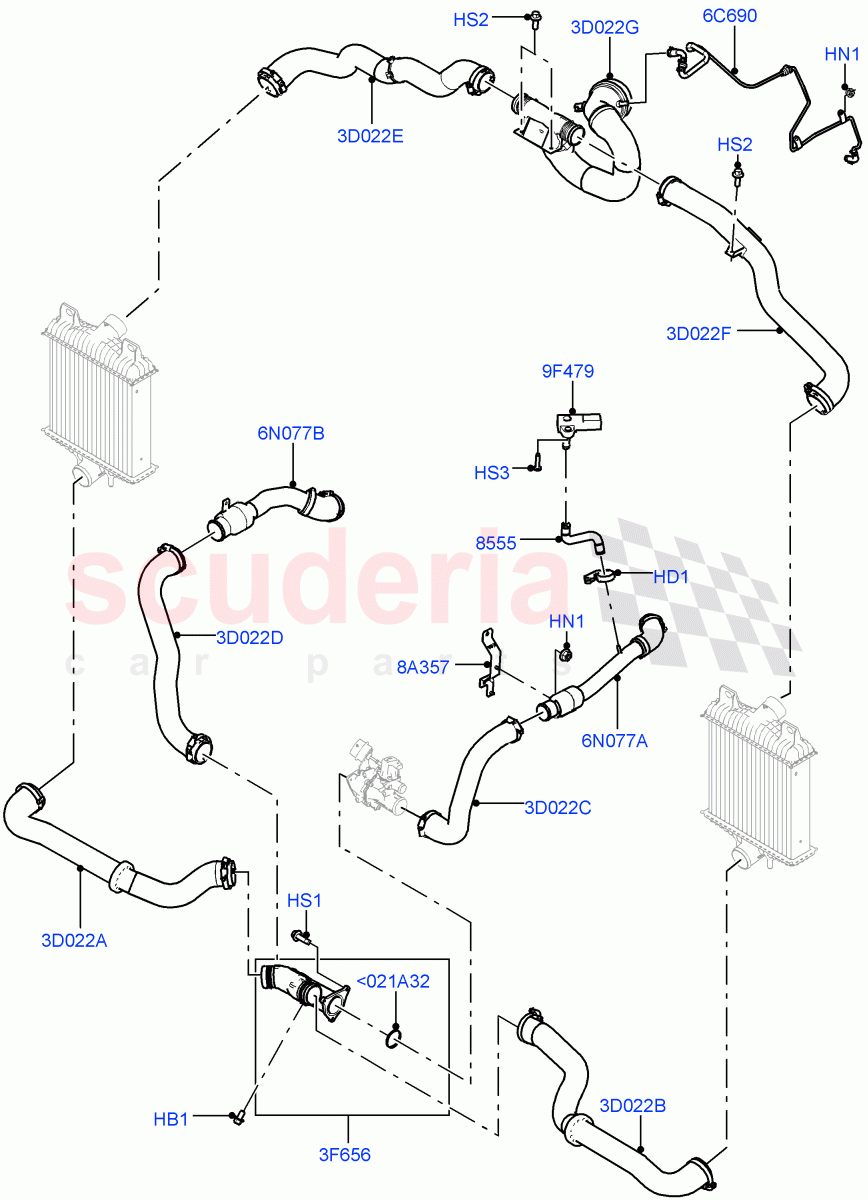

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106106	BOLT	$0.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016628	CLAMP - TUBE	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP500200	SCREW	$0.95	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	$1.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR018508	SCREW	$0.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035755	TUBE - SCOP SENSOR	$37.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057899	CONNECTOR - HOSE	$81.55	To Order
	LR062675	CONNECTOR - HOSE	$123.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035759	PIPE - TURBO BOOST	$87.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036490	BRACKET - TUBE	$10.53	To Order

Photo	Part No	Description	Price (each)	Stock
	C2D47313	SENSOR - AIR CHARGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060680	HOSE - COMPRESSED AIR	$221.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060674	HOSE - COMPRESSED AIR	$151.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR056337	HOSE - COMPRESSED AIR	$158.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060649	HOSE - COMPRESSED AIR	$126.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036476	HOSE - COMPRESSED AIR	$200.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036477	HOSE - COMPRESSED AIR	$131.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036484	HOSE - COMPRESSED AIR	$220.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR056329	TUBE - OUTLET	$140.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR056348	TUBE - OUTLET	$275.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036414	SEAL - H-PIECE - HP AIR DUCTS	$35.32	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<021A32	LR036414	SEAL - H-PIECE - HP AIR DUCTS	LR036414 SEAL - H-PIECE - HP AIR DUCTS H-Connector	$35.32	1
HB1	FS106106	BOLT	FS106106 BOLT Hexagonal Head, M6 X 10MM	$0.92	1
HD1	LR016628	CLAMP - TUBE	LR016628 CLAMP - TUBE Hose Clamp, Secondary Compressor Outlet Pressure Sensor, Tube	$2.77	1
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 IN STOCK	$1.46	3
HS1	RYP500200	SCREW	RYP500200 SCREW Hexagonal Head, M6 X 20MM	$0.95	3
HS2	FS106166	SCREW IN STOCK	FS106166 SCREW Hexagonal Head, M6 X 16MM IN STOCK	$1.24	3
HS3	LR018508	SCREW	LR018508 SCREW M5 x 20MM, Torx	$0.96	1
3D022A	LR060680	HOSE - COMPRESSED AIR	LR060680 HOSE - COMPRESSED AIR RH, Intercooler Inlet, With Clamps	$221.21	1
3D022B	LR060674	HOSE - COMPRESSED AIR	LR060674 HOSE - COMPRESSED AIR LH, Intercooler Inlet, With Clamps	$151.80	1
3D022C	LR056337	HOSE - COMPRESSED AIR	LR056337 HOSE - COMPRESSED AIR Inlet, Shut Off Valve, With Clamps	$158.84	1
3D022D	LR060649	HOSE - COMPRESSED AIR	LR060649 HOSE - COMPRESSED AIR H-Connector, Inlet, With Clamps	$126.31	1
3D022E	LR036476	HOSE - COMPRESSED AIR	LR036476 HOSE - COMPRESSED AIR RH, Intercooler Outlet, With Clamps	$200.81	1
3D022F	LR036477	HOSE - COMPRESSED AIR	LR036477 HOSE - COMPRESSED AIR LH, Intercooler Outlet, With Clamps	$131.19	1
3D022G	LR036484	HOSE - COMPRESSED AIR	LR036484 HOSE - COMPRESSED AIR Intercooler To Throttle Body, With Clamps	$220.90	1
3F656	LR057899	CONNECTOR - HOSE	LR057899 CONNECTOR - HOSE H-Connector / To: EA379310	$81.55	1
3F656	LR062675	CONNECTOR - HOSE	LR062675 CONNECTOR - HOSE H-Connector / From: EA379311	$123.28	1
6C690	LR035759	PIPE - TURBO BOOST	LR035759 PIPE - TURBO BOOST	$87.43	1
6N077A	LR056329	TUBE - OUTLET	LR056329 TUBE - OUTLET LH, Turbocharger Outlet, With Clamps	$140.26	1
6N077B	LR056348	TUBE - OUTLET	LR056348 TUBE - OUTLET RH, Turbocharger Outlet, With Clamps	$275.93	1
8A357	LR036490	BRACKET - TUBE	LR036490 BRACKET - TUBE Tube, Turbocharger Outlet	$10.53	1
9F479	C2D47313	SENSOR - AIR CHARGE	C2D47313 SENSOR - AIR CHARGE Secondary Compressor Outlet Pressure Sensor	-	1	Enquire
8555	LR035755	TUBE - SCOP SENSOR	LR035755 TUBE - SCOP SENSOR Secondary Compressor Outlet Pressure Sensor	$37.53	1

Intercooler/Air Ducts And Hoses (Air Ducts And Hoses) (4.4L Dohc Ditc V8 Diesel)

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] - Intercooler/Air Ducts And Hoses (Air Ducts And Hoses) (4.4L DOHC DITC V8 Diesel)
