Name: Engine Mounting (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001)
Rating: 5.0 (1 reviews)

View All

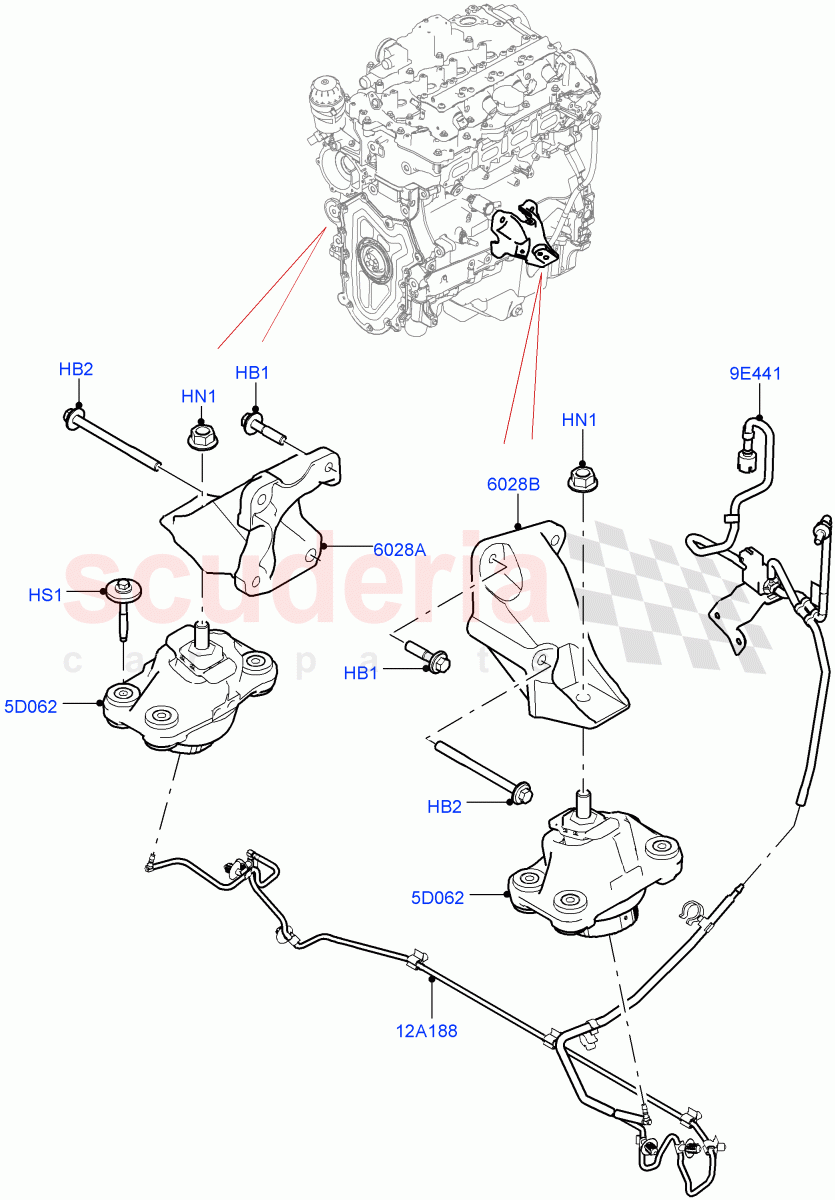

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011068	BOLT	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057599	BOLT AND WASHER - HEX.HEAD	$4.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095134	NUT	$0.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033201	SCREW	$3.72	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR081528	BRACKET - ENGINE FRONT SUPPORT	$406.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081529	BRACKET - ENGINE MOUNTING	$400.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR098751	SOLENOID - VACUUM CONTROL	$303.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR098749	HOSE - VACUUM	$84.95	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR011068	BOLT	LR011068 BOLT Bolt And Washer, M10 X 45 / From: JA000001	$2.77	6
HB2	LR057599	BOLT AND WASHER - HEX.HEAD	LR057599 BOLT AND WASHER - HEX.HEAD M10 X 122 / From: JA000001	$4.69	2
HN1	LR095134	NUT	LR095134 NUT M14 / From: JA000001	$0.97	2
HS1	LR033201	SCREW	LR033201 SCREW Hexagonal Head, M8 x 60MM / From: JA000001	$3.72	8
5D062	LR123913	BRACKET - ENGINE MOUNTING	LR123913 BRACKET - ENGINE MOUNTING 2.0L I4 High DOHC AJ200 Petrol / RH/LH / From: JA000001 / To: KA417553	$218.75	2
5D062	LR100608	BRACKET - ENGINE MOUNTING	LR100608 BRACKET - ENGINE MOUNTING 2.0L AJ200P Hi PHEV / RH/LH / From: JA000001 / To: KA417553	$207.12	2
5D062	LR123913	BRACKET - ENGINE MOUNTING	LR123913 BRACKET - ENGINE MOUNTING 2.0L I4 High DOHC AJ200 Petrol / RH/LH / From: KA417554	$218.75	2
5D062	LR123914	BRACKET - ENGINE MOUNTING	LR123914 BRACKET - ENGINE MOUNTING 2.0L AJ200P Hi PHEV / RH/LH / From: KA417554	$239.58	2
9E441	LR098751	SOLENOID - VACUUM CONTROL	LR098751 SOLENOID - VACUUM CONTROL From: JA000001	$303.74	1
12A188	LR098749	HOSE - VACUUM	LR098749 HOSE - VACUUM From: JA000001	$84.95	1
6028A	LR081528	BRACKET - ENGINE FRONT SUPPORT	LR081528 BRACKET - ENGINE FRONT SUPPORT RH / From: JA000001	$406.18	1
6028B	LR081529	BRACKET - ENGINE MOUNTING	LR081529 BRACKET - ENGINE MOUNTING LH / From: JA000001	$400.30	1

Engine Mounting (2.0L Aj200P Hi Phev, 2.0L I4 High Dohc Aj200 Petrol) ((V) Fromja000001)

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]
