Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Auto Trans Assy & Speedometer Drive (8HP Gen3 Hybrid Trans) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR092840 BOLT $2.20 To Order
Photo Part No Description Price (each) Stock
FB110156 BOLT - HEX.HEAD $2.69 IN STOCK
Photo Part No Description Price (each) Stock
LR105438 BOLT - HEX.HEAD $2.49 To Order
Photo Part No Description Price (each) Stock
LR017279 STUD $2.21 To Order
Photo Part No Description Price (each) Stock
LR101049 AUTOMATIC TRANSMISSION $14,844.10 To Order
LR118102 AUTOMATIC TRANSMISSION $14,369.89 To Order
LR125749 AUTOMATIC TRANSMISSION $13,994.48 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR102061 ADAPTOR PLATE - TRANSMISSION $361.95 To Order
Photo Part No Description Price (each) Stock
LR101043 INSULATOR - TRANSMISSION $202.95 To Order
Photo Part No Description Price (each) Stock
LR101046 TUBE - TRANSMISSION VENTILATION $244.86 To Order
LR116483 TUBE - TRANSMISSION VENTILATION $234.14 To Order
Photo Part No Description Price (each) Stock
LR106168 TUBE - TRANSMISSION VENTILATION $58.53 To Order
View All

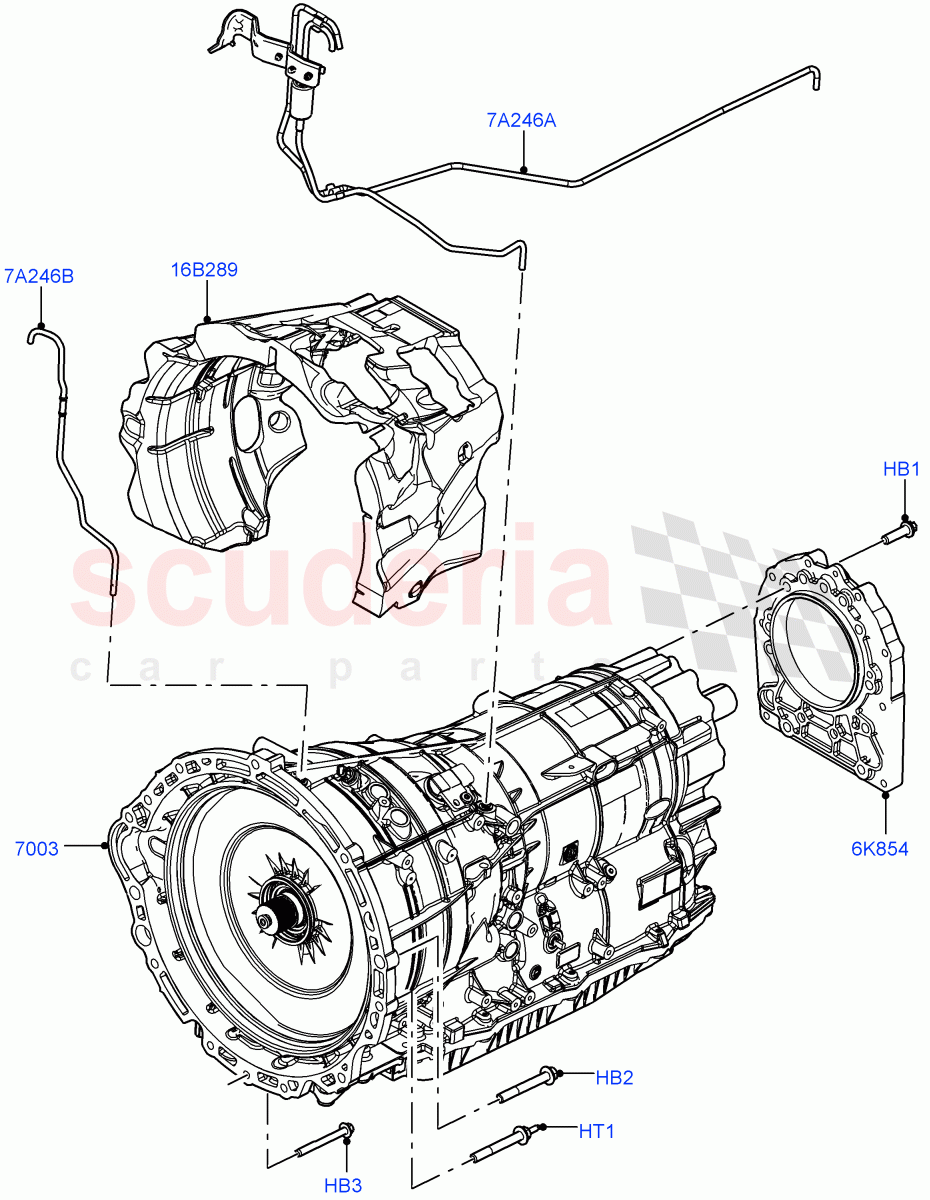

Auto Trans Assy & Speedometer Drive (8HP Gen3 Hybrid Trans) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR092840
BOLT
Adaptor Plate To Transmission, M10 x 35MM / From: JA000001 		$2.20 9
HB2 FB110156
BOLT - HEX.HEAD
Hexagonal Head, M10 x 75MM, Transmission To Engine / From: JA000001
IN STOCK 		$2.69 4
HB3 LR105438
BOLT - HEX.HEAD
M8 X 75MM, Transmission To Engine / From: JA000001 		$2.49 1
HT1 LR017279
STUD
M10 x 75MM, M6 X 16MM / From: JA000001 		$2.21 4
6K854 LR102061
ADAPTOR PLATE - TRANSMISSION
From: JA000001 		$361.95 1
7A246A LR101046
TUBE - TRANSMISSION VENTILATION
Gearbox, Includes Bracket, Transfer Box / From: JA000001 / To: KA817090 		$244.86 1
7A246A LR116483
TUBE - TRANSMISSION VENTILATION
Gearbox, Includes Bracket, Transfer Box / From: KA817091 		$234.14 1
7A246B LR106168
TUBE - TRANSMISSION VENTILATION
Gearbox / From: JA000001 		$58.53 1
16B289 LR101043
INSULATOR - TRANSMISSION
From: JA000001 		$202.95 1
7003 LR101049
AUTOMATIC TRANSMISSION
From: JA000001 / To: JA999999 		$14,844.10 1
7003 LR118102
AUTOMATIC TRANSMISSION
From: KA000001 / To: KA999999 		$14,369.89 1
7003 LR125749
AUTOMATIC TRANSMISSION
Includes Converter / From: LA714355 / To: LA799999 		$13,994.48 1
7003 LR118102
AUTOMATIC TRANSMISSION
From: LA800000 / To: LA899999 		$14,369.89 1
7003 LR118102
AUTOMATIC TRANSMISSION
From: LA700000 / To: LA714354 		$14,369.89 1
7003 LR125749
AUTOMATIC TRANSMISSION
Includes Converter / From: MA000001 / To: MA769543 		$13,994.48 1
7003 LR155137
AUTOMATIC TRANSMISSION
Includes Converter / From: MA769544 		$11,538.12 1
