Vacuum Control And Air Injection (Solihull Plant Build) (3.0L Dohc Gdi Sc V6 Petrol, Rhd) ((V)...

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Vacuum Control And Air Injection (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL, RHD) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000395 CLIP - DOUBLE $1.10 To Order
Photo Part No Description Price (each) Stock
LR049402 CLIP - DOUBLE $2.75 To Order
Photo Part No Description Price (each) Stock
LR060479 SCREW $4.32 To Order
Photo Part No Description Price (each) Stock
LR082226 PUMP - VACUUM $467.13 To Order
Photo Part No Description Price (each) Stock
LR012685 SEAL - VACUUM PUMP $20.88 To Order
Photo Part No Description Price (each) Stock
LR081631 SENSOR - VACUUM $88.99 To Order
Photo Part No Description Price (each) Stock
LR048194 HOSE - VACUUM $57.23 IN STOCK
Photo Part No Description Price (each) Stock
LR048193 HOSE - VACUUM $81.80 To Order
Photo Part No Description Price (each) Stock
LR081606 HOSE - VACUUM $109.16 To Order
Photo Part No Description Price (each) Stock
LR041668 HOSE - VACUUM $58.24 To Order
LR105285 HOSE - VACUUM $61.42 To Order
View All

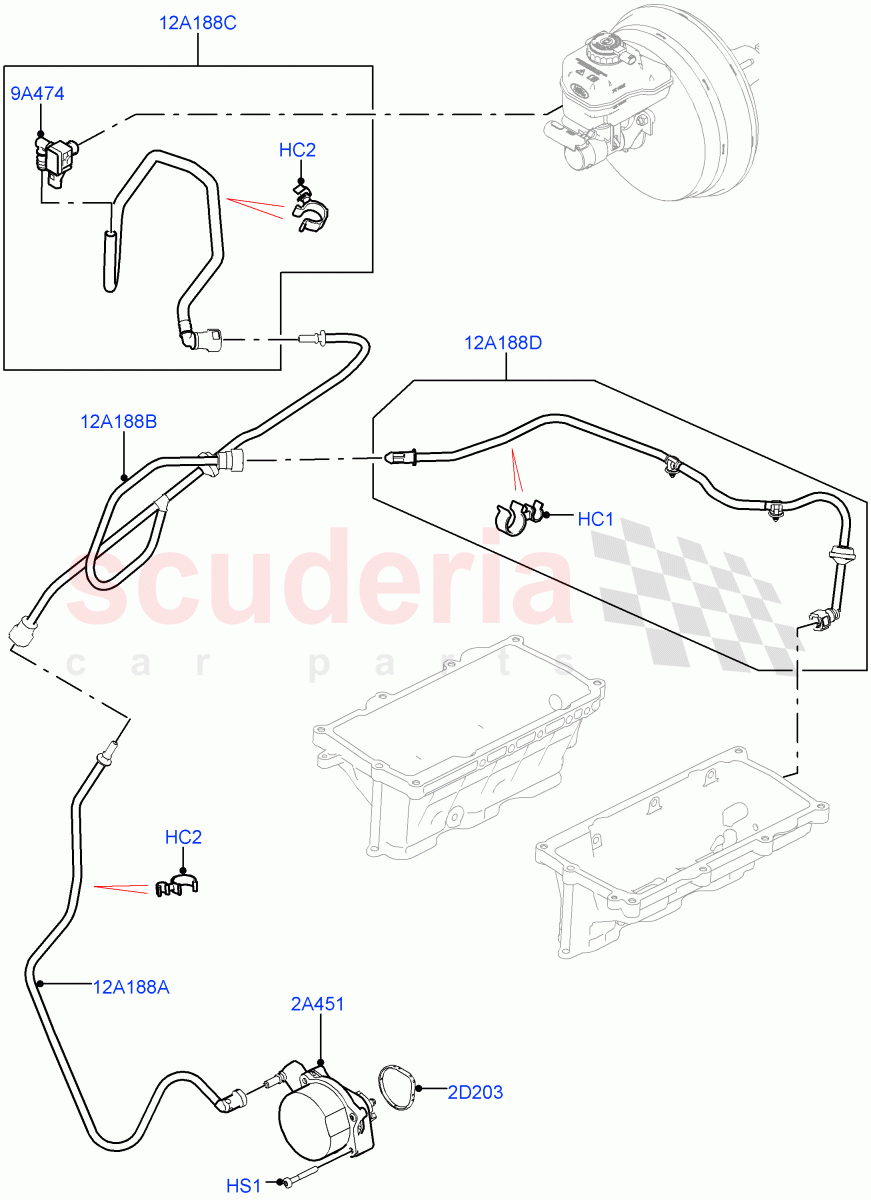

Vacuum Control And Air Injection (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL, RHD) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR000395
CLIP - DOUBLE
RH / From: HA000001 		$1.10 1
HC2 LR049402
CLIP - DOUBLE
Double, To Vacuum Hose / From: HA000001 		$2.75 4
HS1 LR060479
SCREW
M6 X 65MM, Pump - Vacuum / From: HA000001 		$4.32 2
2A451 LR082226
PUMP - VACUUM
From: HA000001 		$467.13 1
2D203 LR012685
SEAL - VACUUM PUMP
From: HA000001 		$20.88 1
9A474 LR081631
SENSOR - VACUUM
From: HA000001 		$88.99 1
12A188A LR048194
HOSE - VACUUM
Pump - Vacuum / From: HA000001
IN STOCK 		$57.23 1
12A188B LR048193
HOSE - VACUUM
Centre / From: HA000001 		$81.80 1
12A188C LR081606
HOSE - VACUUM
To Brake Booster / From: HA000001 		$109.16 1
12A188D LR041668
HOSE - VACUUM
Inlet Manifold / From: HA000001 / To: HA137530 		$58.24 1
12A188D LR105285
HOSE - VACUUM
Inlet Manifold / From: HA137531 		$61.42 1
